145 electrical system diagnosisCOMPONENTS AND CONNECTORS (cont.d)

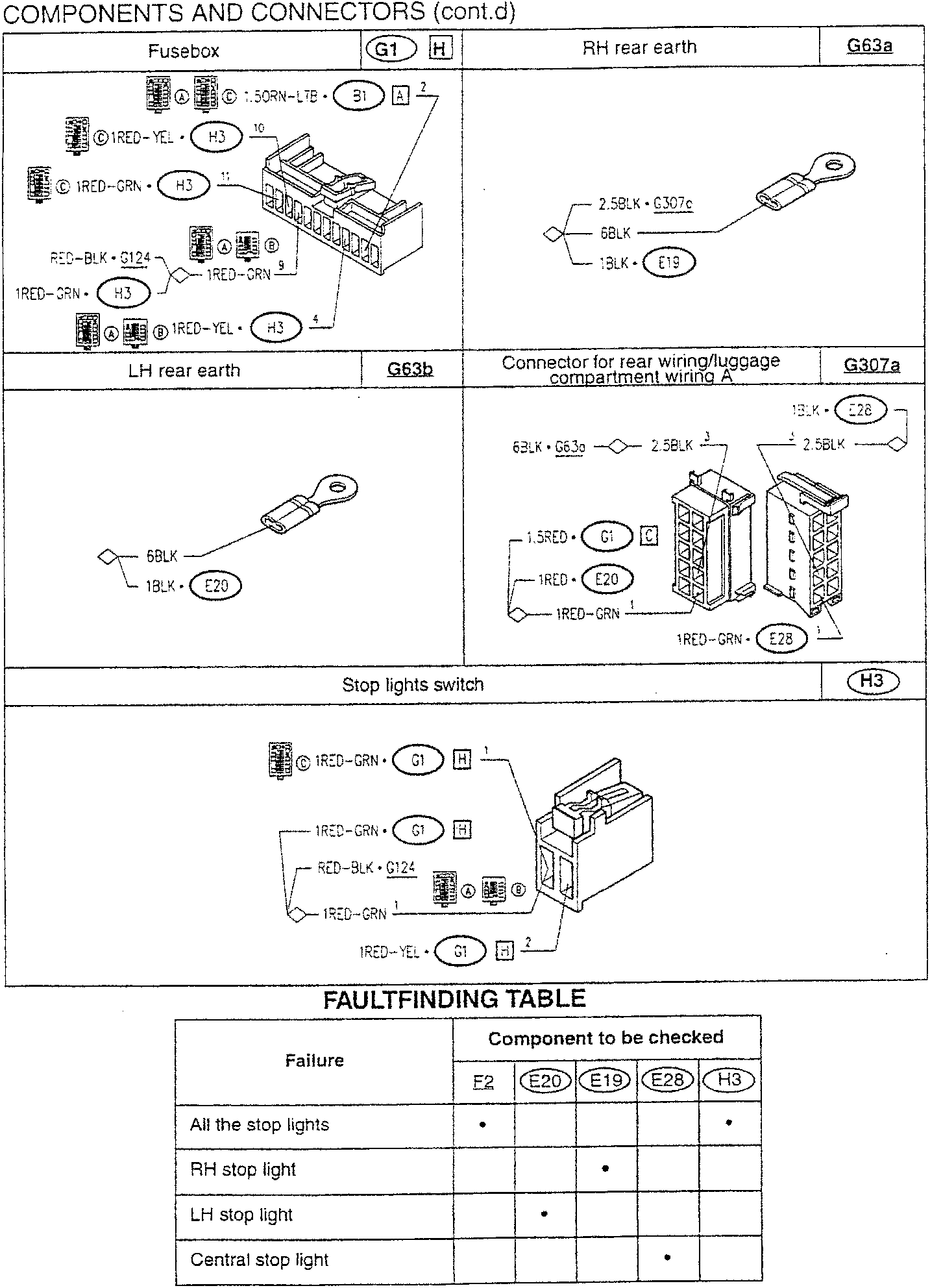

COMPONENTS AND CONNECTORS (cont.d)

Stop lights switch

  • RH rear earth – G63a
  • LH rear earth – G63b
  • Connector for rear wiring/luggage compartment wiring A – G307a
  • Component to be checked – F2
RH rear earth – G63a; LH rear earth – G63b; Connector for rear wiring/luggage compartment wiring A – G307a; Component to be checked – F2
