General description

GENERAL DESCRIPTION

The car stop lights are operated each time the brake pedal is pressed; they are located at the rear in the side lights. The lights are turned on automatically through the switch on the brake pedal.

The circuit is protected by a special fuse.

The braking signal from the switch is also sent to the ABS system control unit which "recognizes" the situation and controls braking accordingly (see "ABS").

N.B.: In the versions on which a radio is installed, an anti-disturbance condenser is fitted on the switch to prevent interference in the area of the actual switch.

FUNCTIONAL DESCRIPTION

The stop lights circuit is supplied directly by battery voltage via fuse F2 of fusebox G1 (box "A" and "B"). For box "C" it receives the "key-operated" supply via fuse F15 of box G1.

The stop lights switch H3 comprises a contact which closes when the brake pedal is pressed, through which the stop lights are supplied in the rear side lights E19 (right), E20 (left).

For certain Versions/Markets the third central stop light E28 is foreseen

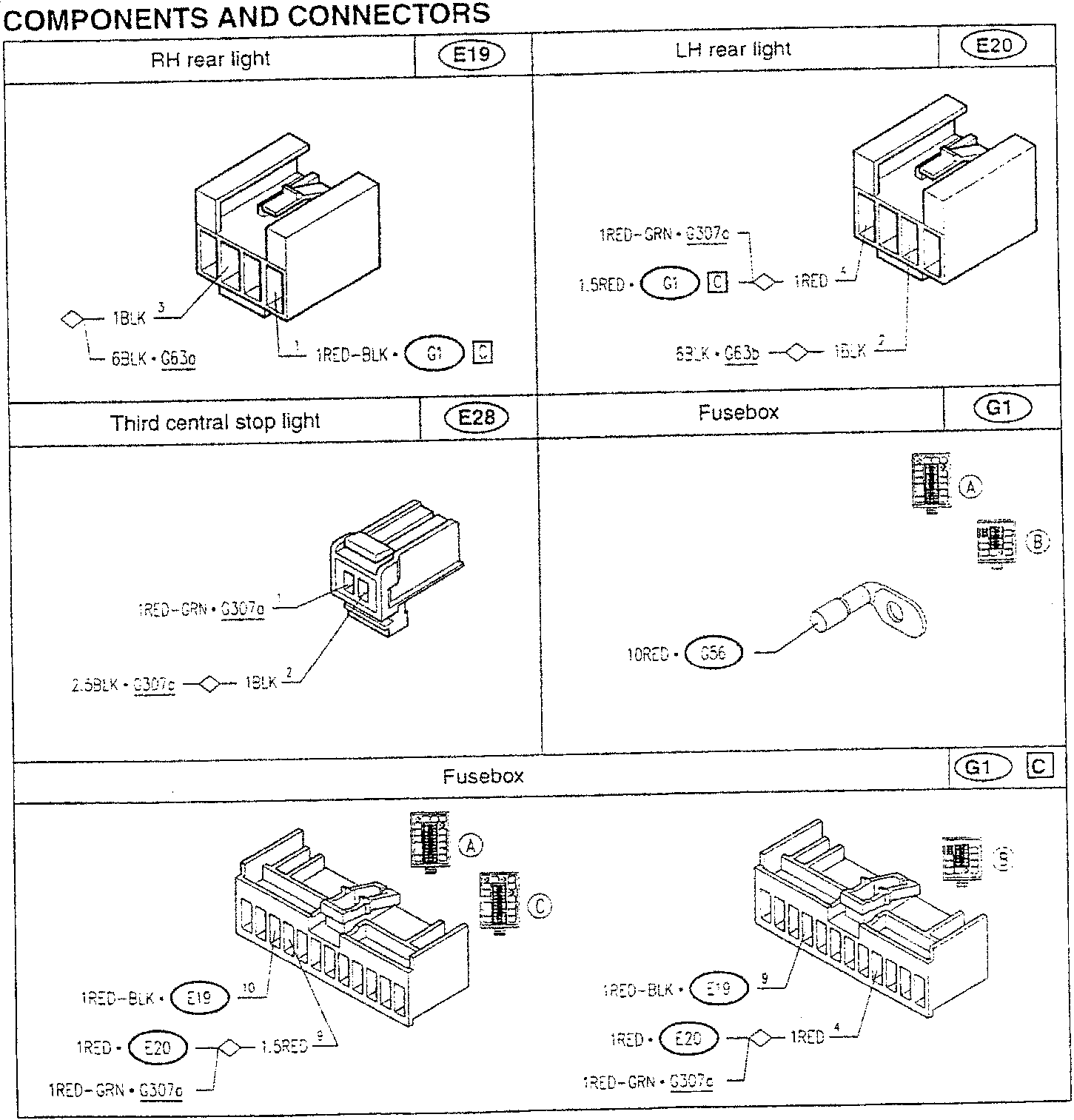

COMPONENTS AND CONNECTORS

RH rear light	E19	LH rear light	E20
	1BLK 3 6BLK • G63a 1RED-BLK • G1 C		1RED-GRN • G307a 1.5RED • G1 C 6BLK • G63b 1BLK 2
Third central stop light	E28	Fusebox	G1
	1RED-GRN • G307a 2.5BLK • G307c 1BLK 2		10RED • G56
Fusebox	G1 C		1RED-BLK • E19 1RED • E20 1RED-GRN • G307a
