FAULTFINDING TABLE

Failure	Component to be checked
	F15	P8	P9	B36
Wing mirror adjustment, under all circumstances	●			●
LH mirror adjustment		●		●
RH mirror adjustment			●	●
Switch illumination (with side lights on)				●

CHECKING COMPONENTS

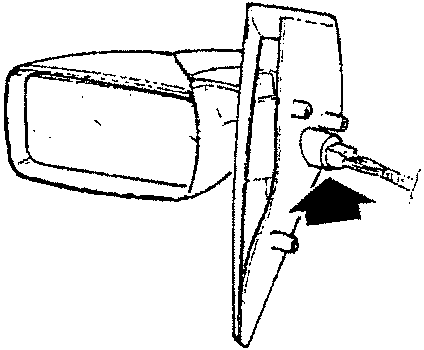

RH/LH wing mirror motors P8 P9

SPECIFICATIONS
rotation upwards	12V at pin C, earth at pin G
rotation downwards	12V at pin G, earth at pin C
rotation rightwards	12V at pin G, earth at pin H
rotation leftwards	12V at pin H, earth at pin G

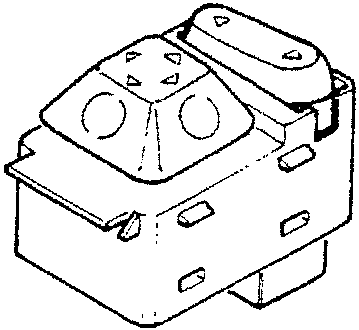

Double wing mirrors control switch B36

Checking the device: see test A
