146 electrical system diagnosisComponents and connectors

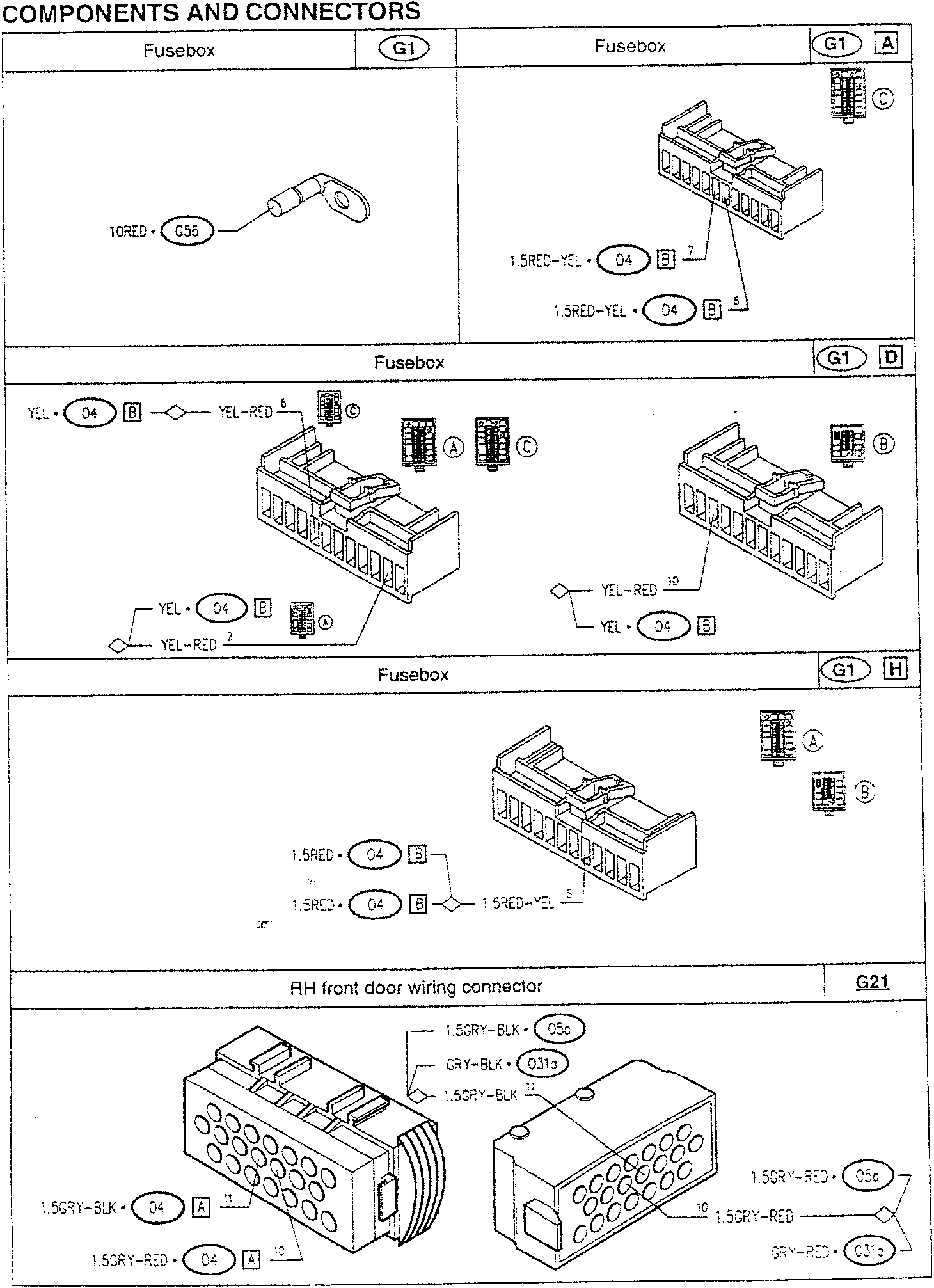

COMPONENTS AND CONNECTORS

Fusebox	G1	Fusebox	G1 A
10RED • G56		1.5RED-YEL • 04 B 7	1.5RED-YEL • 04 B 6

Fusebox	G1 D
YEL • 04 B — YEL-RED 8	YEL-RED 10
YEL • 04 B	YEL • 04 B
YEL-RED 2

Fusebox	G1 H
1.5RED • 04 B	1.5RED-YEL 5
1.5RED • 04 B

RH front door wiring connector	G21
1.5GRY-BLK • 04 A 11	1.5GRY-RED • 04 A 10
1.5GRY-BLK • 05c	1.5GRY-RED • 05a
GRY-BLK • 031a	GRY-RED • 031a
1.5GRY-BLK 11	1.5GRY-RED 10
