146 electrical system diagnosisCOMPONENTS AND CONNECTORS (cont.d)

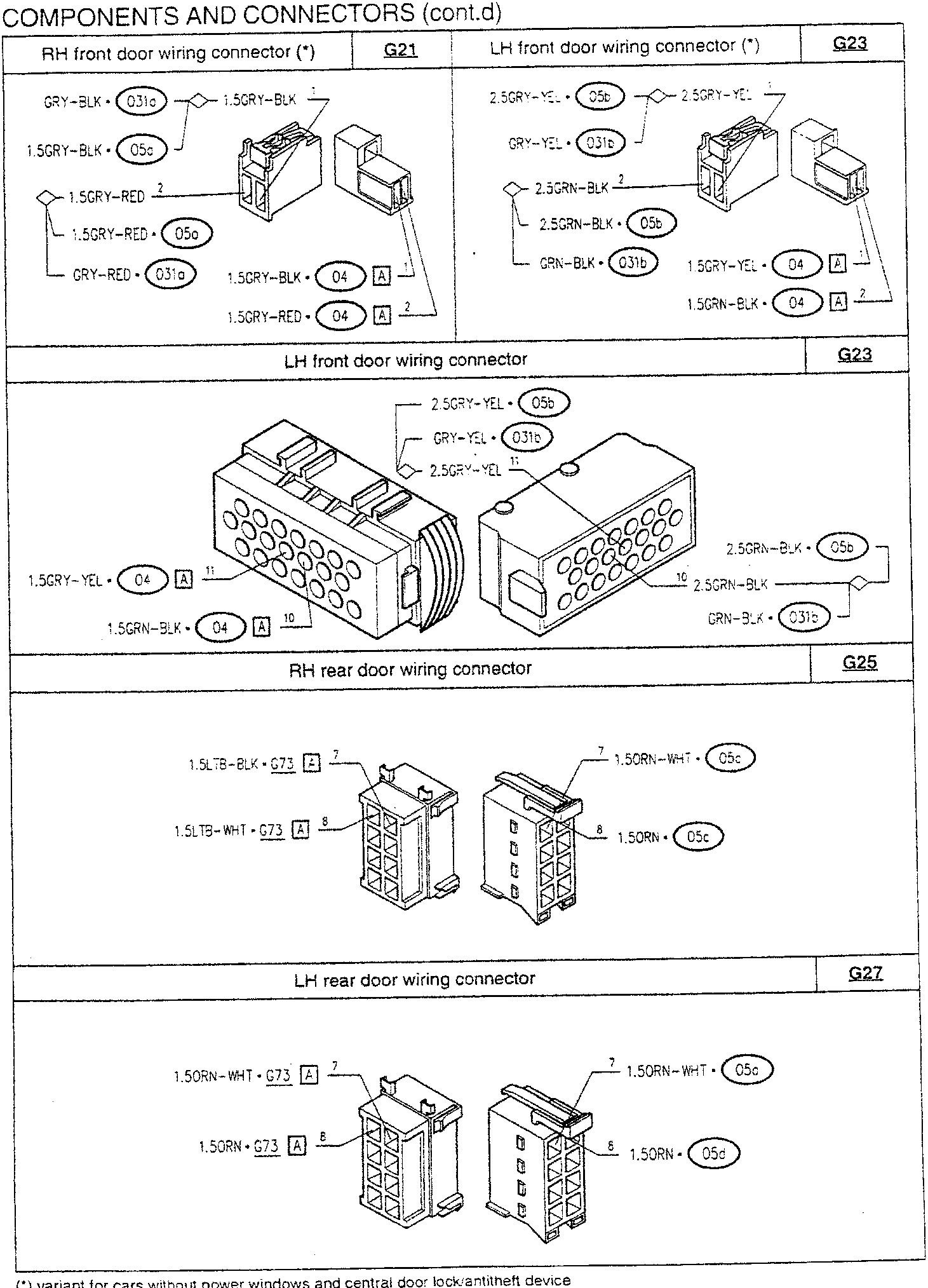

COMPONENTS AND CONNECTORS (cont.d)
| RH front door wiring connector (*) | G21 | LH front door wiring connector (*) | G23 |
|---|---|---|---|
|
G21 | G23 | |
| LH front door wiring connector | G23 |
|---|---|
| G23 | |
| RH rear door wiring connector | G25 |
|---|---|
| G25 | |
| LH rear door wiring connector | G27 |
|---|---|
| G27 | |
(*) variant for cars without power windows and central door lock/antitheft device
