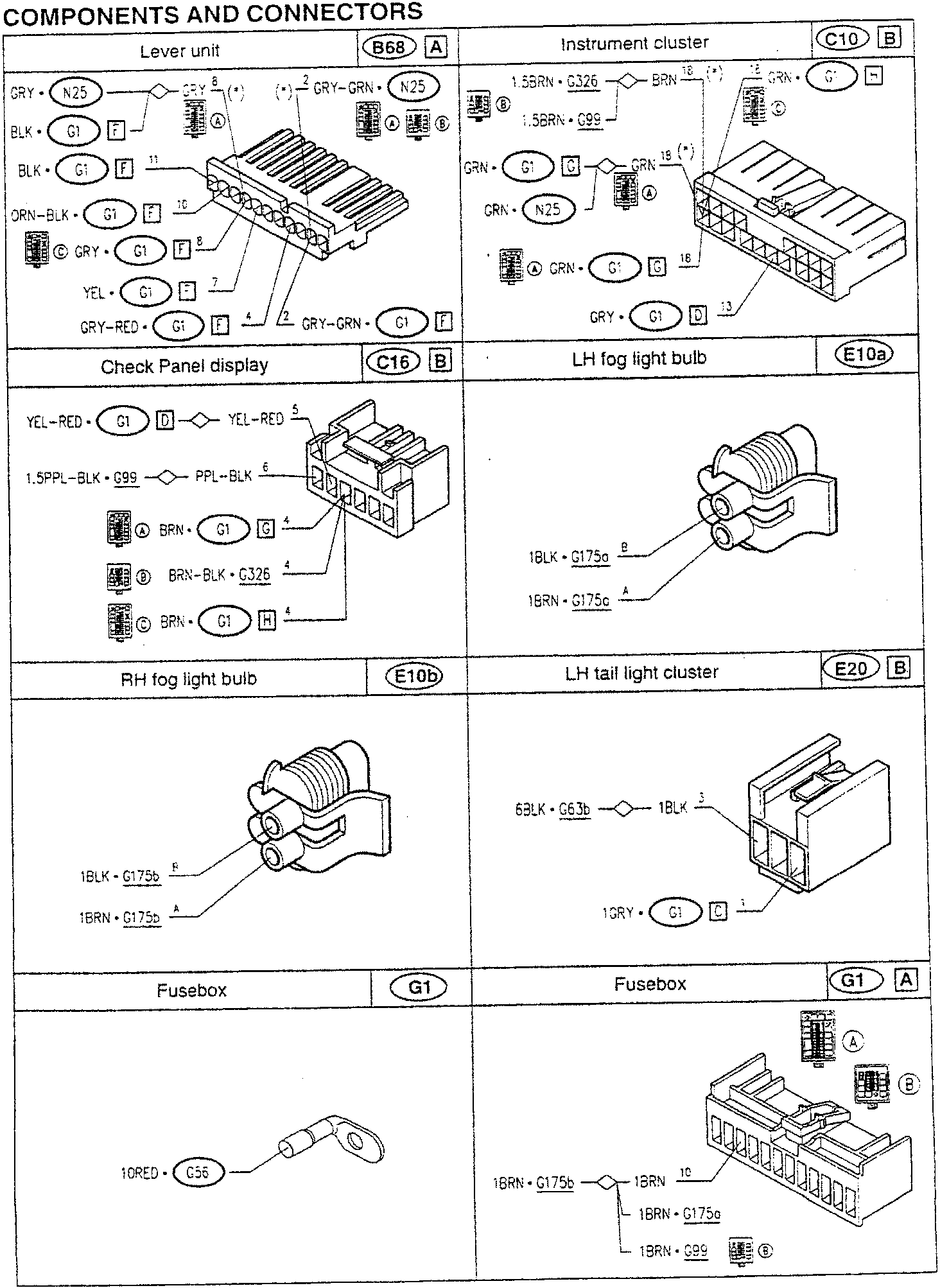

COMPONENTS AND CONNECTORS

Lever unit	B68 A	Instrument cluster	C10 B
GRY • N25 BLK • G1 F BLK • G1 F ORN-BLK • G1 F GRY • G1 F YEL • G1 F GRY-RED • G1 F	B68 A	1.55RN • G326 1.5BRN • G99 GRN • G1 G GRN • N25 GRN • G1 G GRY • G1 D	C10 B
				1.55RN • G326 1.5BRN • G99 GRN • G1 G GRN • N25 GRN • G1 G GRY • G1 D

Check Panel display	C16 B	LH fog light bulb	E10a
YEL-RED • G1 D 1.5PPL-BLK • G99 BRN • G1 G BRN-BLK • G326 BRN • G1 H	C16 B	1BLK • G175a 1BRN • G175c	E10a
				1BLK • G175a 1BRN • G175c

RH fog light bulb	E10b	LH tail light cluster	E20 B
1BLK • G175b 1BRN • G175b	E10b	63BLK • G63b 1BLK 3 1GRY • G1 C	E20 B
				63BLK • G63b 1BLK 3 1GRY • G1 C

Fusebox	G1	Fusebox	G1 A
10RED • G55	G1	1BRN • G175b 1BRN • G175a 1BRN • G99	G1 A
				10RED • G55	1BRN • G175b 1BRN • G175a 1BRN • G99

(*) from M.Y. '97
