Alfa Romeo 145/146 Electrical System Diagnosis Manual, Volume 3 (1994-2001)02 · 146 electrical system diagnosis
02 · Diagnostics

Faultfinding table

Make
Alfa Romeo
Model
145/146 Electrical System Diagnosis Manual, Volume 3
Year
1994–2001
Section
Front and Rear Foglights › Faultfinding table
146 electrical system diagnosisFaultfinding table · page 1 of 2

FAULTFINDING TABLE

Failure Component to be checked
F11 E20 F19 (A) G382 (B) E10a E10b I25 I17 N25 (*) I65 (B) B68 C16 (**) C10 (*)
Rear fog guard ● ● ● ● ● ●
Fog guard warning light ● ● ●
Both fog lights ● ● ● ●
RH fog light ●
LH fog light ●
Fog light warning light ● ● ●
Lighting. fog light switch (with side lights on) ●

(*) The instrument cluster C10 cannot be repaired. Therefore, in the event of a failure it is not possible to change the single warning light and a new complete cluster must be fitted.

(**) The "Check Panel" display C16 cannot be repaired. Therefore it is not possible to change the fog light switch and a new complete Check Panel must be fitted.

(A) Only fusebox "A"

(B) Only fusebox "B"

(●) Only from Model Year '97

CHECKING COMPONENTS

Rear fog guard electronic device N25

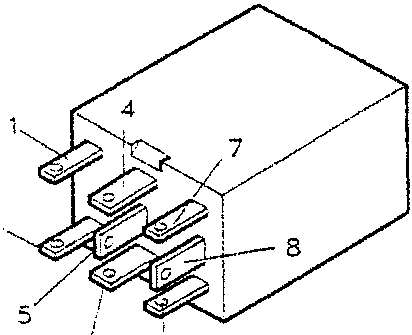

Rear fog guard electronic device N25 with numbered parts 1 to 9

Check the device: see TEST A

  1. Part 1
  2. Part 2
  3. Part 3
  4. Part 4
  5. Part 5
  6. Part 6
  7. Part 7
  8. Part 8
  9. Part 9
