146 electrical system diagnosisComponents and connectors

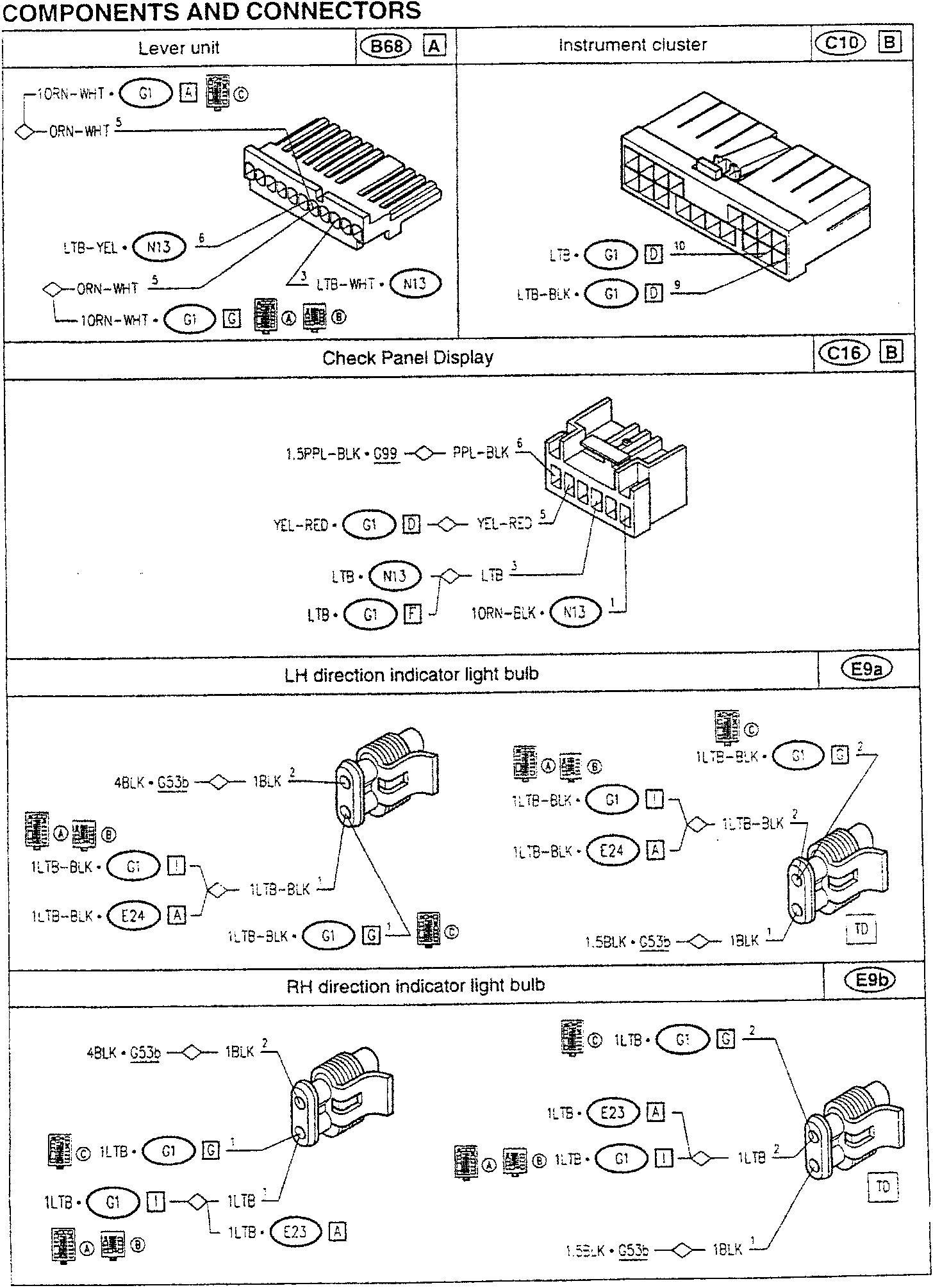

COMPONENTS AND CONNECTORS
| Lever unit | B68 A | Instrument cluster | C10 B |
|---|---|---|---|
|
Check Panel Display
| C16 B |
|---|
LH direction indicator light bulb
| E9a |
|---|
RH direction indicator light bulb
| E9b |
|---|
