146 electrical system diagnosisFaultfinding table · page 1 of 2
FAULTFINDING TABLE
| Failure | Component to be checked | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| F1 | F17 | E23 | E24 | E9a | E9b | E19 | E20 | N13 | B68 | C16 | C10 |
| All the direction indicators | ● | ● | ● | ● | |||||||
| Hazard warning lights | ● | ● | ● | ||||||||
| All the RH direction indicators | ● | ● | |||||||||
| All the LH direction indicators | ● | ● | |||||||||
| RH front light | ● | ||||||||||
| RH side light | ● | ||||||||||
| RH rear light | ● | ||||||||||
| LH front light | ● | ||||||||||
| LH side light | ● | ||||||||||
| LH rear light | ● | ||||||||||
| RH indicator warning light | ● | ||||||||||
| LH indicator warning light | ● | ||||||||||
| Hazard warning light switch illuminated with lights on | ● | ||||||||||
(*) The instrument cluster C10 cannot be repaired. Therefore in the event of a failure it is not possible to change the single warning light and a new complete cluster must be fitted.
(**) The "Check Panel" display C16 cannot be repaired. Therefore, in the event of a failure it is not possible to replace the hazard warning light switch and a new complete Check Panel must be installed.
CHECKING COMPONENTS

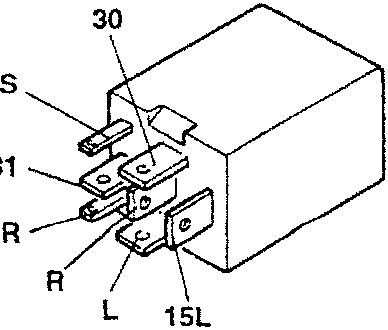

Hazard warning light and indicator flasher N13
Checking the device: see TEST A
