COMPONENTS AND CONNECTORS (cont.d)
- Make
- Alfa Romeo
- Model
- 145/146 Electrical System Diagnosis Manual, Volume 3
- Year
- 1994–2001
- Section
- Reversing Lights › COMPONENTS AND CONNECTORS (cont.d)
146 electrical system diagnosisCOMPONENTS AND CONNECTORS (cont.d)

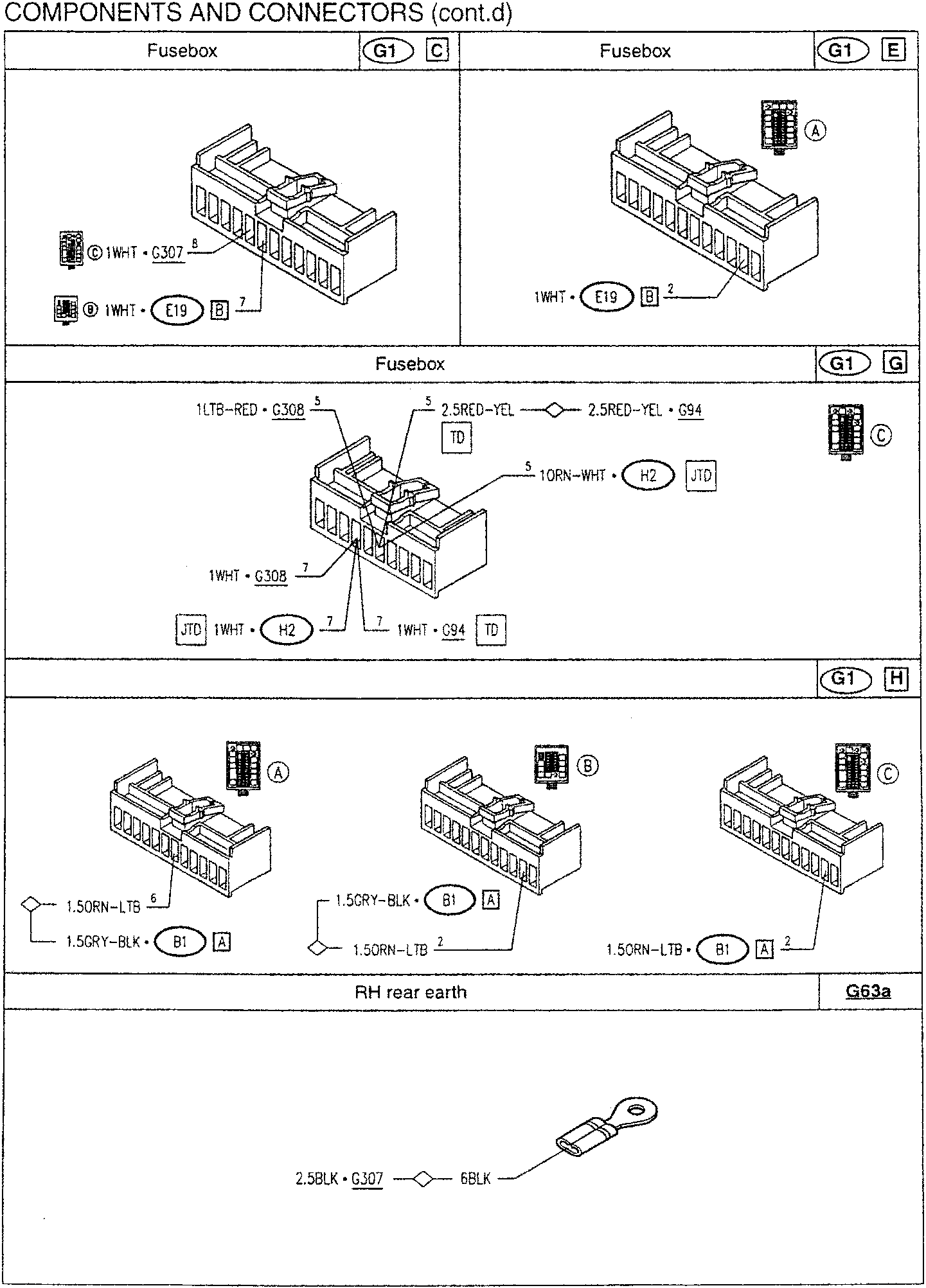

COMPONENTS AND CONNECTORS (cont.d) – diagram from the 146 electrical system diagnosis chapter of the Alfa Romeo 145/146 Electrical System Diagnosis Manual, Volume 3 (1994-2001) factory manual.
COMPONENTS AND CONNECTORS (cont.d)
| Fusebox | G1 C | Fusebox | G1 E |
|---|---|---|---|
|
| Fusebox | G1 G |
|---|---|
| G1 H |
|---|
| RH rear earth | G63a |
|---|---|
