146 electrical system diagnosisGeneral description
GENERAL DESCRIPTION
The car is fitted with a reversing light located in the right-hand tail light.
When reverse gear is selected, the light is turned on automatically by a switch to be found on the gearbox.
The circuit is protected by a special fuse.
The reversing light is operated when the ignition key is engaged and it is independent of the other lights on the vehicle.
FUNCTIONAL DESCRIPTION
The reversing light circuit is supplied from the ignition switch through fuse F15 of fusebox G1. When reverse gear is engaged switch H2 supplies the reversing light E19.

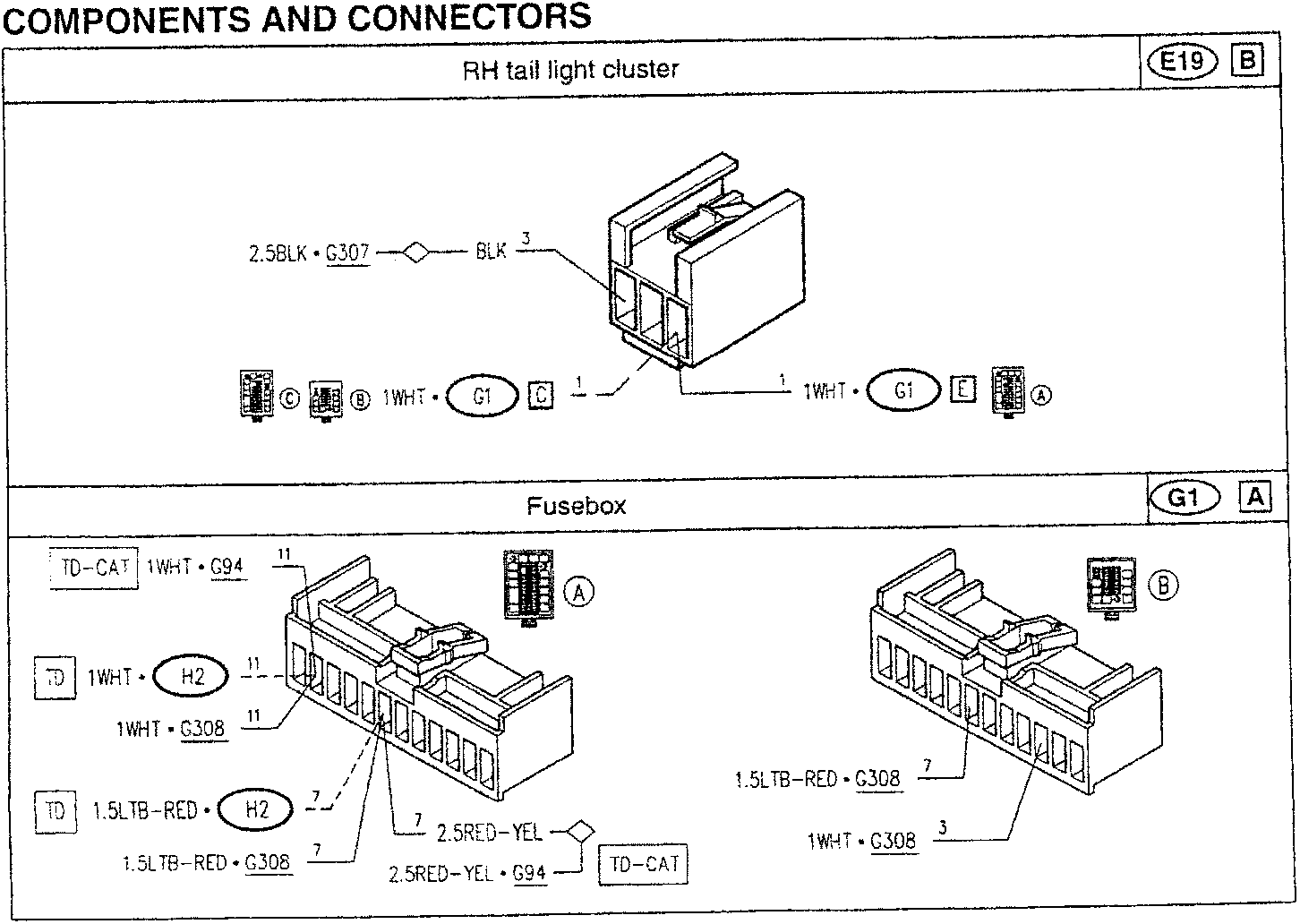

COMPONENTS AND CONNECTORS
