Bonnet opening wire ('98 models)

BONNET OPENING WIRE ('98 MODELS)

REPLACEMENT

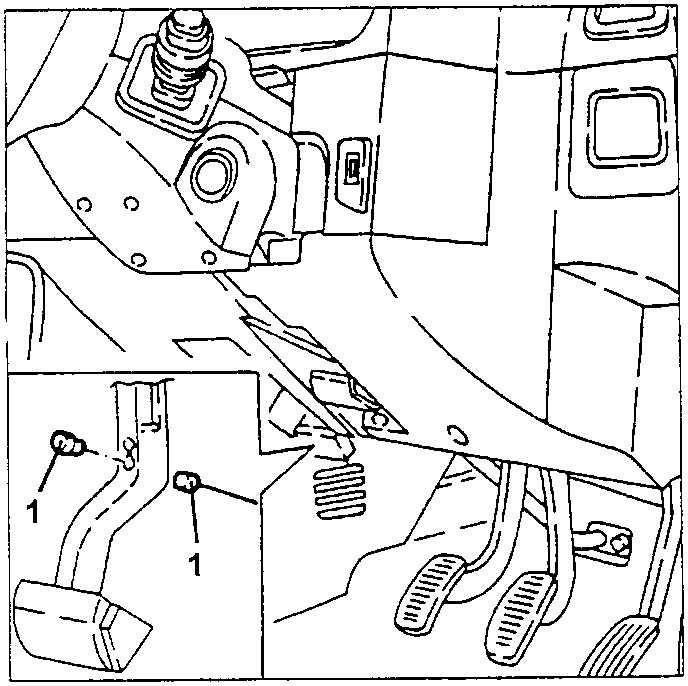

1. From inside the passenger compartment, remove the cap and remove the pawl from the bonnet opening wire.

• Remove the intake manifold (see ASSEMBLY 10).

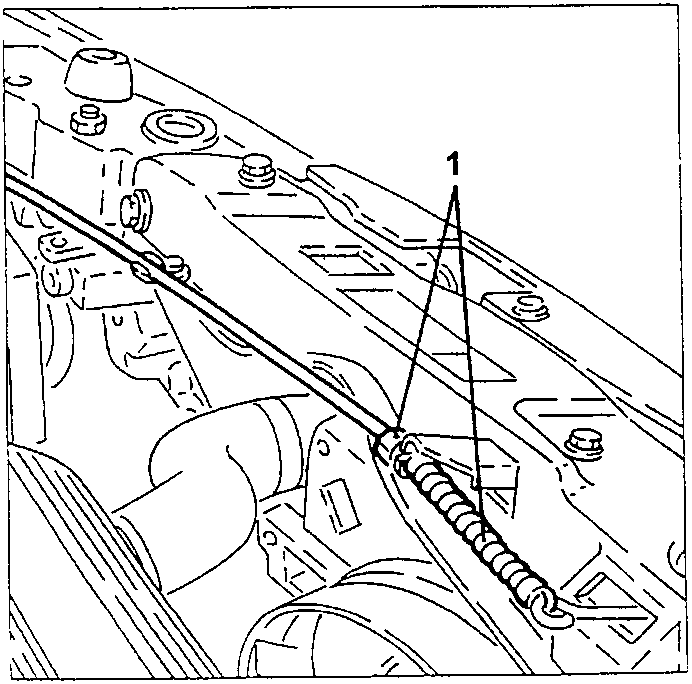

1. Disconnect the bonnet opening wire from the respective lock.

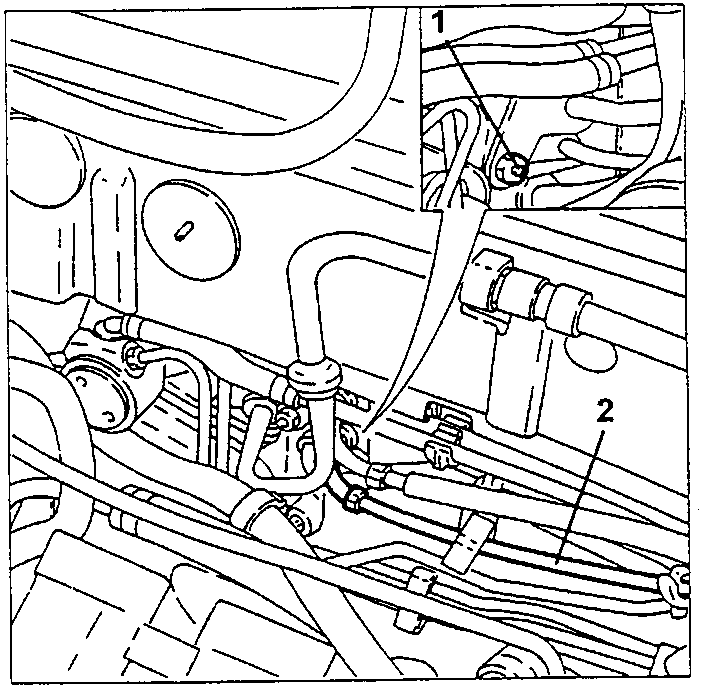

1. Loosen the accelerator wire and bonnet opening wire nut from the engine compartment partition.
2. Remove the bonnet opening wire from the engine compartment partition.

• Refit a new bonnet opening wire by reversing the removal sequence.

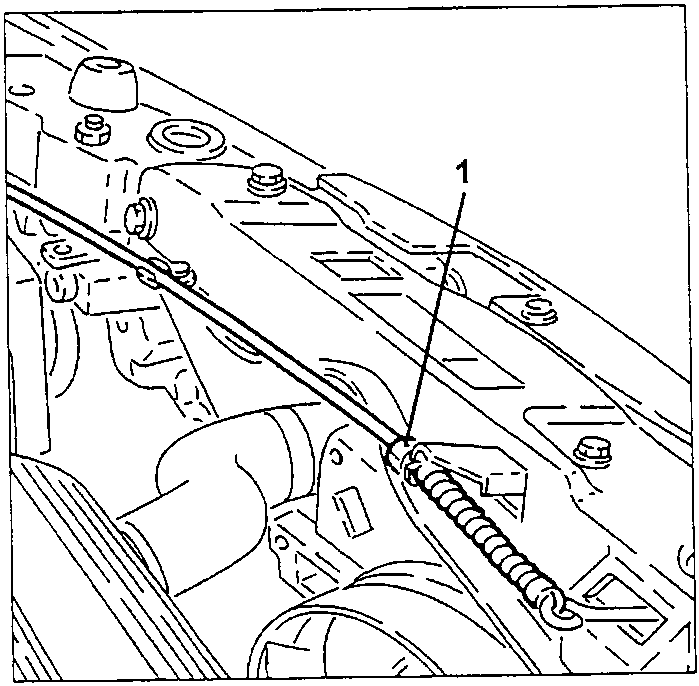

1. Calibrate bonnet opening wire tension by means of the specific nut.
