REAR BUMPER

REMOVAL/REFITTING

  1. Loosen the two lower screws securing the bumper.
Front bumper with gaskets shown
When refitting check that the two upper gaskets are present on the bumper.

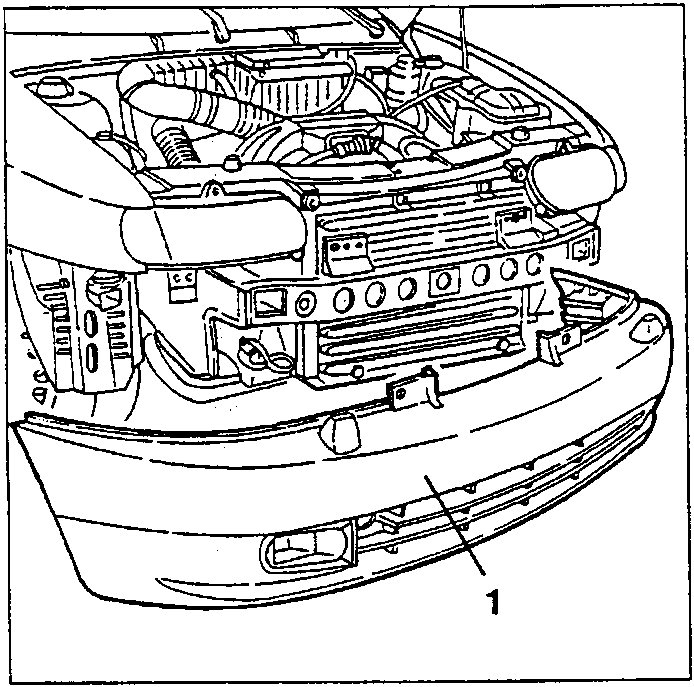

Front bumper with screws shown

Refit by reversing the procedure followed for removal adjusting the position of the bumper using the screws shown in the diagram.

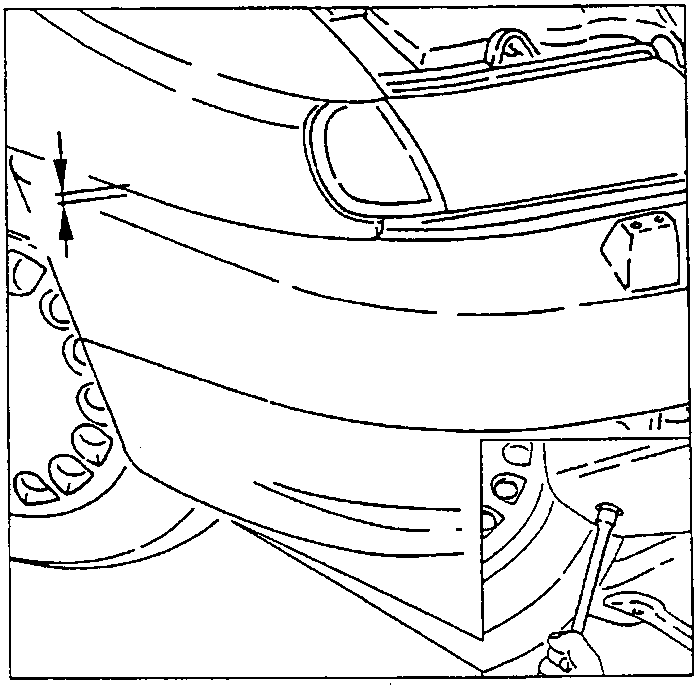

Rear bumper with screws shown
Rear bumper with screws shown
  1. Loosen the two screws securing the rear wheel housing to the bumper.

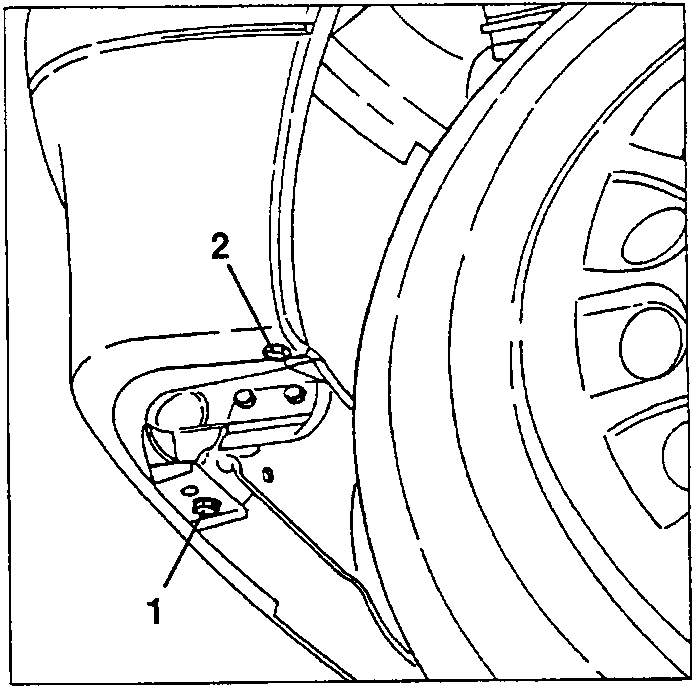

Rear wheel housing with screws shown
  1. Pull the wheel housing from the bumper.

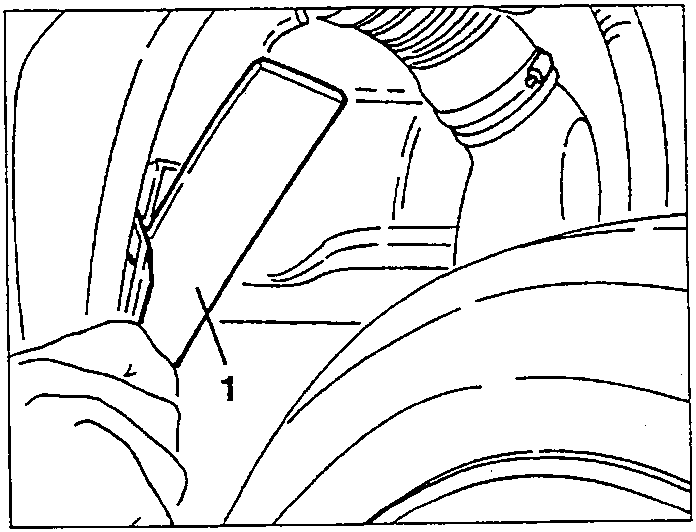

Wheel housing being pulled from bumper
  1. Pull off the numberplate light and remove them after disconnecting the relative electrical connections.

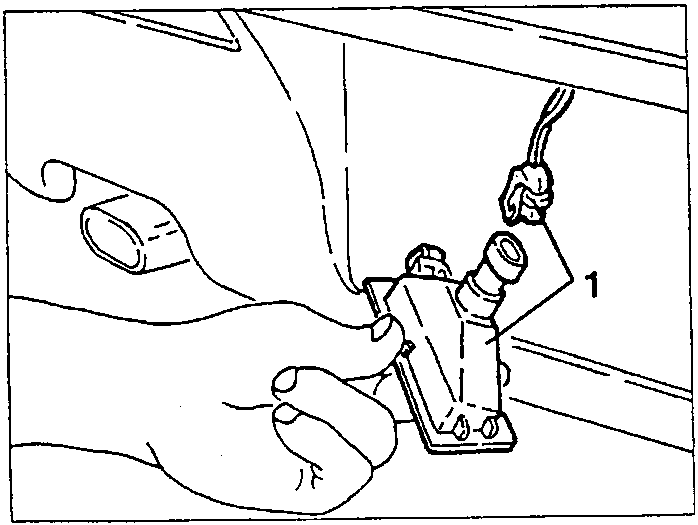

Numberplate light being disconnected
