Position "b" - Roof during opening
- Make
- Alfa Romeo
- Model
- 145/146 Factory Service Manual
- Year
- 1994–1999
- Section
- External trim › Position "b" - Roof during opening
BodyworkPosition "b" - Roof during opening

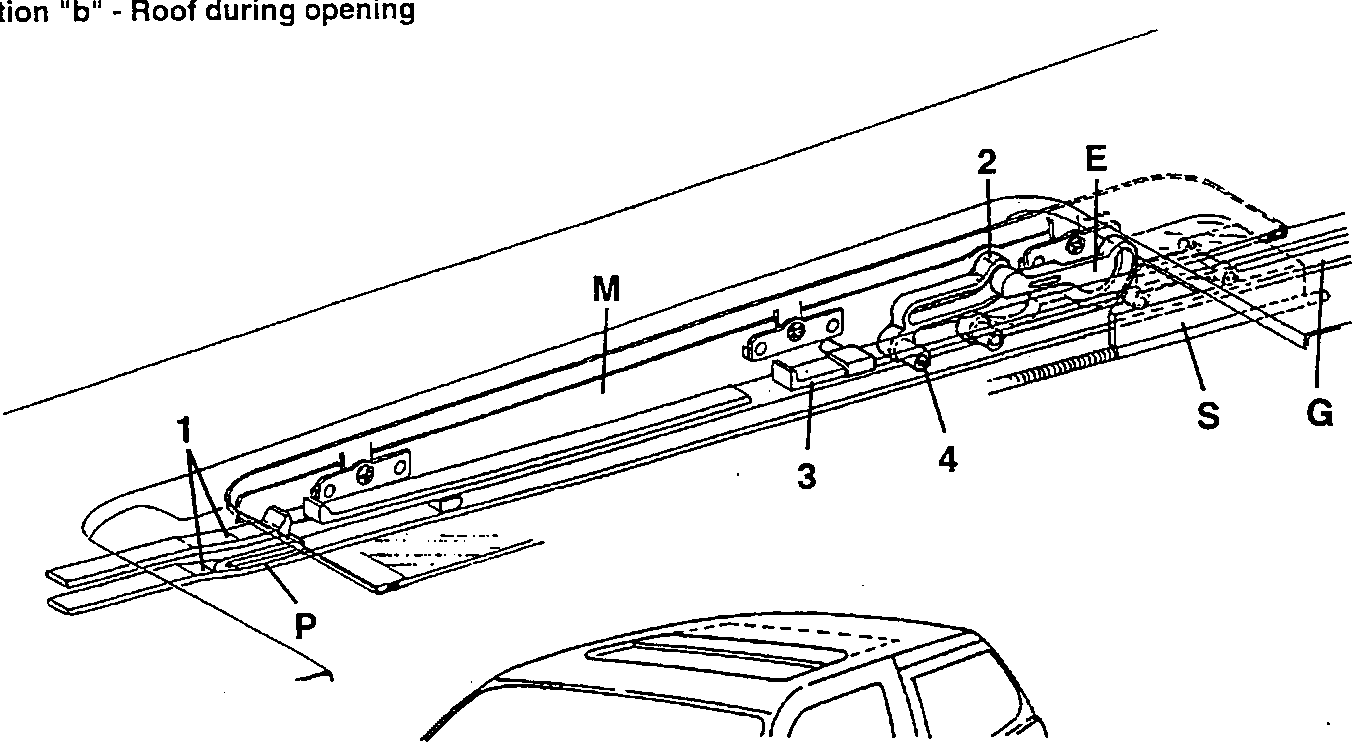

Position "b" - Roof during opening
- Bend in the guiding groove
- Pantograph pin
- Guiding groove
- Pin
P. Runner
M. Sliding bracket
E. Pantograph element
G. Rail
S. Runner

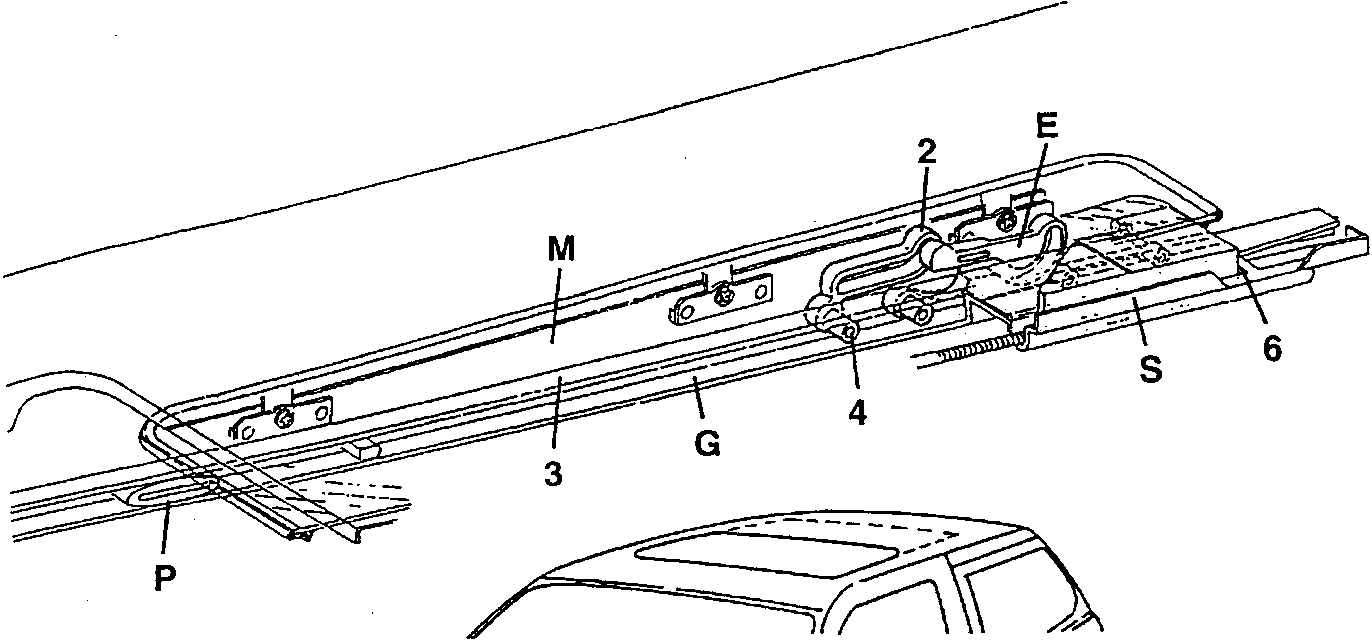

Position "c" - Roof completely open
- Pantograph pin
- Guiding groove
- Pin
- Stop limit
P. Runner
M. Sliding bracket
E. Pantograph element
G. Rail
S. Runner
