Sliding blind

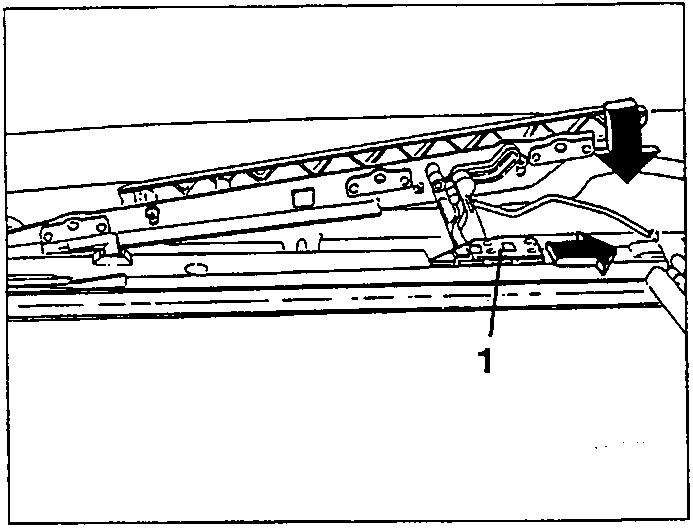

1. Manually push the runners to the rear part of the roof compartment.

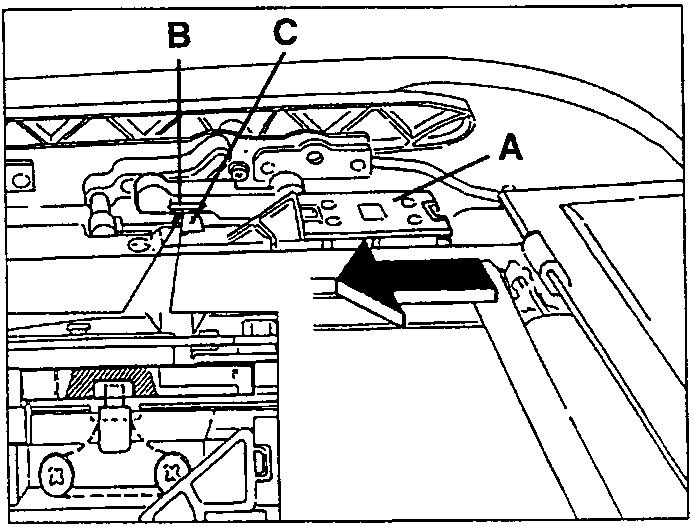

• Manually return the runners (A) to the front area until the slot (B) and the abutting face (C) of the guide pin are perfectly aligned.

• Insert the sunroof command switch into its connector.
• Work the electric motor until pin (A) of microswitch (B) is engaged in the hollow (C) in the plastic wheel (D).
• Without adjusting the position of the runners refit the motor and tighten the three screws.
• Refit the glass panel and the front roof light operating as shown in the relative paragraphs.

SLIDING BLIND

Removal/Refitting

• Remove the glass panel (see specific paragraph).
• Move the blind to the closed position.

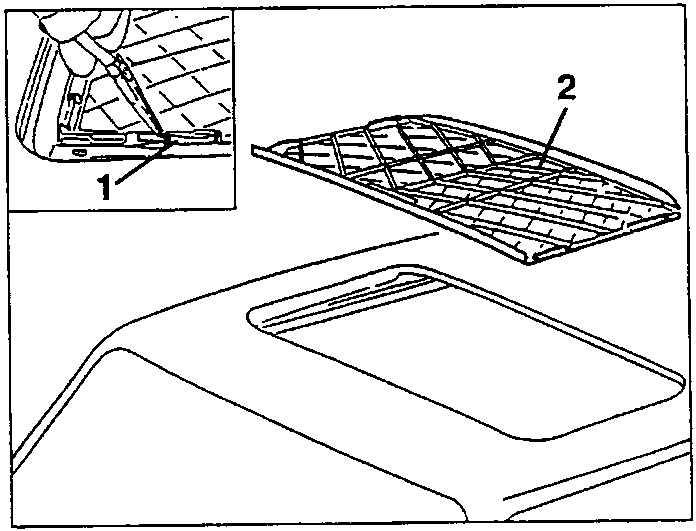

1. Using a suitable tool release the springs on one side of the blind from the guide.
2. Free the sliding blind and remove it from the front end.

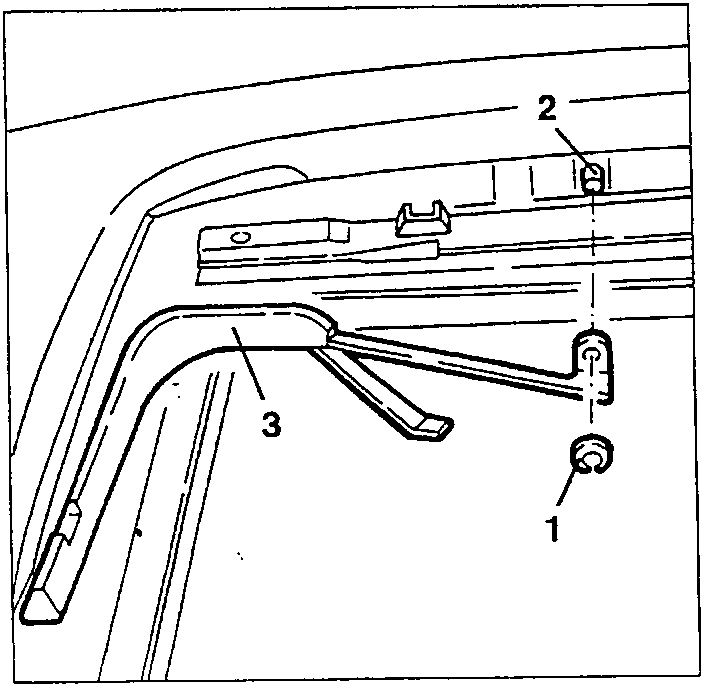

MOBILE SPOILER

Removal/Refitting

• Open the sunroof.

1. Remove the seeger from each side.
2. Remove the bracket from the pin.
3. Remove the deflector.
