Bonnet grille logo

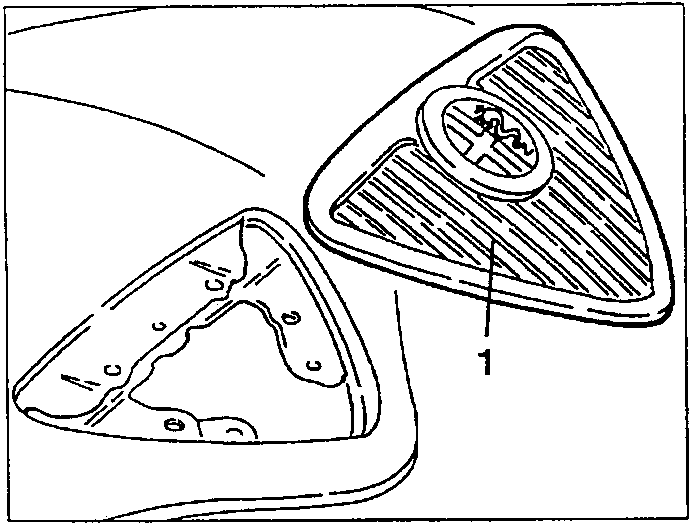

1. Remove the bonnet grille by pulling it away from the two clips.

BONNET GRILLE LOGO

REMOVAL/REFITTING

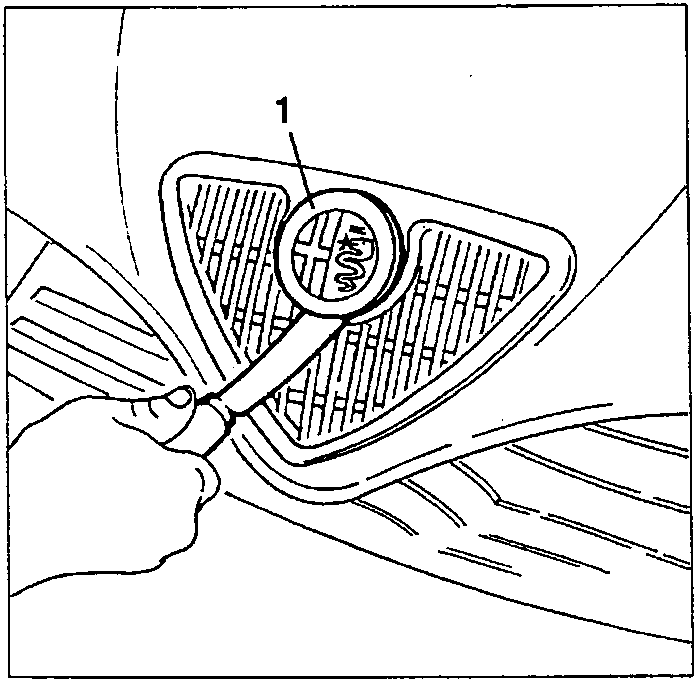

1. Pull off and remove the logo from the grille on the bonnet.

3. Remove the fuel flap.

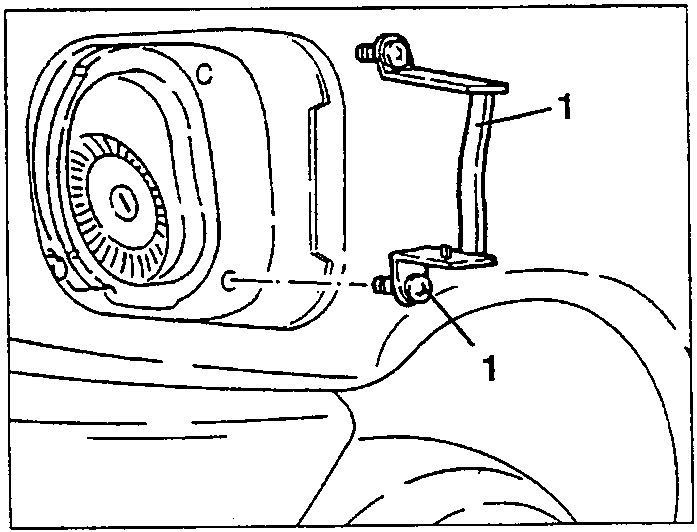

1. Working through the wheel housing loosen the two nuts and remove the fuel flap support bracket.

Refit by reversing the procedure followed for removal and note the following:

1. Ensure that the flap is fitted with its gasket.

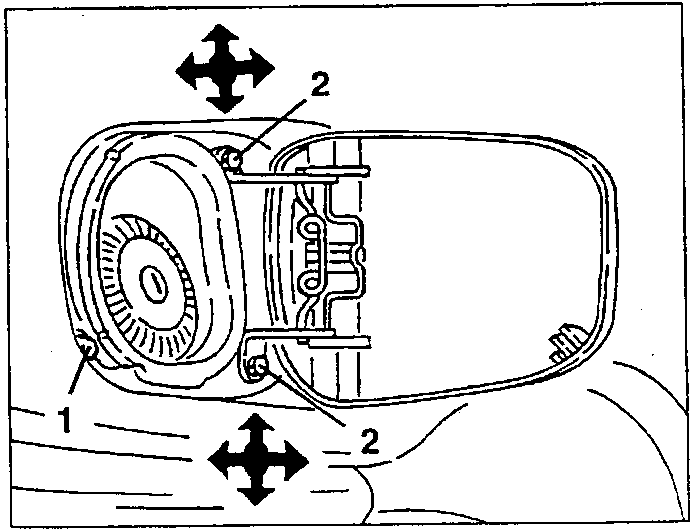

2. Adjust the position of the flap by turning the nuts securing the support bracket.

FUEL CAP COVER

REMOVAL/REFITTING

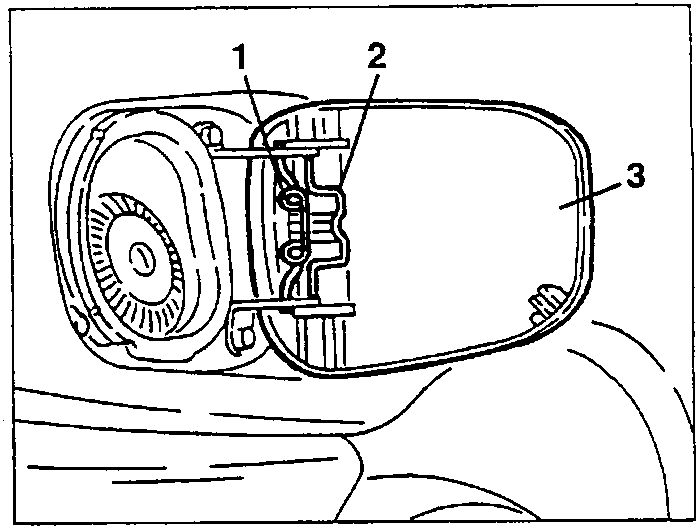

1. Open the flap and free the return spring.
2. Unhook and remove the flap attachment device.
