BodyworkUpper window trim

UPPER WINDOW TRIM

REMOVAL/REFITTING

  1. Working with the boot lid open loosen the screw securing the upper window trim.

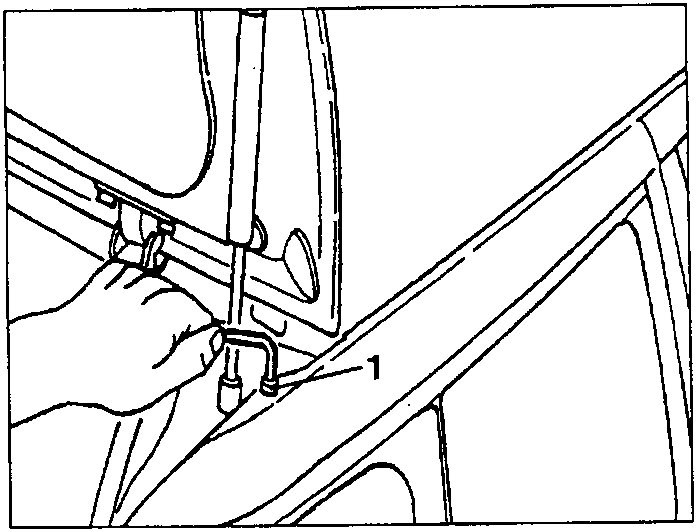

Hand loosening a screw on the upper window trim, with part 1 indicated
  1. Remove the upper window trim by pushing the rear part of the vehicle.

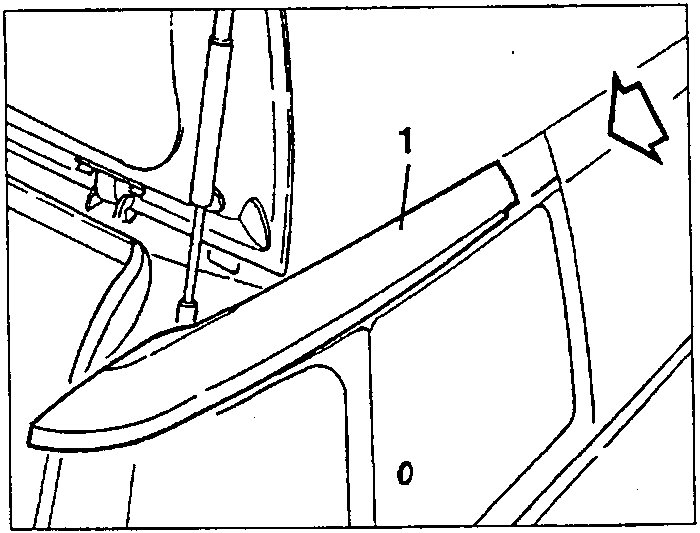

Upper window trim being pushed out from the rear, with part 1 and 0 indicated

– Working on a bench remove the seal from the upper window trim.

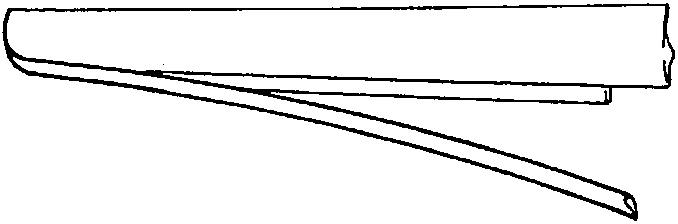

Seal removed from the upper window trim

Refit by reversing the procedure followed for removal and note the following.

  1. Refit the upper window trim by pressing it onto the clips.
Diagram showing refitting of upper window trim

AIR OUTLET GRILLE FROM PASSENGER COMPARTMENT

REMOVAL/REFITTING

  1. Working with the boot lid raised loosen the two screws and remove the passenger compartment air outlet grille.
Adjusting trim longitudinally using screw 2, checking gaps with boot and door; part A and 1 indicated
  1. Adjust the trim longitudinally using the screw and check the gaps with the boot and door.

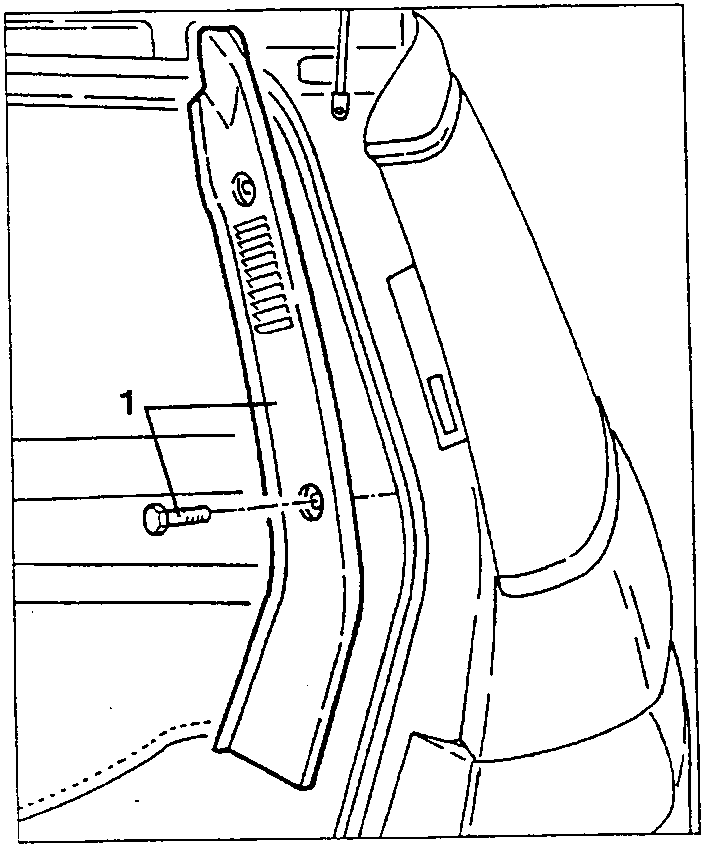

Air outlet grille being removed from passenger compartment, with part 1 and screw indicated
