Mobile water channel

When refitting reverse the procedure followed for removal and note the following:

• When inserting the flexible rack in the guiding tracks check that the second section of track slides correctly in the gear seating.
• Align the runners (see specific paragraph) and refit the electric motor.
• Refit the various parts by following the procedures given the the relative paragraphs.

MOBILE WATER CHANNEL

Removal/Refitting

NOTE: The procedure for disassembling the channel is similar to that for dismantling the runners (see specific paragraph). It is only necessary to remove one runner to free and remove the channel.

GUIDES

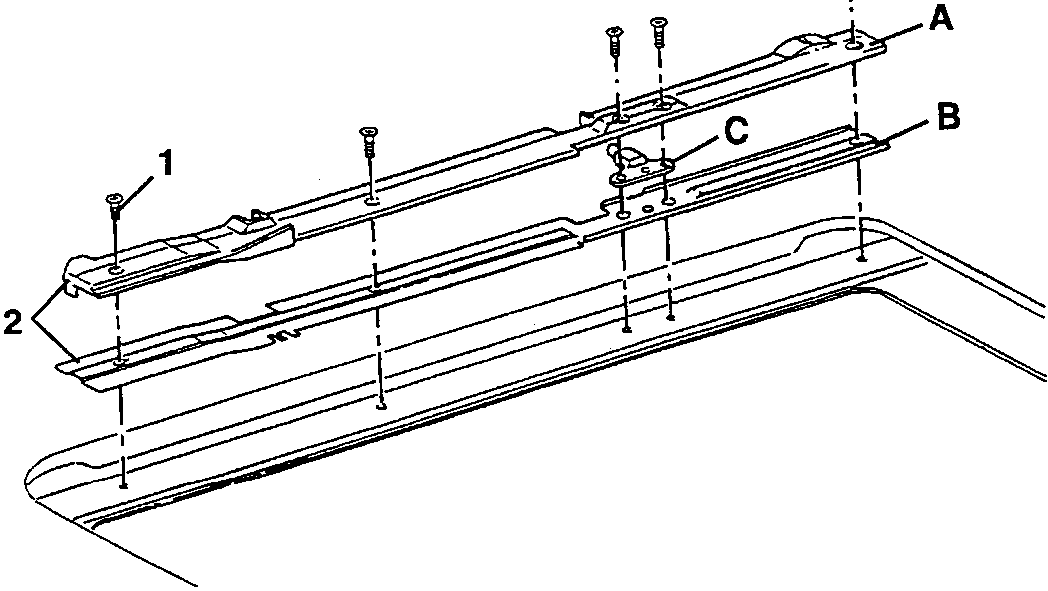

Disassembly and Reassembly.

• Fully open the sunroof.

1. Loosen the five screws securing each guide.
2. Remove the complete guide.

3. Separate the plastic upper part (A) from the lower part (B) and remove the guide pin (C).
