Quarterlight window

- Before installing the windscreen ensure that when its is cleaned that there are no signs of chipping around the edges.
- Ensure that the windscreen housing frame is not bent.

Complete with refitting operations by reversing the procedure followed for removal ensuring that the rear-view mirror is not installed when the sealant is still fresh.

NOTE: Do not use the vehicle until the sealant is completely dry.

QUARTERLIGHT WINDOW

REMOVAL/REFITTING

• Remove the window surround (see specific paragraph).

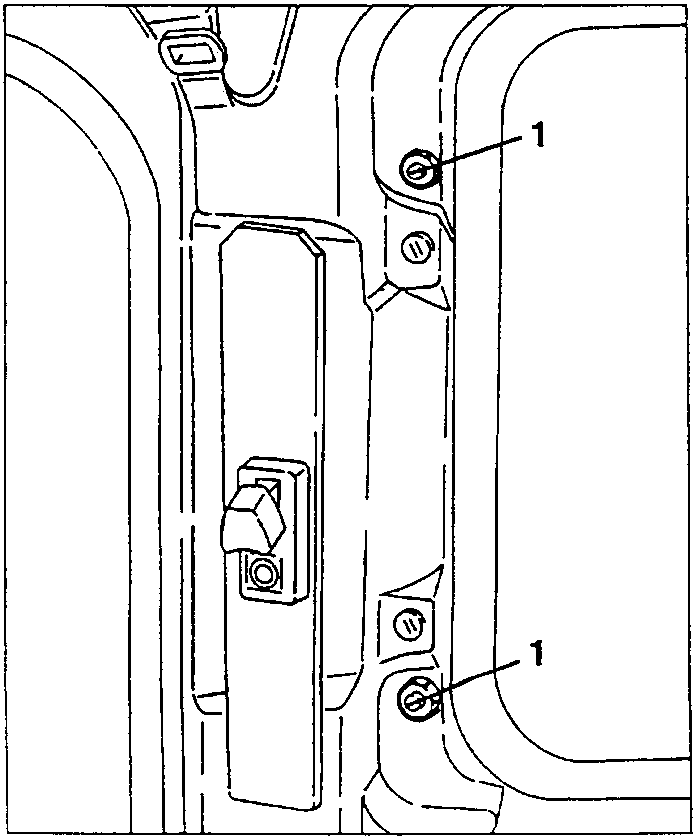

1. Loosen the two nuts securing the glass.

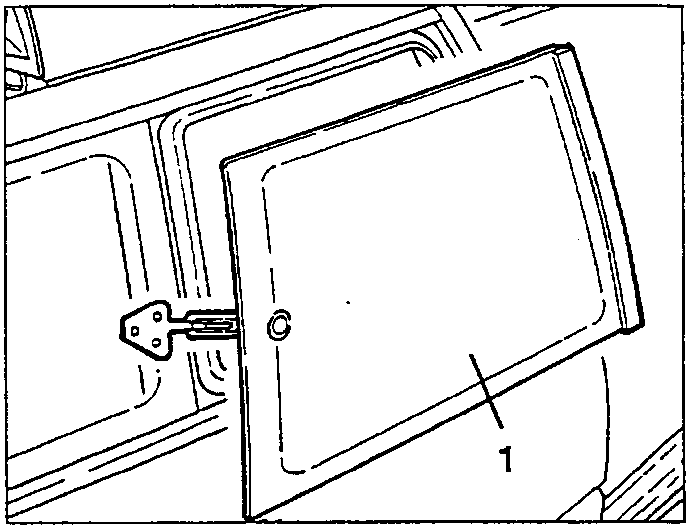

1. Remove the complete window.

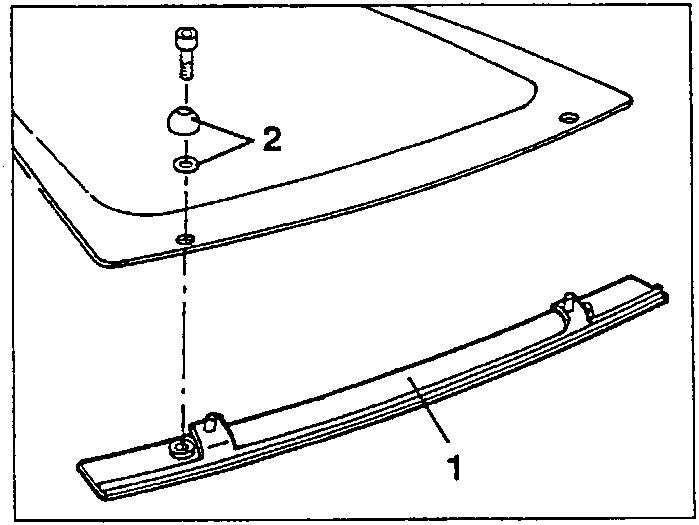

1. Working on a bench loosen the two retaining screws and remove the glass from the front part of the frame.
   2. Remove the spacers and seal strips.

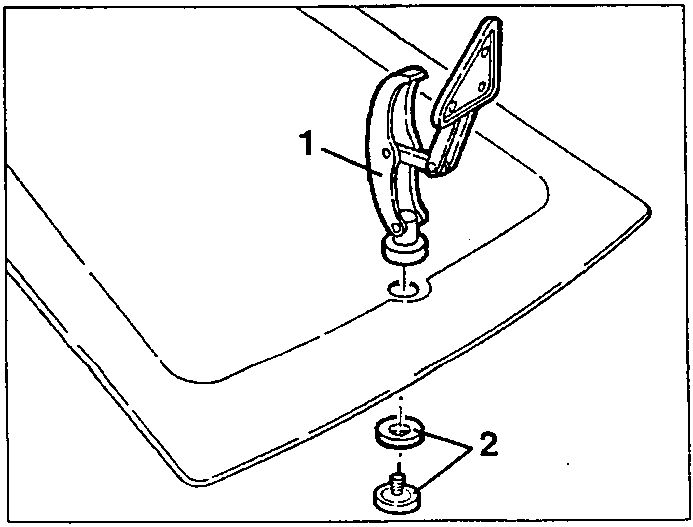

1. Loosen and remove the opening device from the window.
   2. Remove the pin and the seal.
