Windscreen (page 2 of 2)

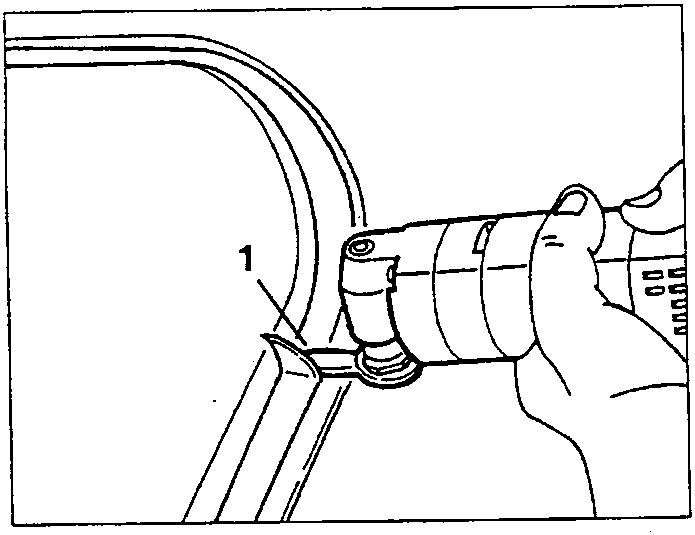

1. If the removed windscreen is to be re-used, remove the profile and the residual sealant from the edge of the windscreen.

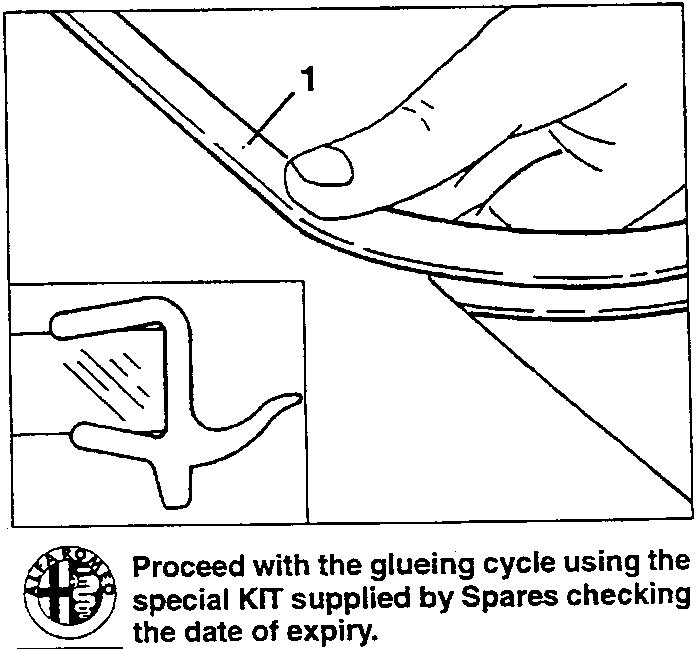

1. Fit the new profile on the windscreen.

Proceed with the glueing cycle using the special KIT supplied by Spares checking the date of expiry.

1. Carefully clean the edge of the windscreen with the special cloth moistened with degreasing agent.

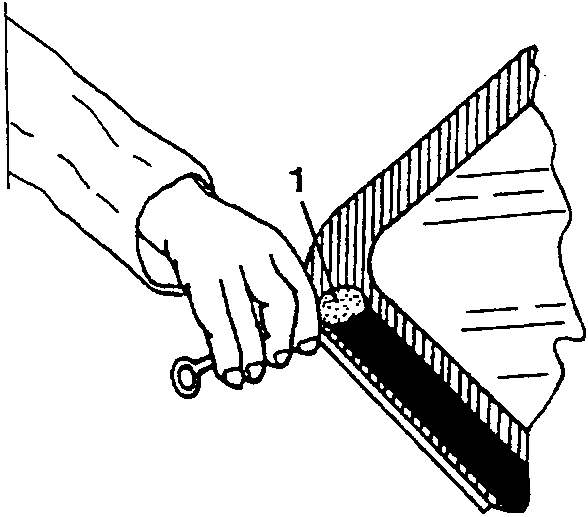

1. Apply the primer evenly and without interruption on the black printing using the applicator as shown in the diagram.

NOTE: After applying the primer allow to dry for at least 10 minutes ensuring that the surfaces are kept clean.

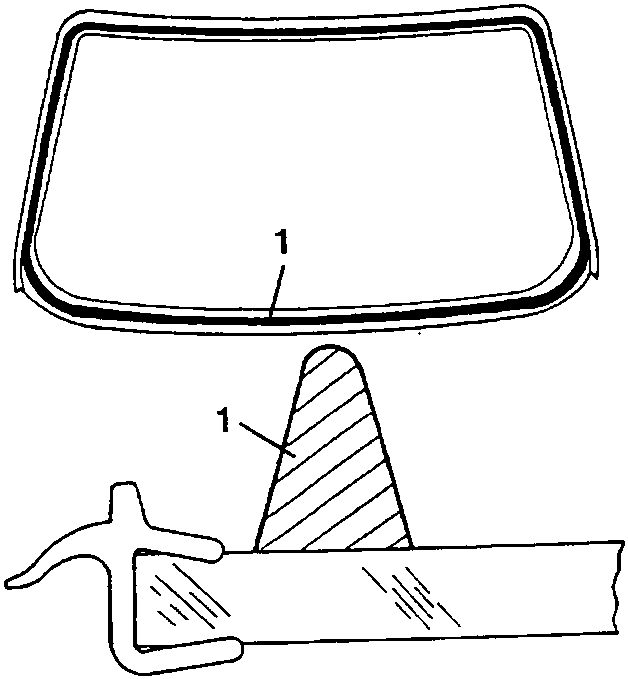

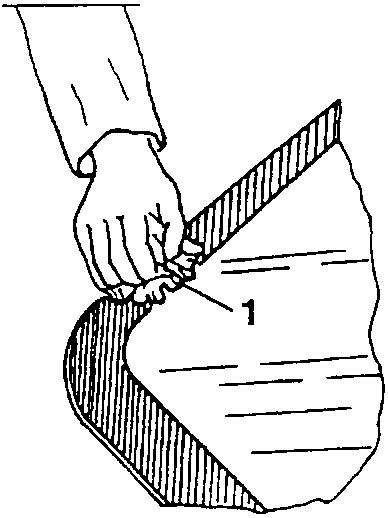

1. Apply sealant along the line shown in the diagram using the nozzle (from which the guide must be removed) contained in the kit.

NOTE: Using the short or long sealant cartridge (or both if necessary) depending on the edge of the wind-screen in question.

• Using the appropriate suction cups install the wind-screen positioning it on the lower spacers and centering it in its frame.
• Exert a light, uniform pressure around the edges of the windscreen.
