BodyworkRear fixed window

Refit by reversing the procedure followed for removal and adjust the position of the quarterlight as described below.

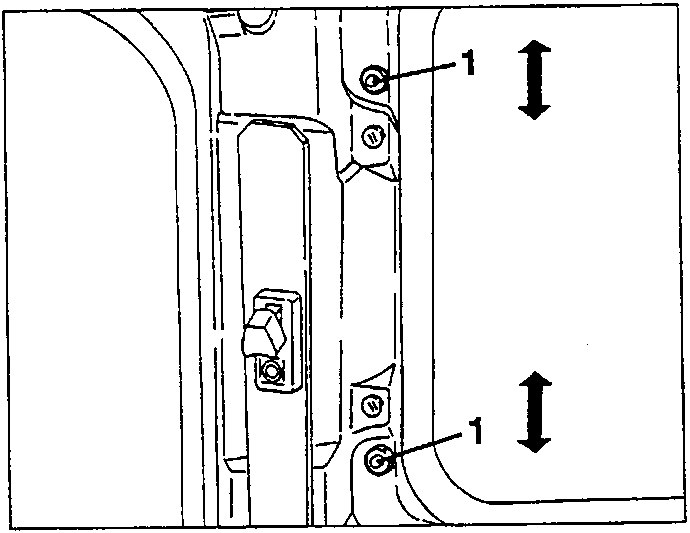

  1. Adjust the height of the quarterlight by altering the two front attachment nuts.
Quarterlight adjustment diagram showing two nuts with arrows indicating up/down movement.

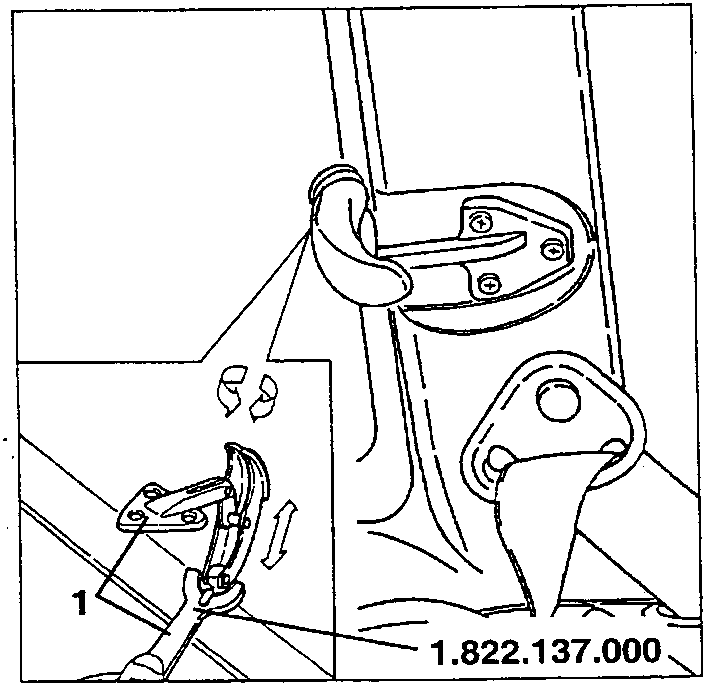

  1. Adjust the closing device by loosening the ring nut with tool N° 1.822.137.000 and turning the handle of the opening device.
Closing device adjustment diagram showing a tool engaging a ring nut and handle.
  • Remove the passenger compartment air outlet grille (see specific paragraph).

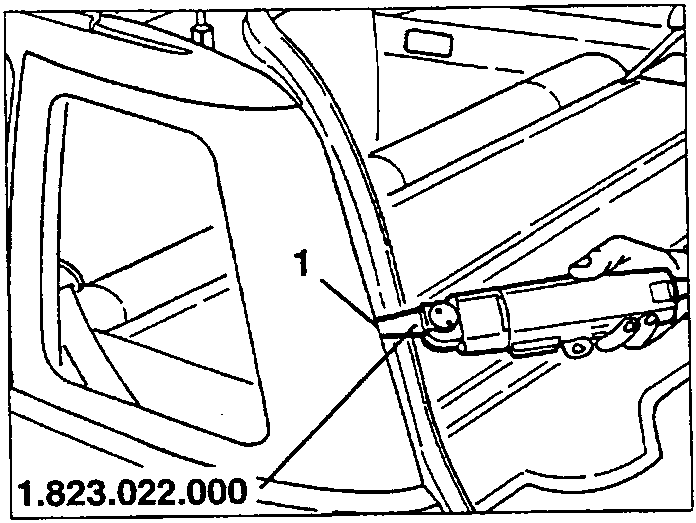

  1. Using a pair of electric shears with blade N° 1.823.023.000, cut the sealant on the rear edge.
Electric shears cutting sealant at the rear edge of the quarterlight.

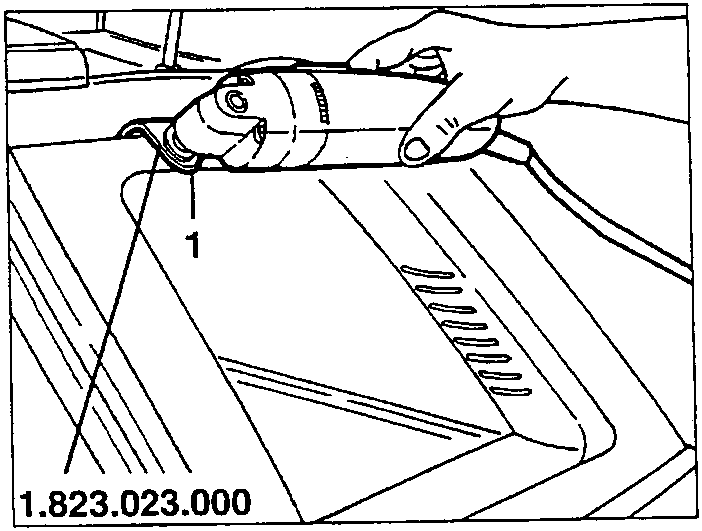

  1. Using a pair of electric shears with blade N° 1.823.023.000, cut the remaining stretches of sealant.
Electric shears cutting sealant on a flat surface.

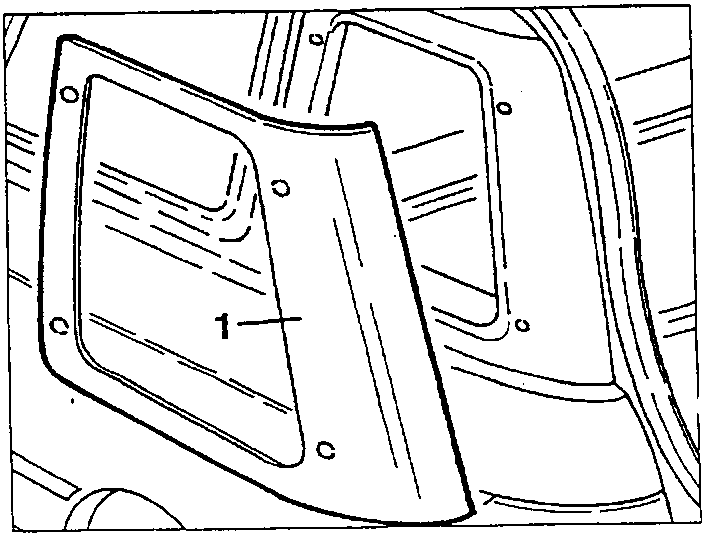

  1. Remove the window pulling it away from the plastic positioning nails.
Window being removed from the vehicle frame.

REAR FIXED WINDOW

REMOVAL

  • Remove the upper window strip (see specific paragraph).
  • Remove the quarterlight (see specific paragraph).
  • Remove the lower window strip (see specific procedure).
