WINDSCREEN

REMOVAL

  • Remove the air intake grille (see specific paragraph).
  • Remove the trim from the front pillars (see specific procedure).
  • Remove the front roof light (see GROUP 55).
  • Remove the sun visors (see specific procedure).
  • Remove the passenger compartment rear-view mirror (see specific procedure).
  • Loosen the two screws securing the front of the roof panel and lower this in order to avoid hindering the successive operations.

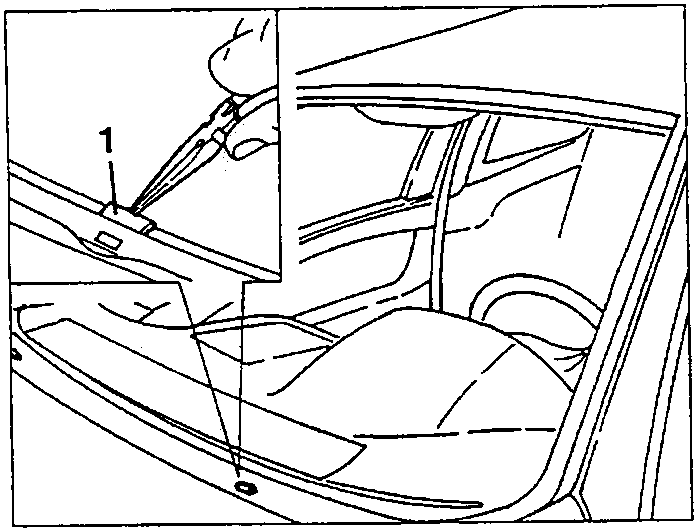

  1. Remove the two lower windscreen shims.
Using electric shears to cut sealant on upper and side edges of windscreen.

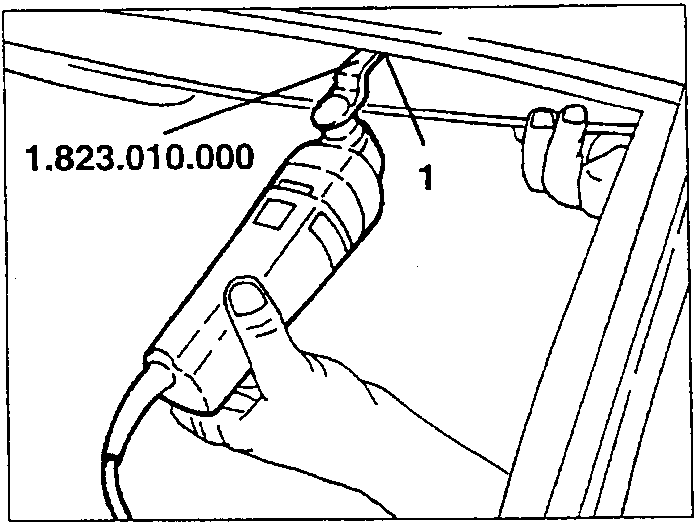

  1. Working in the passenger compartment, using a pair of electric shears with blade N° 1.823.010.000, cut the sealant on the upper and side edges.
Using electric shears to cut sealant on lower edge of windscreen.

NOTE: Adjust the cutting depth of the blade to avoid damaging the bodywork.

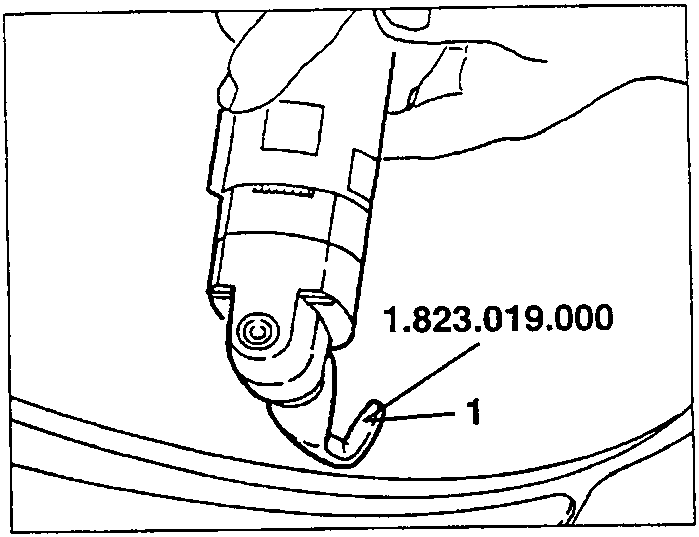

  1. Working from outside the vehicle, using a pair of electric shears with blade N° 1.823.019.000, cut the sealant on the lower edge.
Using suction tool to remove windscreen and upper shims.

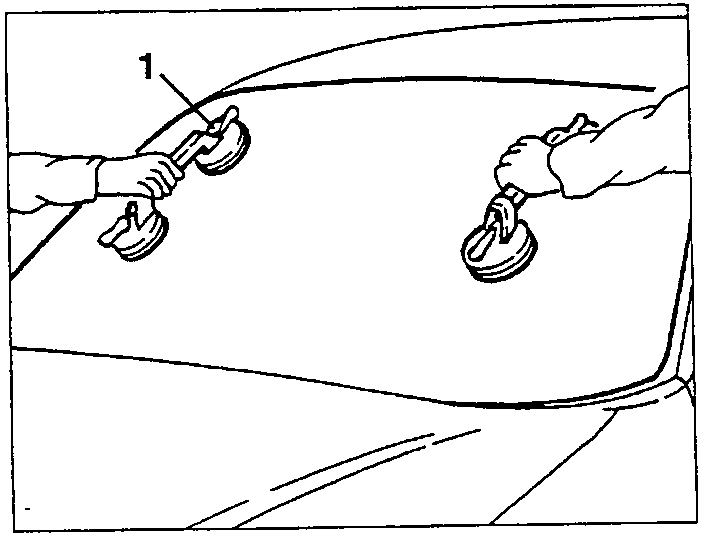

  1. Using the appropriate sucker remove the windscreen and remove the upper windscreen shims.
Using suction tools to remove windscreen.

REFITTING

  • Clean residues of sealant from the edge of the windscreen mating surfaces.
  • Restore any damaged paintwork caused when cutting the sealant with the shears.

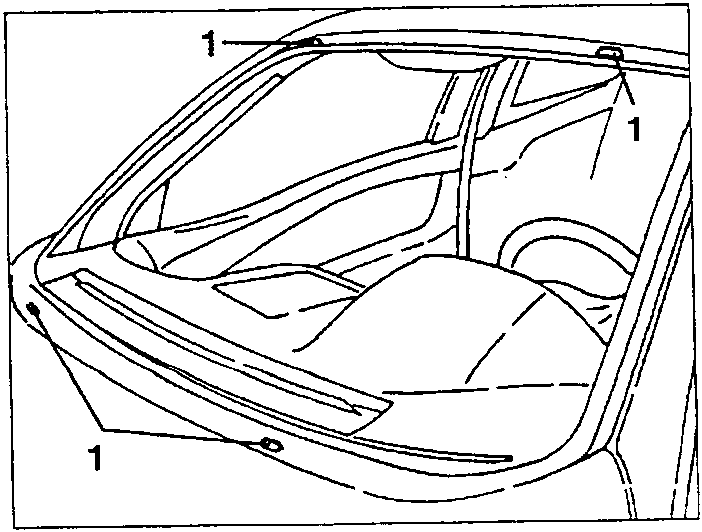

  1. Position the supports/spacers on the windscreen.
Positioning supports/spacers on windscreen.
