REAR RIGHT-HAND GRAVEL GUARD

REMOVAL/REFITTING

  1. Loosen the screw securing the rear gravel guard to the bumper.

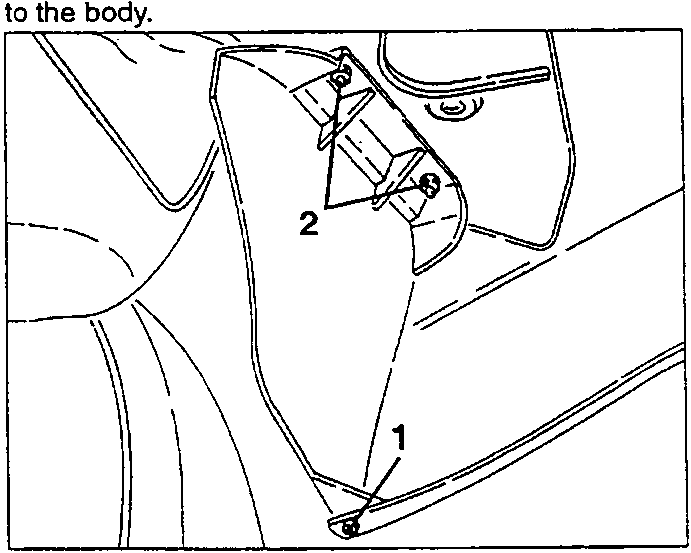

  2. Loosen the two buts securing the rear gravel guard to the body.
Rear right-hand gravel guard removal diagram showing screw and bolts

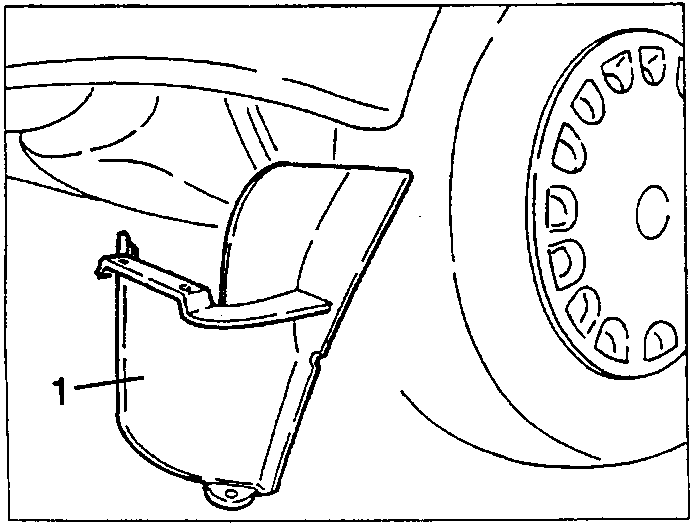

  1. Remove the rear right-hand gravel guard.
Rear right-hand gravel guard removed from vehicle

REAR LEFT-HAND GRAVEL GUARD

REMOVAL/REFITTING

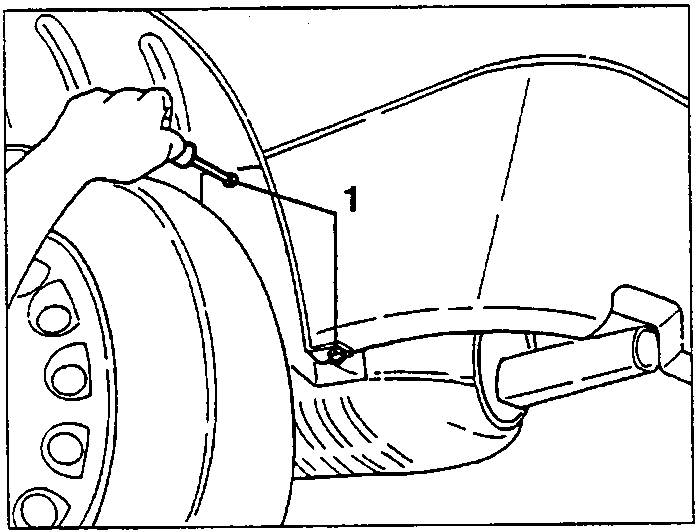

  1. Loosen the two screws securing the rear gravel guard as shown in the diagram.
Rear left-hand gravel guard removal diagram showing screws

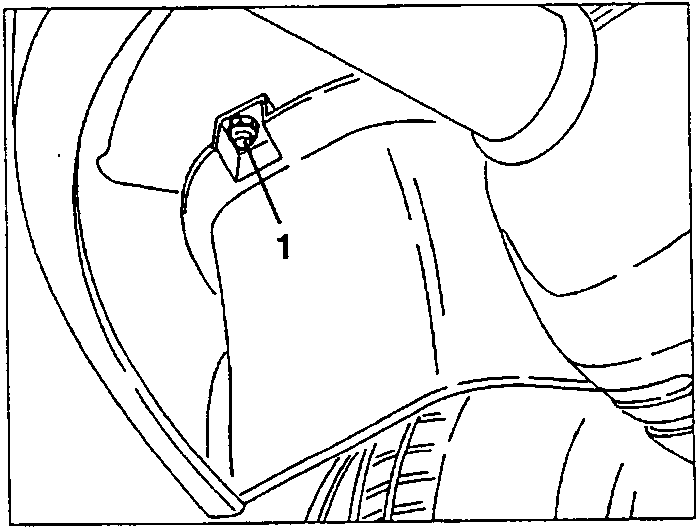

  1. Loosen the nut securing the rear gravel guard to the body.
Rear left-hand gravel guard nut removal diagram

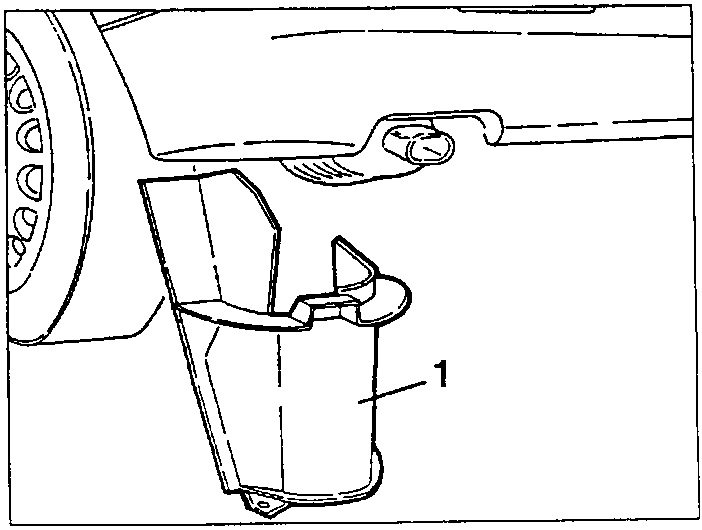

  1. Remove the rear left-hand gravel guard.
Rear left-hand gravel guard removed from vehicle

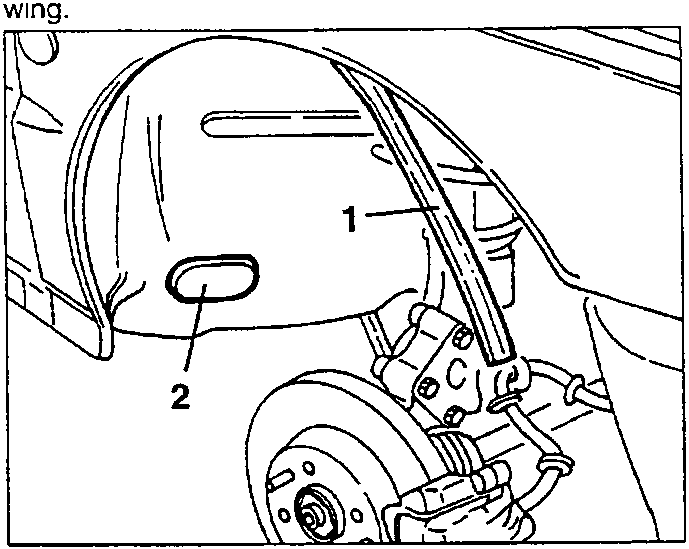

  1. Remove the seal from the front wheel housing.
  2. Check for presence and damage of the cap on the wing.
Front wheel housing with seal and cap
