Rear windscreen

REAR WINDSCREEN

REMOVAL

• Remove the internal finishing trim and the wiper arm from the rear windscreen (see specific paragraph).
• Disconnect the electrical connections from the heating element in the rear windscreen.

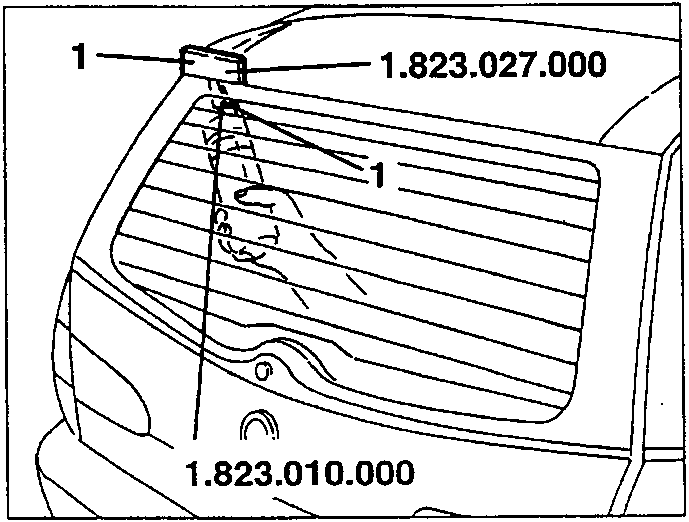

1. Using a pair of electric shears with blade N° 1.823.010.000 and tool N° 1.823.027.000, cut the sealant from the upper and lower edges.

NOTE: Adjust the cutting depth of the shears to avoid damaging the bodywork.

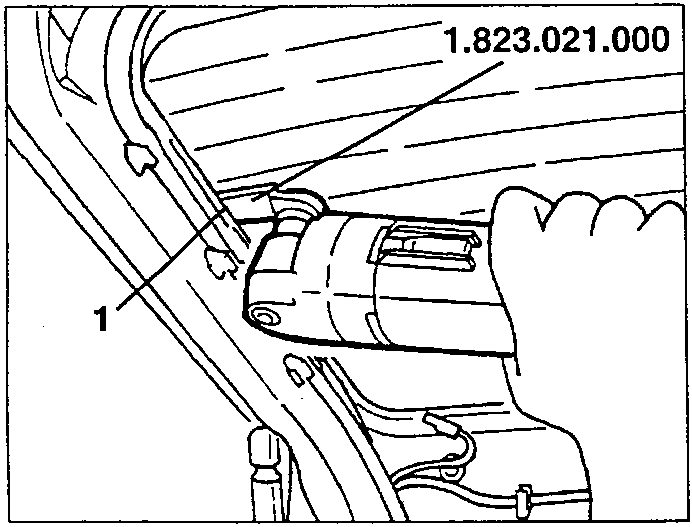

1. Using a pair of electric shears with blade N° 1.823.021.000, cut the sealant on the side edges.

NOTE: The correct use of the specified tools facilitates the removal of the heated rear windscreen without damaging the window seal strip.

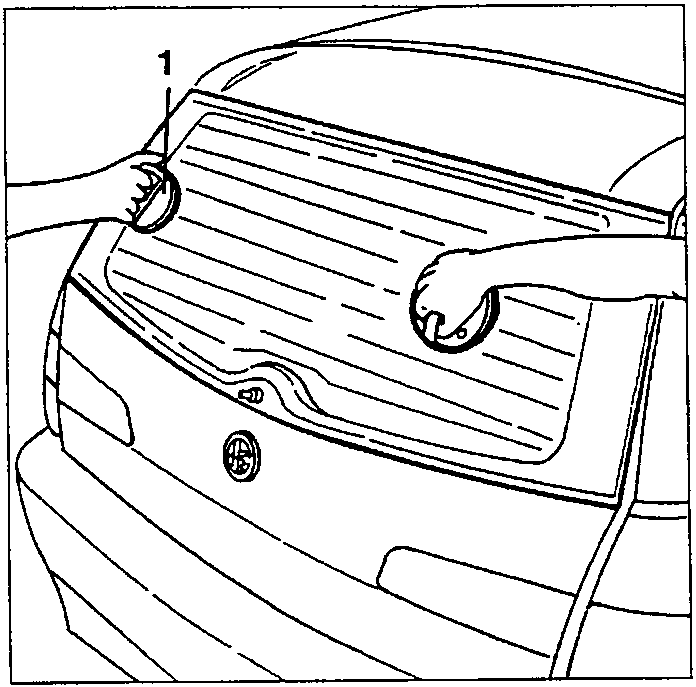

1. Using the appropriate suction cups, remove the rear windscreen.

NOTE:

It is therefore possible to re-use the windscreen even if one or more supports of the centering pins are broken or cut.

REFITTING

• Clean the edges of the mating surfaces of residues of sealant using a clean cloth or compressed air.
• Restore any damaged to the paintwork caused by the sealant cutting operations.

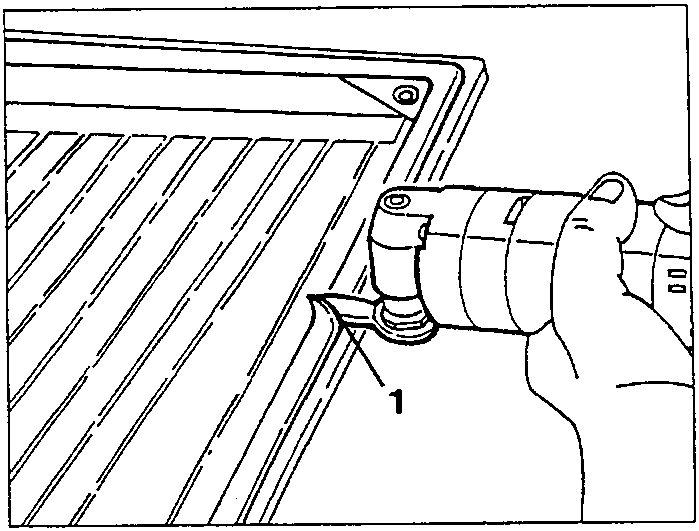

1. When re-using the original rear windscreen remove the residual sealant from the edges.

• When using a new windscreen install the four plastic centering pins.

Proceed with the gluing cycle using the special KIT supplied by Spares checking the date of expiry.
