Alfa Romeo 145/146 Factory Service Manual (1994-1999)11 · Bodywork
11 · Body & interior

Removal/refitting

Make
Alfa Romeo
Model
145/146 Factory Service Manual
Year
1994–1999
Section
External trim › Removal/refitting
BodyworkRemoval/refitting

REMOVAL/REFITTING

  • Remove the roof panel (see specific paragraph).

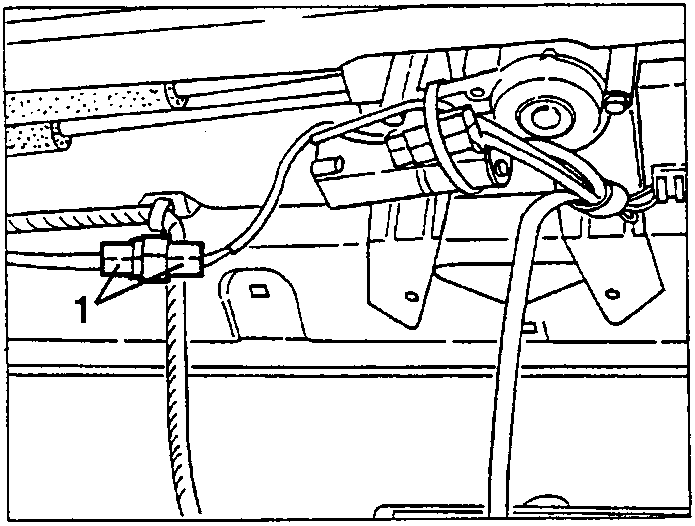

  1. Disconnect the electrical connection from the sunroof motor.
Diagram showing electrical connection to sunroof motor being disconnected.

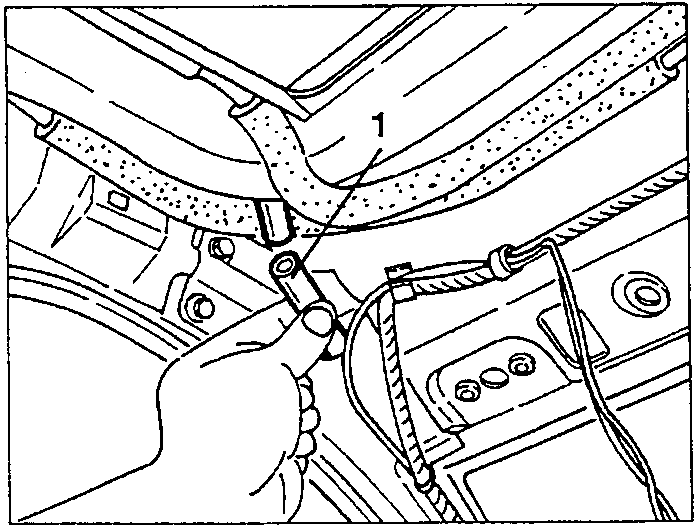

  1. Disconnect the front and rear drainage hoses.
Diagram showing hands disconnecting front and rear drainage hoses.

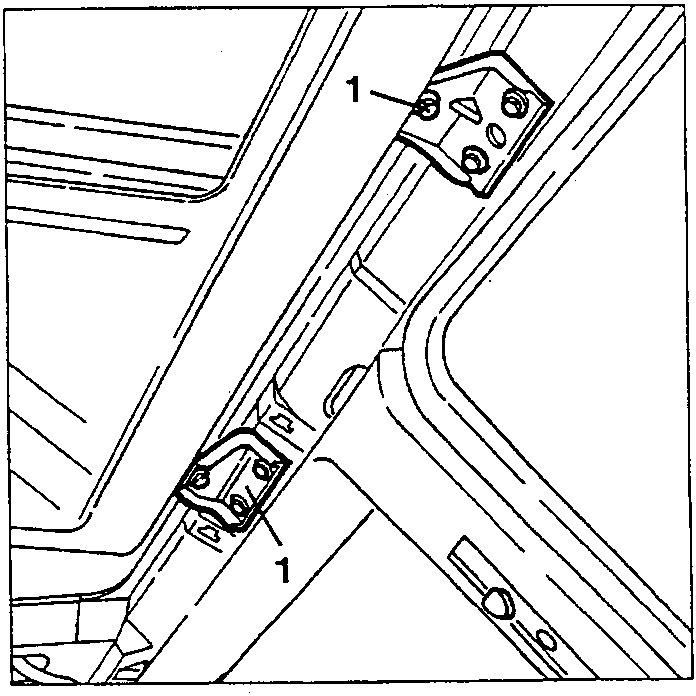

  1. Loosen the screws securing the side brackets supporting the sunroof and remove the screws.
Diagram showing side brackets with screws being loosened and removed.

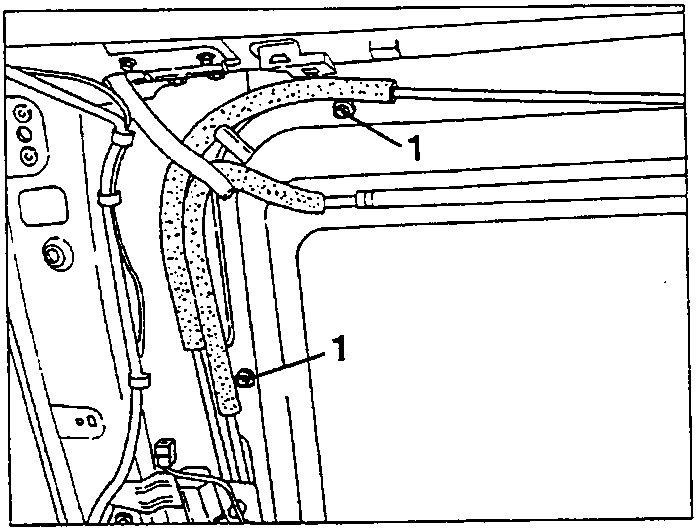

  1. Loosen the four side screws and the two front screws securing the sunroof.
Diagram showing screws securing the sunroof being loosened.

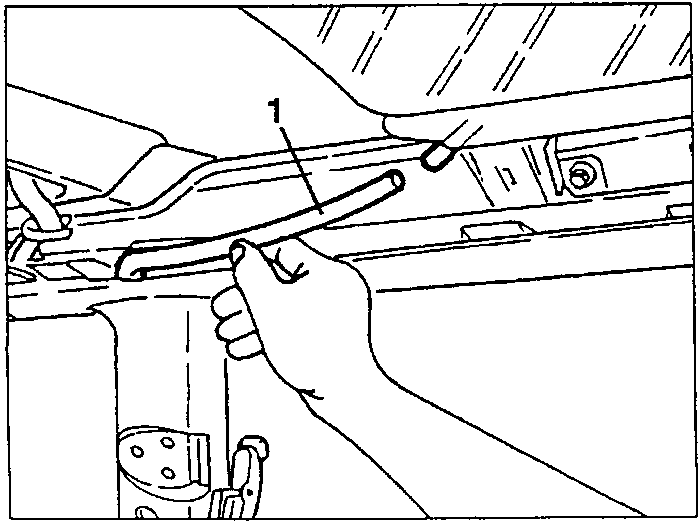

Diagram showing a hand prying open a trim panel.

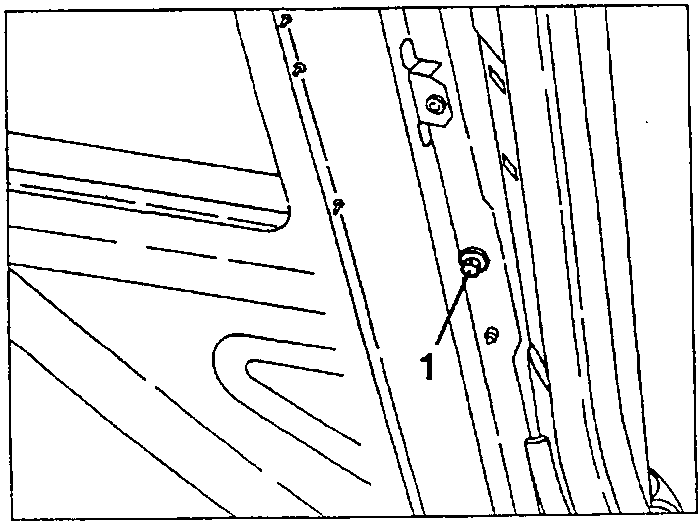

Diagram showing a screw being removed from a trim panel.
