Runners and Racks

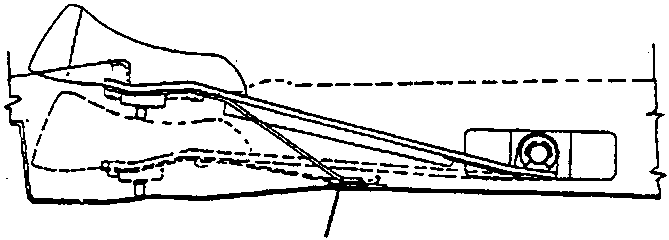

When refitting reverse the procedure followed for removal and note the following:

1. Grease the mating surfaces between the flexible spring and frame.

Runners and Racks

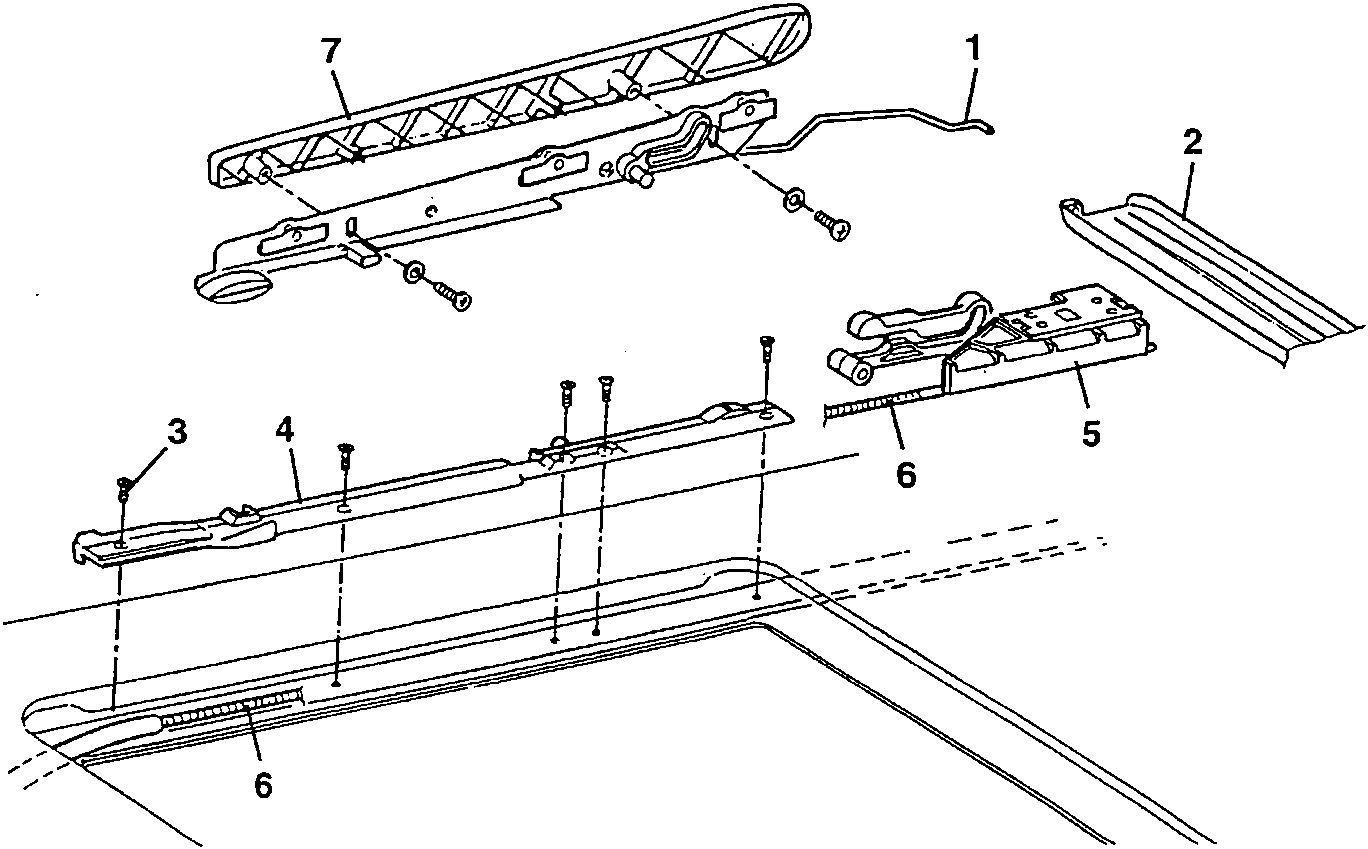

Removal/Refitting

• Remove the glass panel (see specific paragraph).
• Remove the sliding blind (see specific paragraph).
• Remove the electric motor (see specific paragraph).

1. Free the water connection channel from the two connecting pins holding it to the runners.
2. Back-off the channel.
3. Loosen the five screws moving the runners bit by bit to enable them to be removed.
4. Remove the guides.
5. Remove the entire runner.
6. Withdraw the flexible rack from the guide track.
7. If necessary loosen the two screws and separate the external moulding.
