BodyworkDoor sill covering

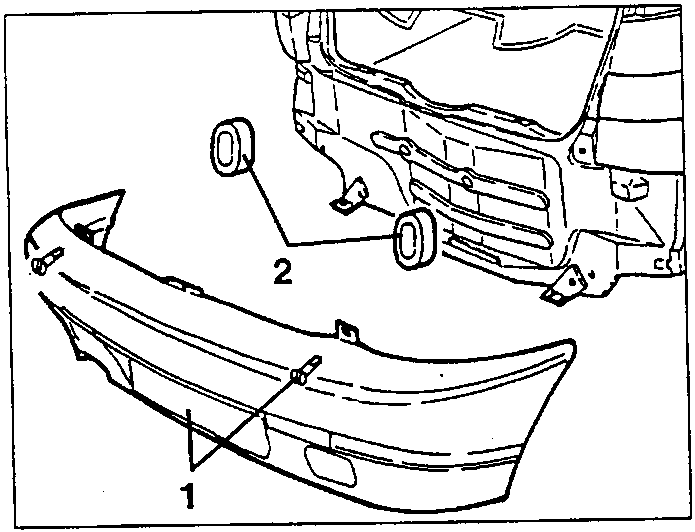

  1. Working with the boot lid raised, loosen the two upper screws and remove the bumper.
  2. Remove the two rubber energy absorbing buffers.
Diagram showing bumper removal with labeled parts 1 and 2

DOOR SILL COVERING

REMOVAL/REFITTING

  • Position the vehicle on a four-column bridge.

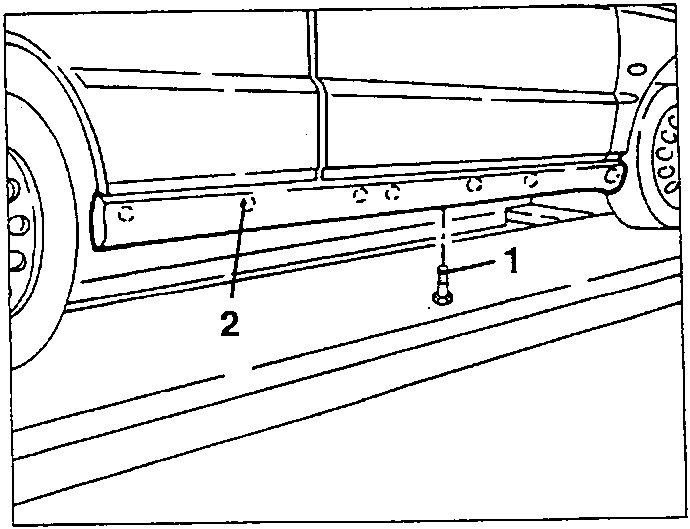

  1. Loosen the screws securing the door sill covering.
  2. Pull off the plastic buttons located in the positions shown in the diagram and remove the door sill covering.
Diagram showing door sill covering removal with labeled parts 1 and 2

FRONT GRAVEL GUARD

REMOVAL/REFITTING

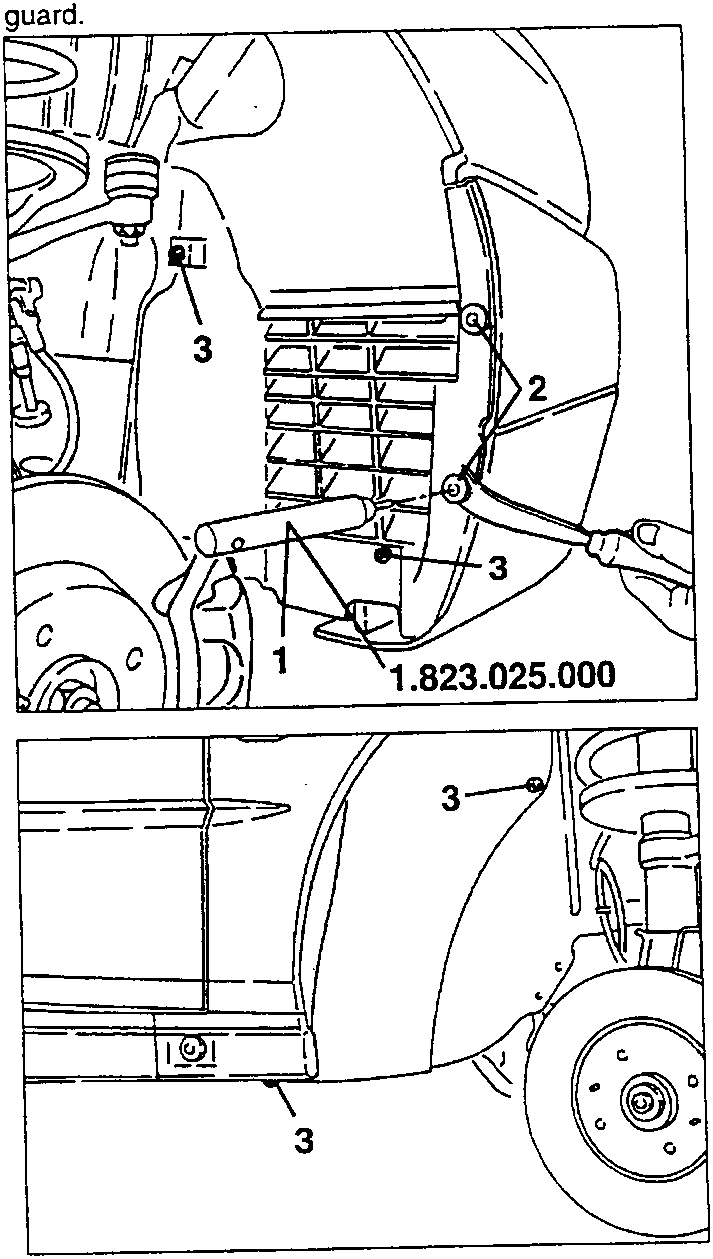

  1. Using tool No. 1.823.025.000 release the clips of the centre part of the plastic nails fastening the side bumpers to the gravel guard.
  2. Remove the above-mentioned nails using the special tool.
Illustrates removal/installation of engine guard component
Diagram showing front gravel guard removal with labeled part 1
  1. Loosen the four screws securing the front gravel guard.
Diagram showing front gravel guard screws with labeled parts 1, 2, and 3

1.823.025.000

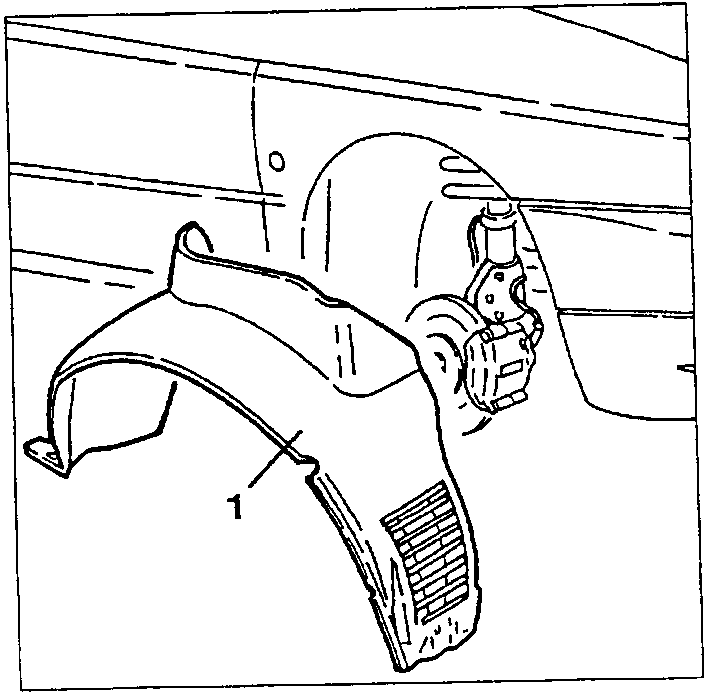

  1. Remove the front gravel guard.
Diagram showing front gravel guard removal with labeled part 1
