Water drainage hoses

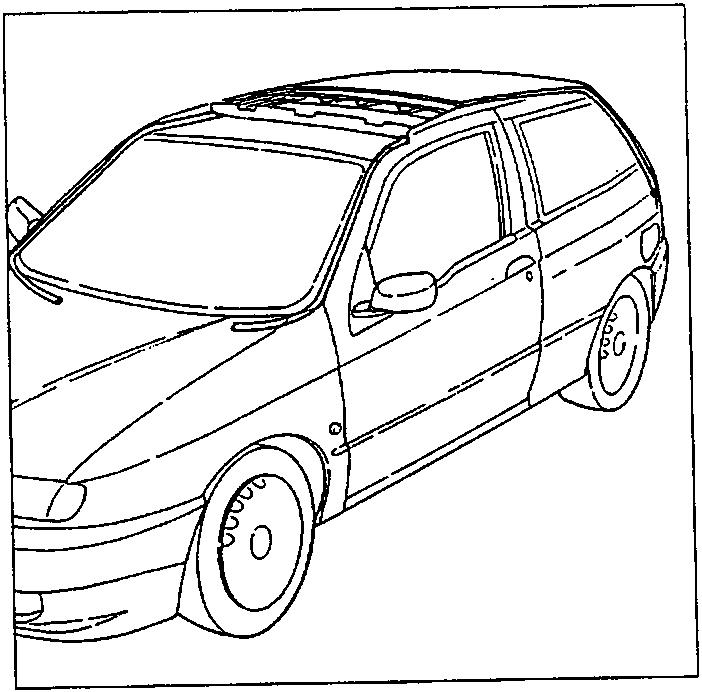

1. Remove the sunroof through the right-hand door.

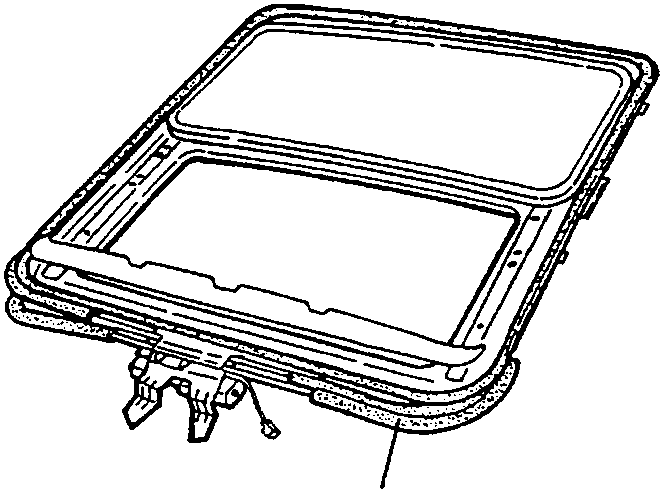

NOTE: When refitting the sunroof check that the seals are present around the edge, that the tubular seals are present on the rack guides and the vibration buffers are on the centering pins.

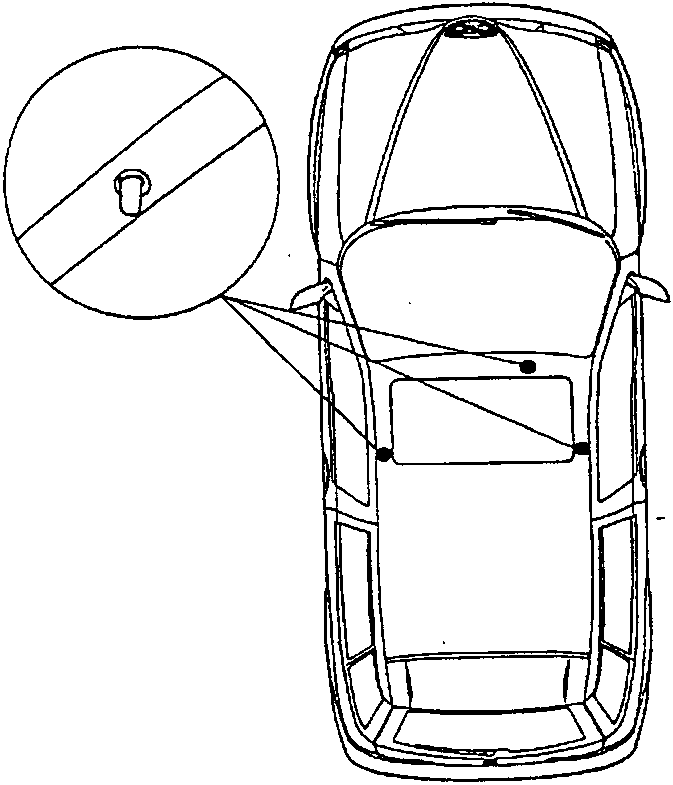

When refitting position the sunroof in the vehicle using the three centering pins as reference marks.

• After refitting check the alignment of the sunroof and that it works correctly.

WATER DRAINAGE HOSES

Removal/Refitting

• Remove the roof panel (see specific paragraph).

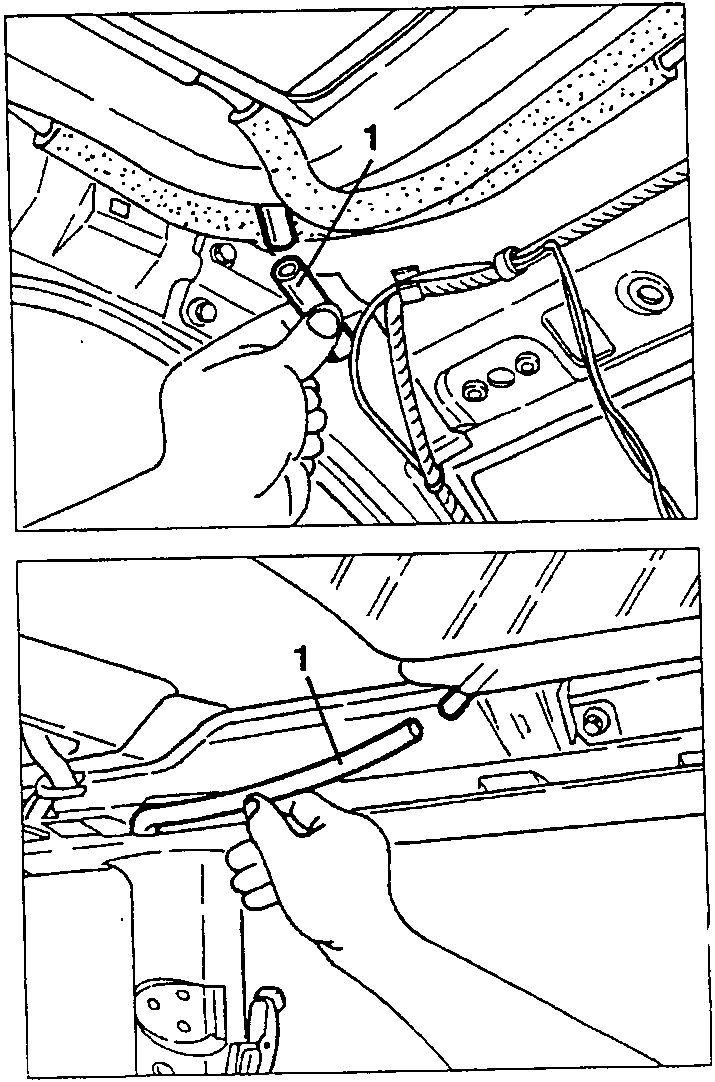

1. Disconnect the front and rear drainage hoses from the sunroof and withdraw them.
