BodyworkRadiator grille

RADIATOR GRILLE

REMOVAL/REFITTING

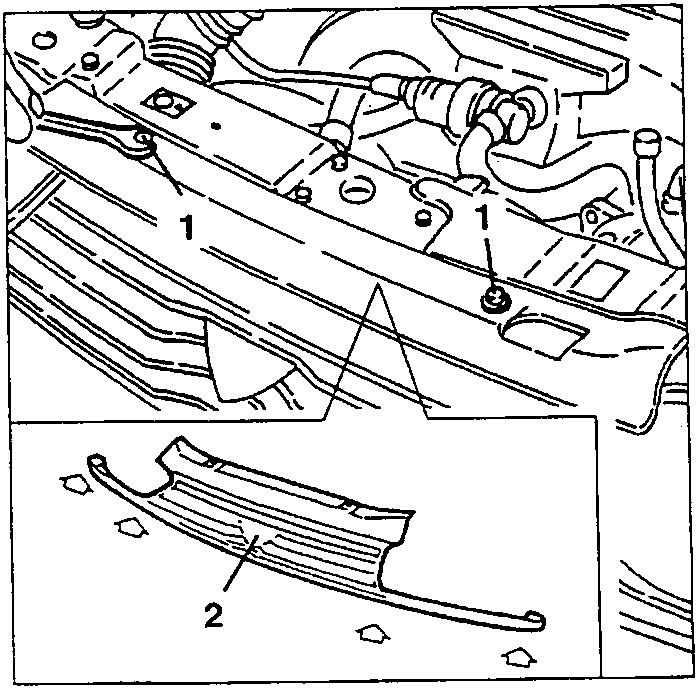

  1. Working with the bonnet raised, loosen the two screws securing the radiator grille.
  2. Pull the radiator grille away from the clips positioned as shown in the diagram and remove the grille.
Radiator grille removal diagram showing screws and clips

AIR INTAKE GRILLE

REMOVAL/REFITTING

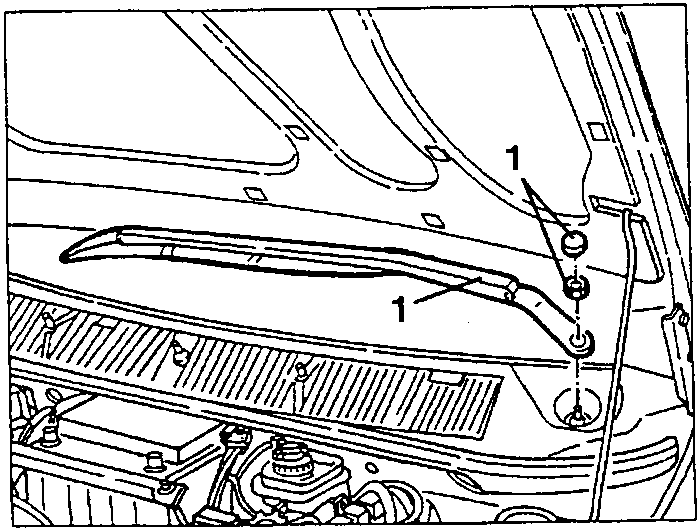

  1. Working with the bonnet open, pull off the protective caps and loosen the nuts securing the windscreen wiper arms and then remove the windscreen wiper arms.
Air intake grille removal diagram showing nuts and wiper arms

BONNET GRILLE

REMOVAL/REFITTING

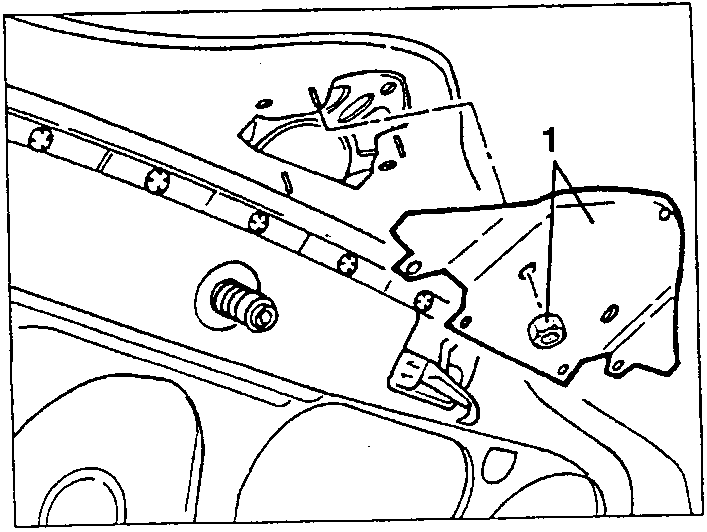

  1. Working with the bonnet in the upright position loosen the three nuts securing the grille and pull off the internal plastic covering.
Bonnet grille removal diagram showing nuts and plastic covering
Radiator grille removal diagram showing screws and clips

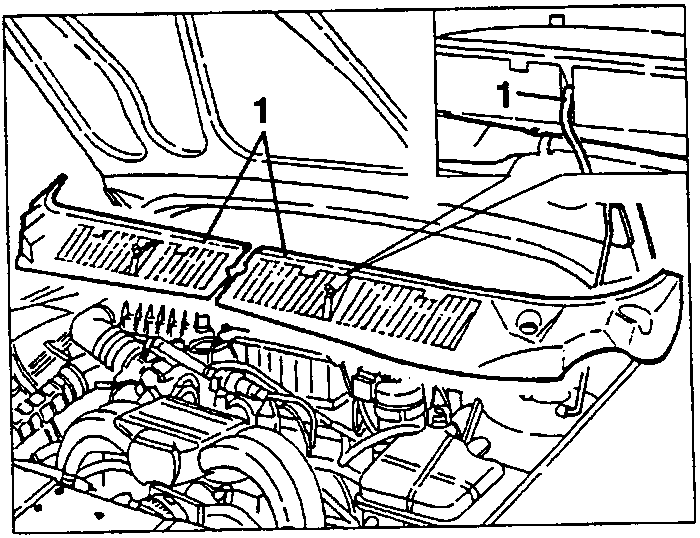

  1. Pull off the two parts of the air intake grille and remove them after disconnecting the spray hoses.
Air intake grille removal diagram showing spray hoses and grille

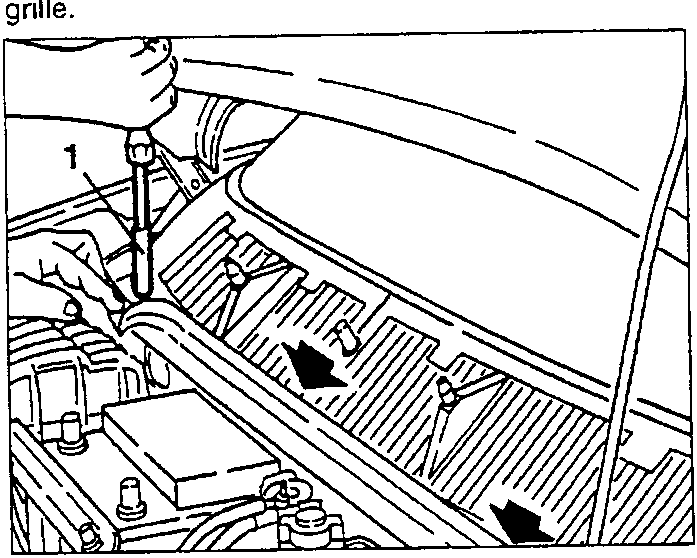

  1. Loosen the three screws securing the air intake
