FRONT DOORS

REMOVAL AND REFITTING

NOTE: When removing or refitting avoid damaging the paintwork.

  • Disconnect the negative (-) lead from the battery.
  1. Using a suitable tool withdraw and remove the pin from the door check strap, half-close the door to back-off the rod and then open the door again.

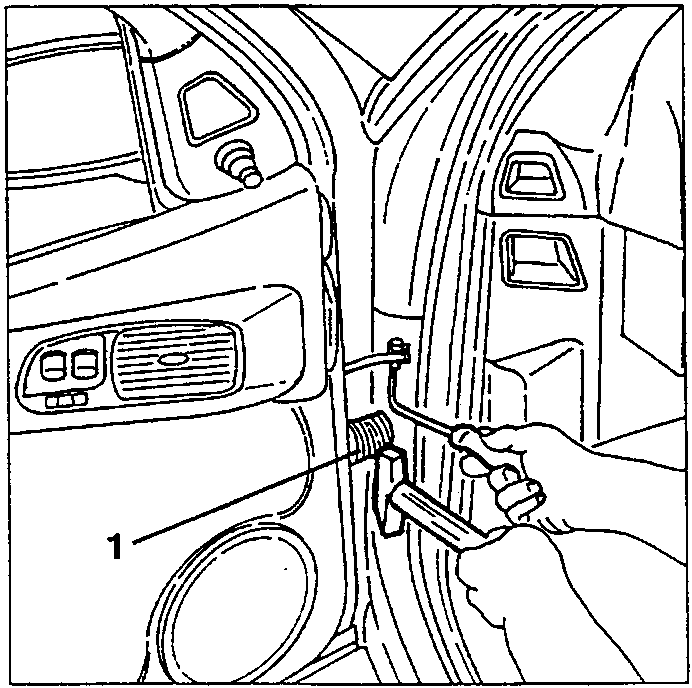

Withdrawing the pin 1 from the door check strap with a suitable tool
  1. Disconnect the cable runner from the front pillar.

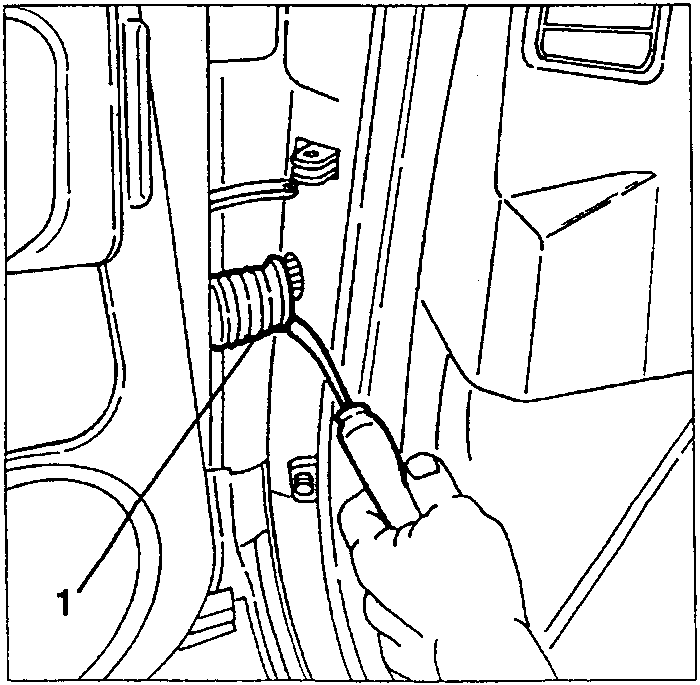

Disconnecting the cable runner 1 from the front pillar
  1. Working under the dashboard trim, disconnect the electrical connection from the door wiring and withdraw the pillar.

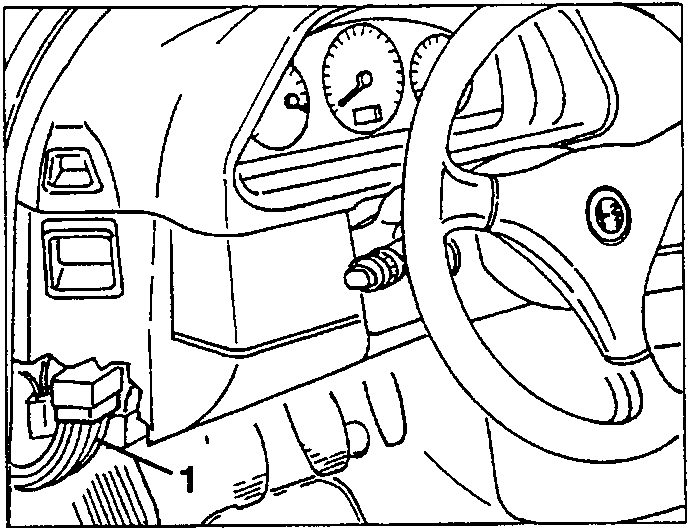

Electrical connection 1 of the door wiring under the dashboard trim
  1. Loosen the two screws securing the door to the hinge.

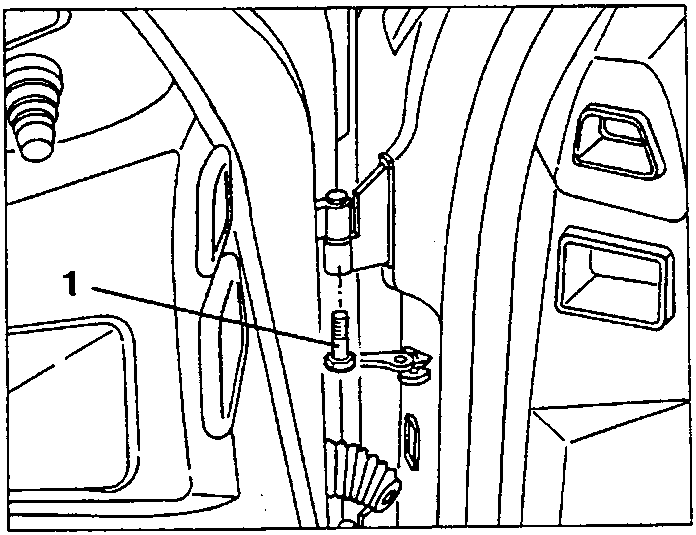

Screw 1 securing the door to the hinge
  1. Raise the door until the tapered pins of the hinges can be removed from their seatings and then remove the door.

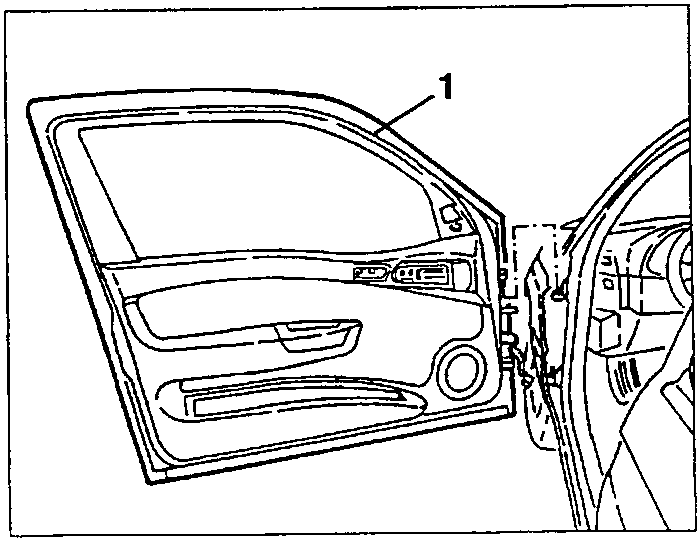

Removing the door from the hinge pins 1
