Adjustment

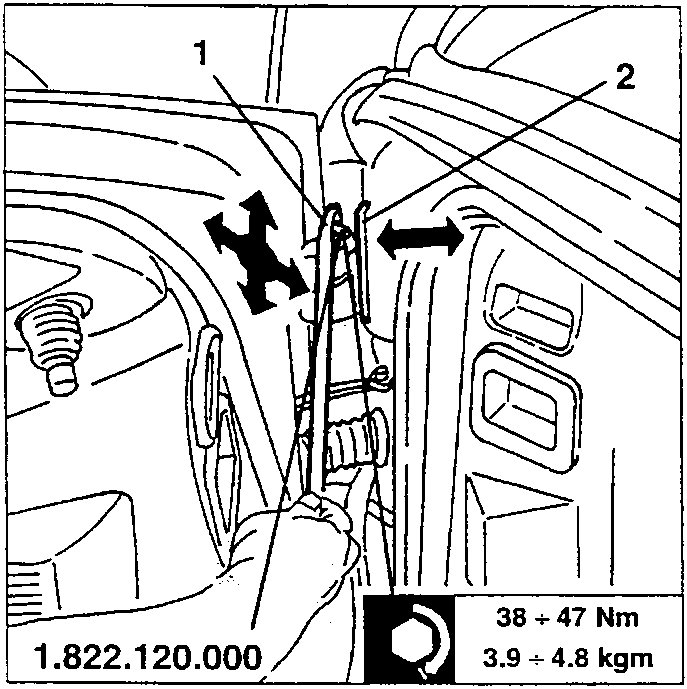

ADJUSTMENT

1. Using tool N° 1.822.120.000, loosen the screws securing the hinge to the body and make adjustments for the height and width of the door.
2. If necessary position suitable shims under the hinges to adjust the position of the door.

1.822.120.000

38 ÷ 47 Nm
3.9 ÷ 4.8 kgm

NOTE:
To gain access to the screws of the upper hinge, disconnect the door check strap.

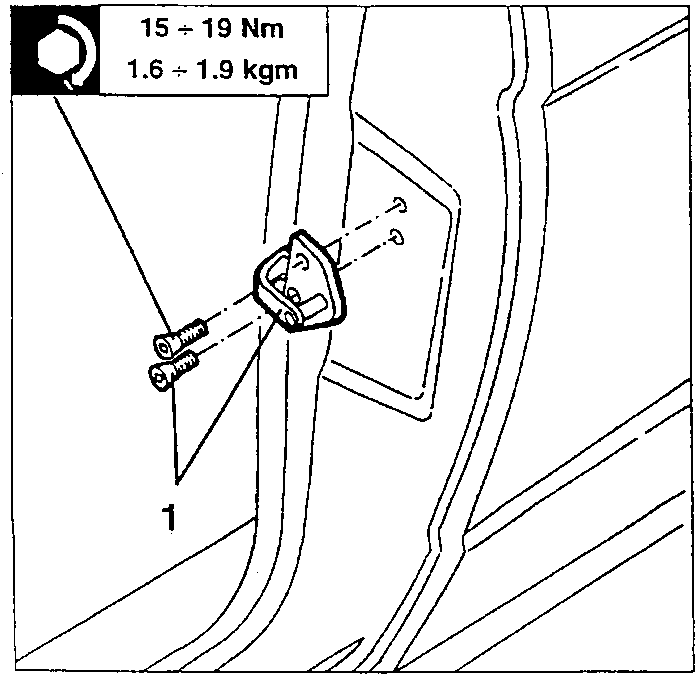

DOOR CATCH

REMOVAL AND REFITTING

1. Loosen the two screws and remove the catch.

15 ÷ 19 Nm
1.6 ÷ 1.9 kgm

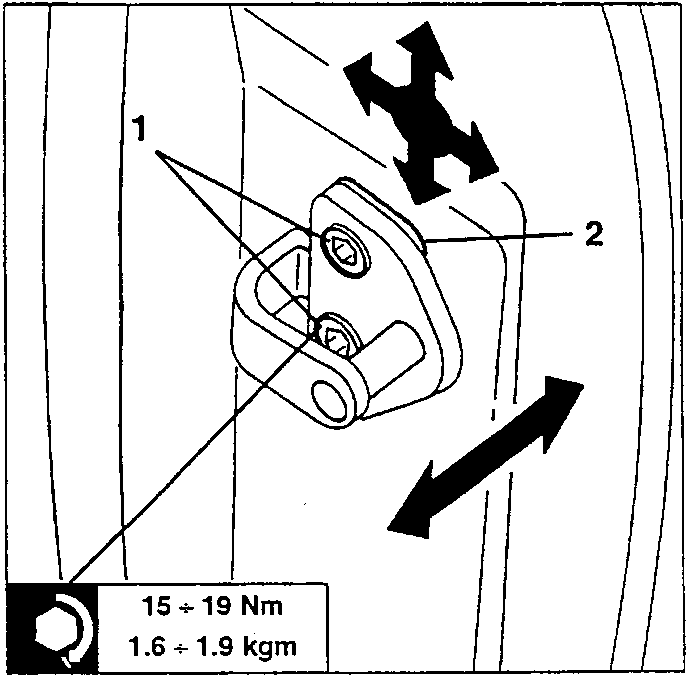

ADJUSTMENT

1. Loosen the screws securing the catch and adjust the catch until the door closes correctly. Tighten the screws.
2. If necessary position suitable shims under the catch to adjust the closure of the door.

15 ÷ 19 Nm
1.6 ÷ 1.9 kgm

PANEL

REMOVAL AND REFITTING

• Disconnect the negative (-) lead from the battery.

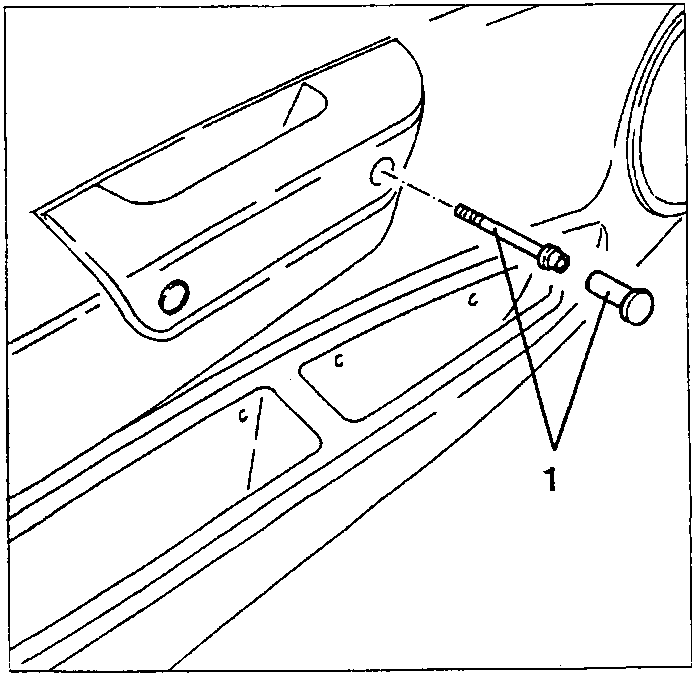

1. Pull off the plastic caps from the armrest grip and unscrew the underlying screws.
