FRONT GUIDE PAD

REMOVAL AND REFITTING

  • Remove the window (see specific paragraph).
  1. Pull off the gasket from the front window guide pad.

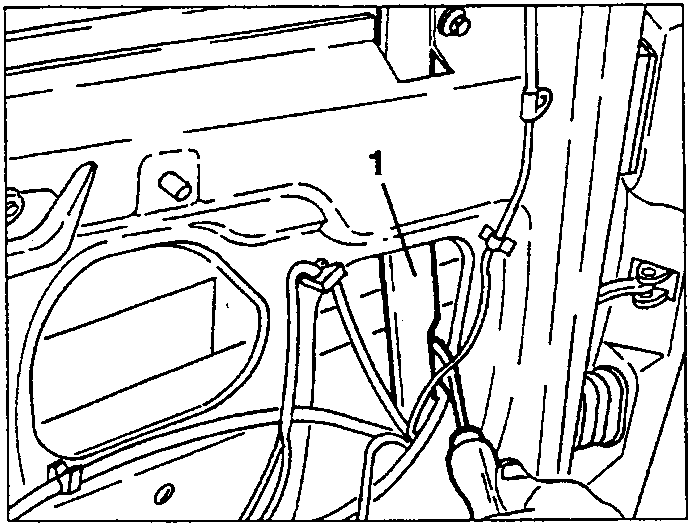

Front window guide pad with screws and gasket

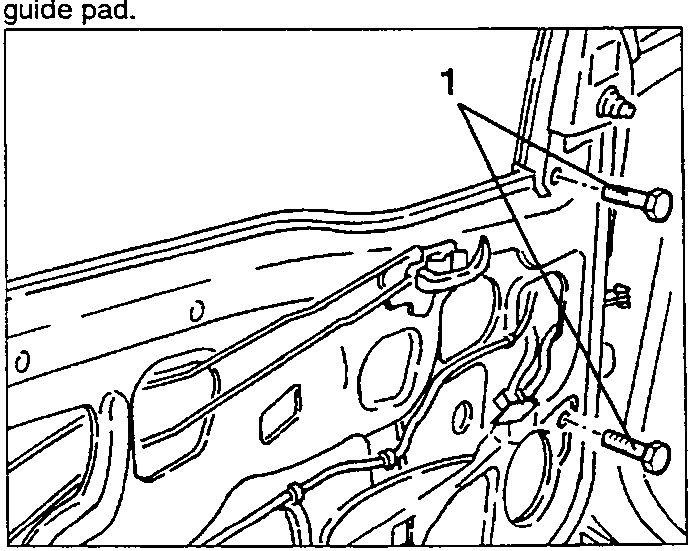

  1. Loosen the two screws securing the front window guide pad.
Illustrates guide pad installation on engine block

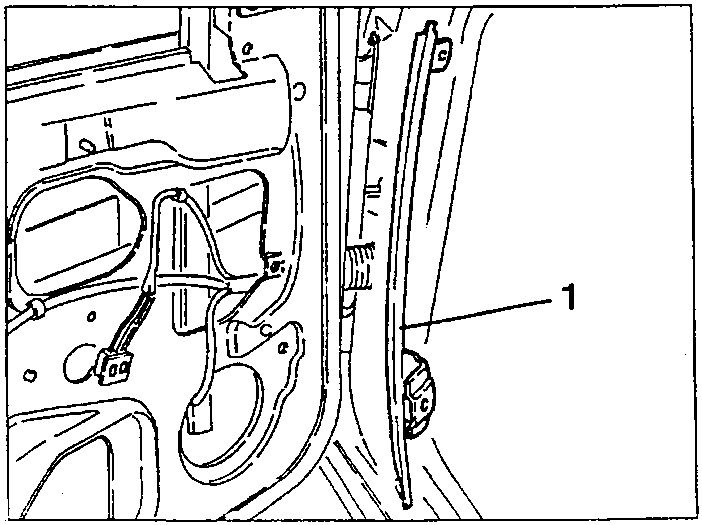

Front window guide pad being withdrawn from inside the door
  1. Remove the front window guide pad by withdrawing it from inside the door.

REAR GUIDE PAD

REMOVAL AND REFITTING

  • Remove the panel (see specific paragraph).
  • Partially detach the opaline from the upper rear part of the door.
  1. Loosen the two screws securing the rear window guide pad and remove it.

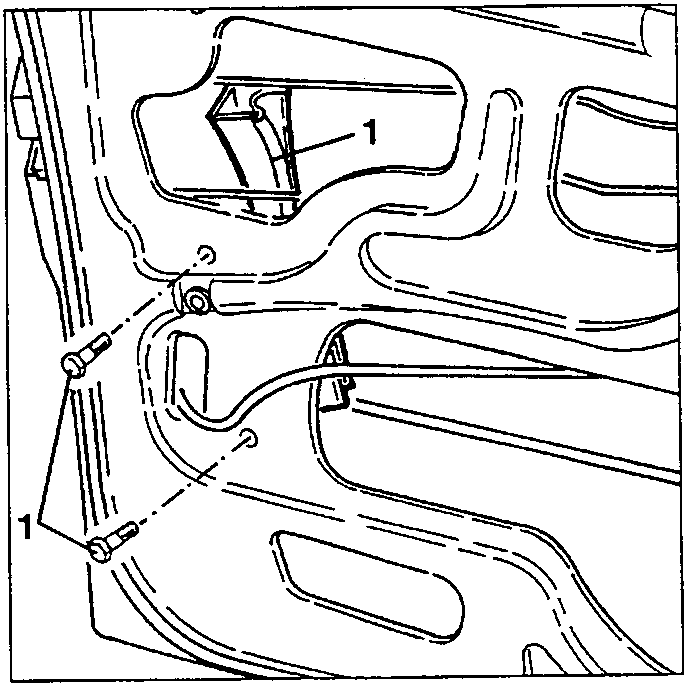

Rear window guide pad with screws

LOCK DEVICE

REMOVAL AND REFITTING

  • Remove the rear window guide pad (see specific paragraph).
  1. Disconnect the check strap from the lock block from the lock device.

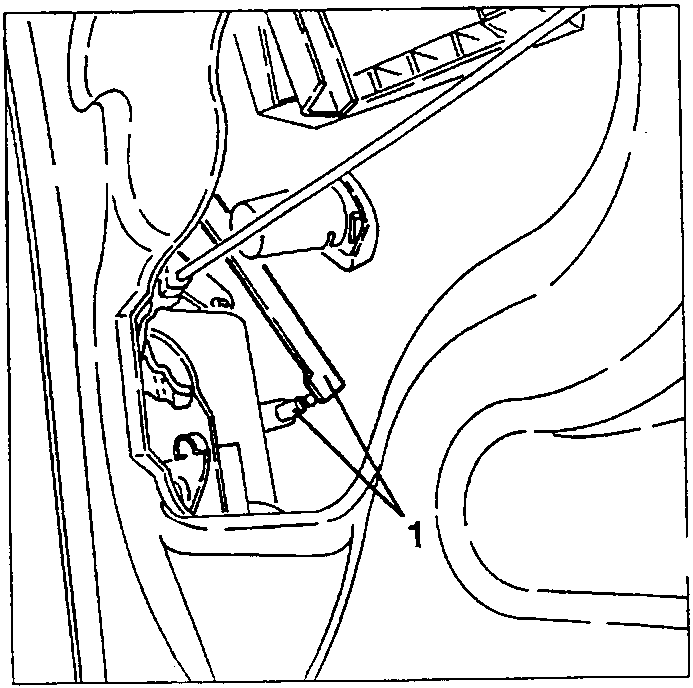

Lock device with check strap disconnected
