Workshop Manuals Factory service & repair Alfa Romeo
Alfa Romeo 145/146 Factory Service Manual (1994-1999)11 · Bodywork
11 · Body & interior

Disassembly

Make
Alfa Romeo
Model
145/146 Factory Service Manual
Year
1994–1999
Section
Doors › Disassembly
BodyworkDisassembly · page 1 of 2

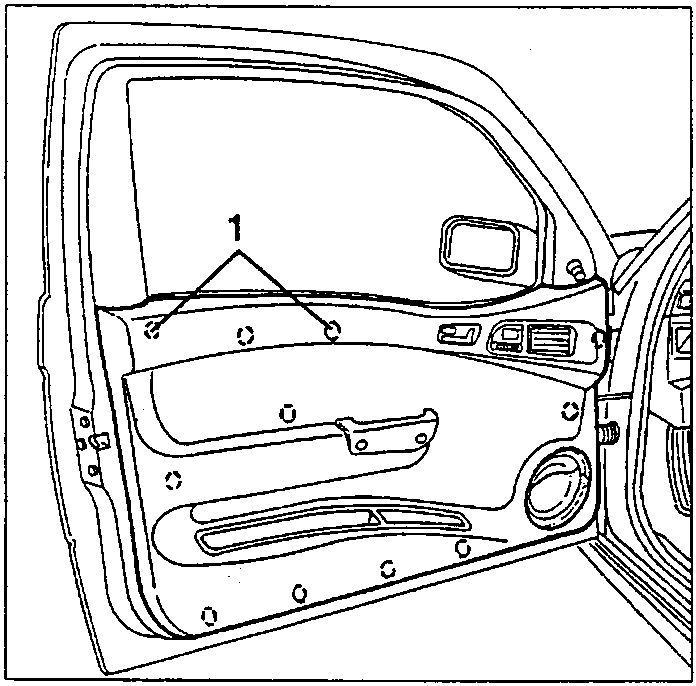

  1. Pull the panel away from the plastic buttons positioned as shown in the diagram and remove the panel.
Diagram showing door panel with plastic buttons and screw locations

DISASSEMBLY

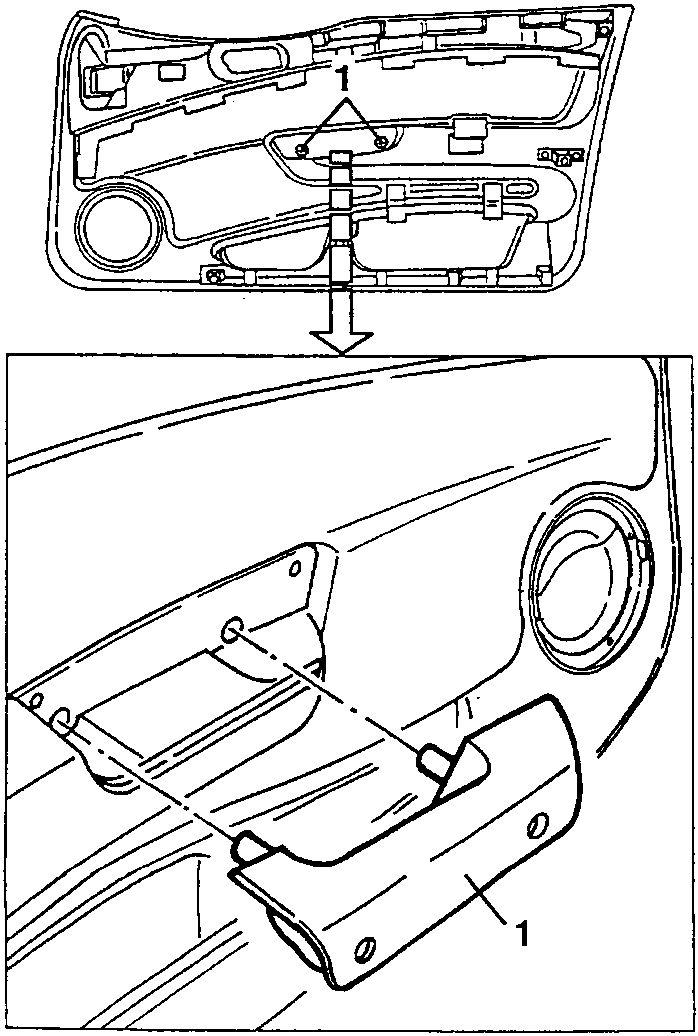

  1. Loosen the two screws and remove the armrest handle.
Diagram showing removal of armrest handle from door panel

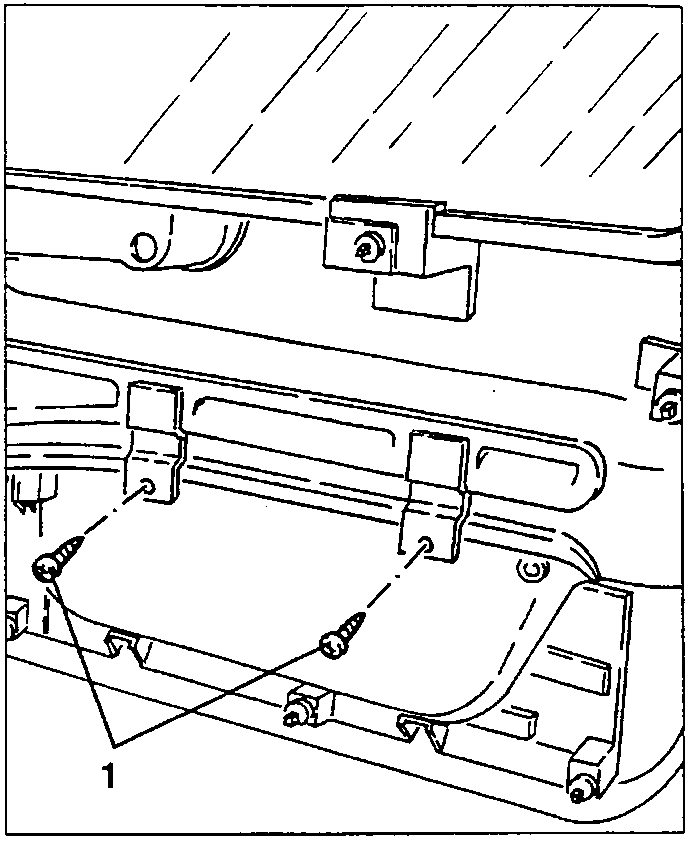

  1. Loosen the two rear screws securing the object pouch.
Diagram showing rear screws securing object pouch

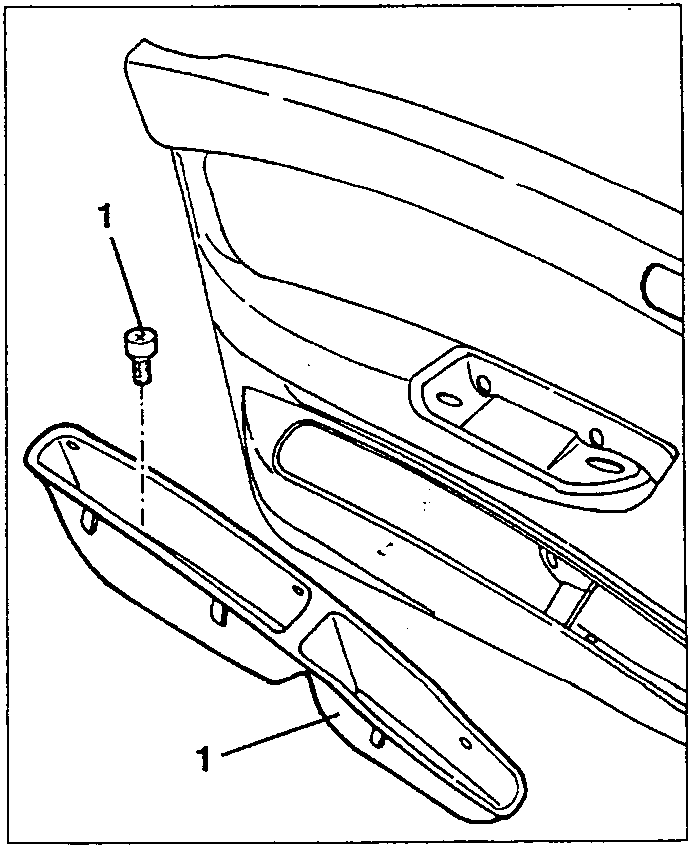

  1. Loosen the three rear screws securing the object pouch and remove it.
Diagram showing removal of object pouch from door panel
