BodyworkWindow runner seal strips
  1. Loosen the screws securing the moulding.
  2. Pull off the moulding from the plastic buttons positioned as shown in the diagram and remove the moulding.

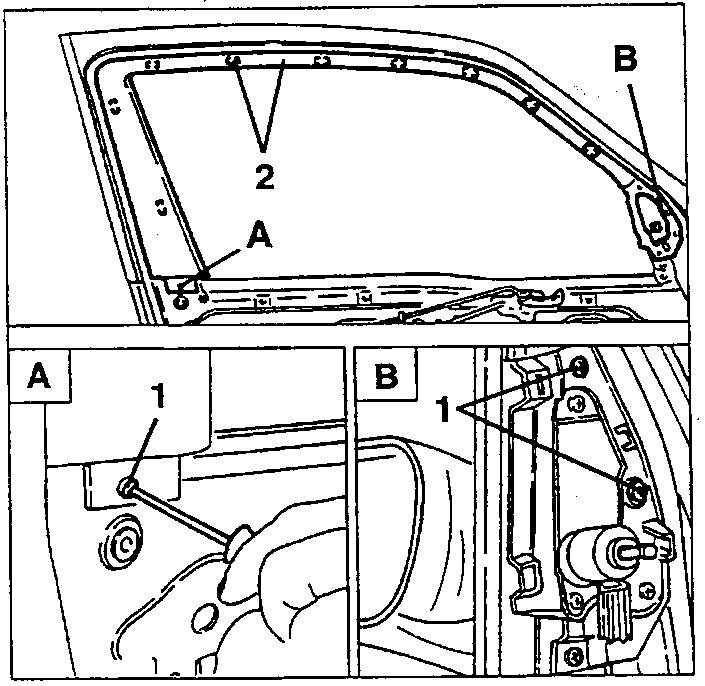

Door window frame with moulding, plastic button positions 2 and details A and B showing the screws 1

WINDOW RUNNER SEAL STRIPS

REMOVAL AND REFITTING

  • Remove the trim moulding and the door mirror (see specific paragraphs).
  • Remove the weather strip and window (see specific paragraphs).
  1. Pull off the window runner strips beginning from the front part.

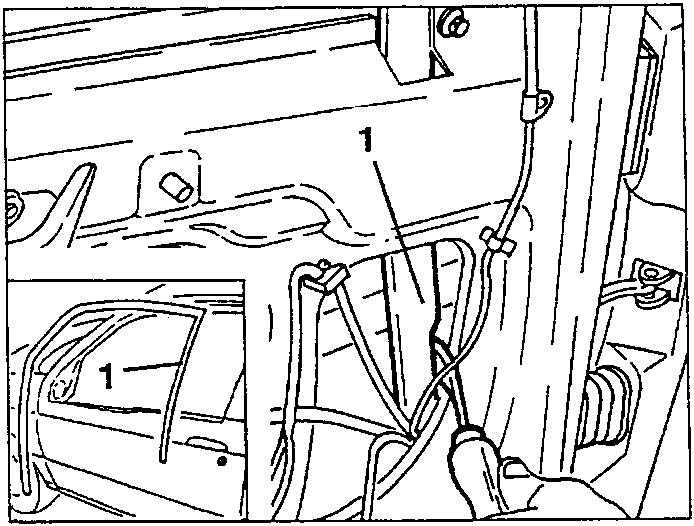

Pulling off the window runner strip 1 inside the door

WEATHER STRIPS

REMOVAL AND REFITTING

  1. Remove the external weather strip by pulling it out from it seating.

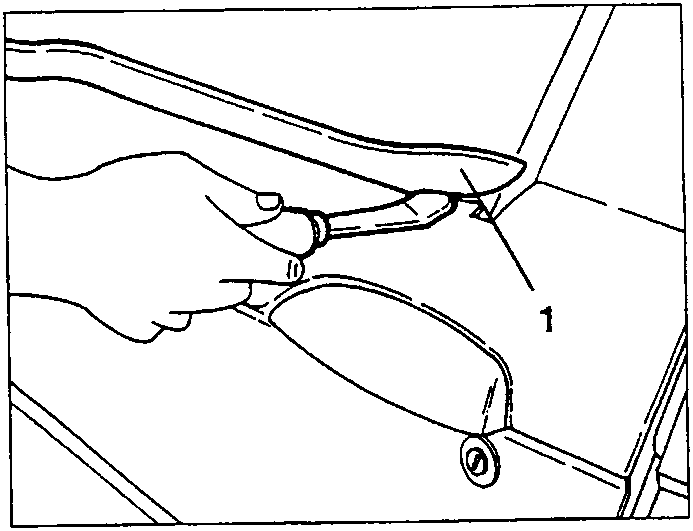

Pulling the external weather strip 1 out of its seating with a screwdriver
  1. Remove the panel and pull off the internal weather strip.

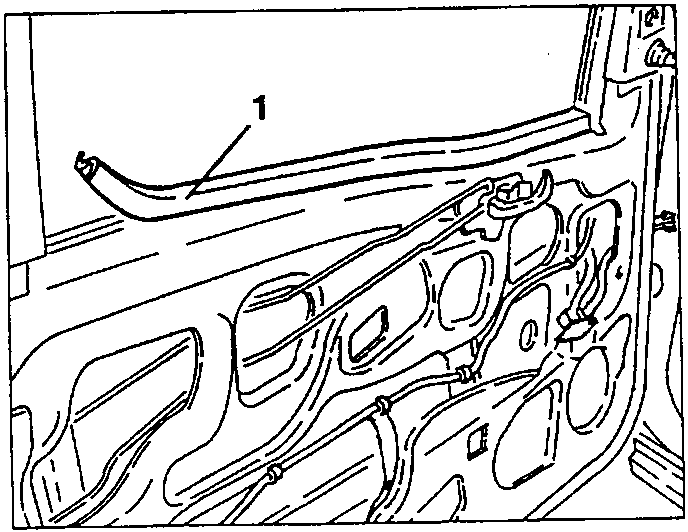

Internal weather strip 1 on the door with the panel removed

NOISE REDUCING SEAL STRIP

REMOVAL AND REFITTING

  1. Pull off the plastic buttons and remove the noise reducing seal strip.

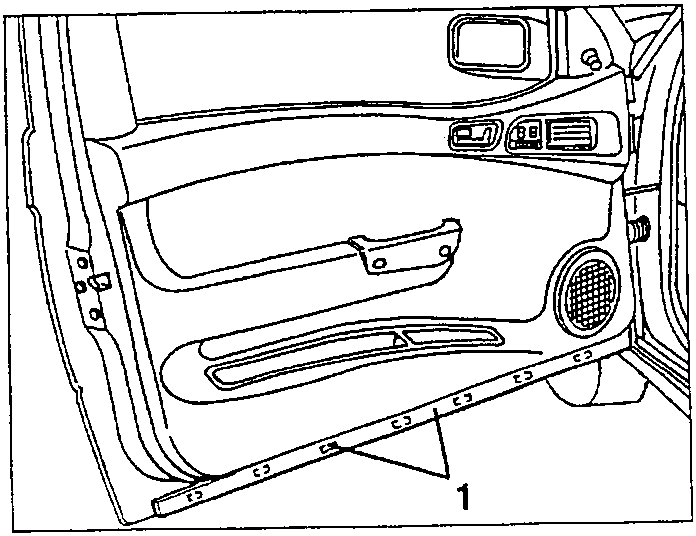

Door trim with the noise reducing seal strip 1 along the lower edge
