Window

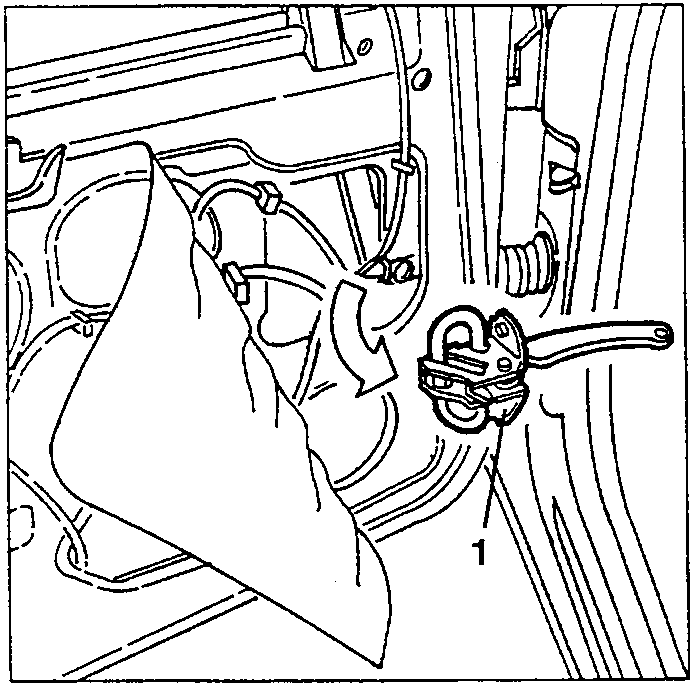

1. Withdraw the check strap from inside the door.

When refitting reverse the procedure followed for removal and note the following:

• Before refitting the door check-strap, treat the mating areas of the check strap with primer.
• If the glue of the opaline is no longer able to guarantee perfect bonding, replace it.

WINDOW

REMOVAL AND REFITTING

• Remove the panel (see specific paragraph).

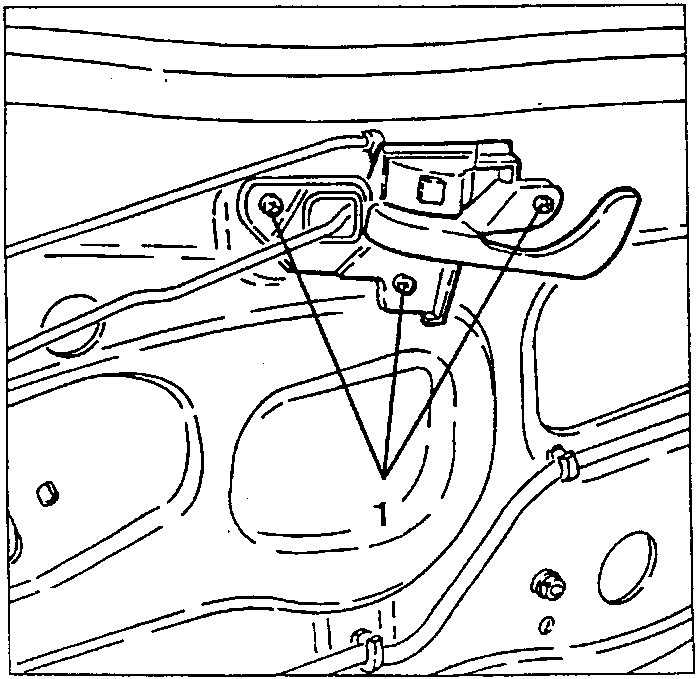

1. Loosen the three screws securing the internal handle and free it from the retaining device.

• Detach the opaline ensuring that it does not get damaged.

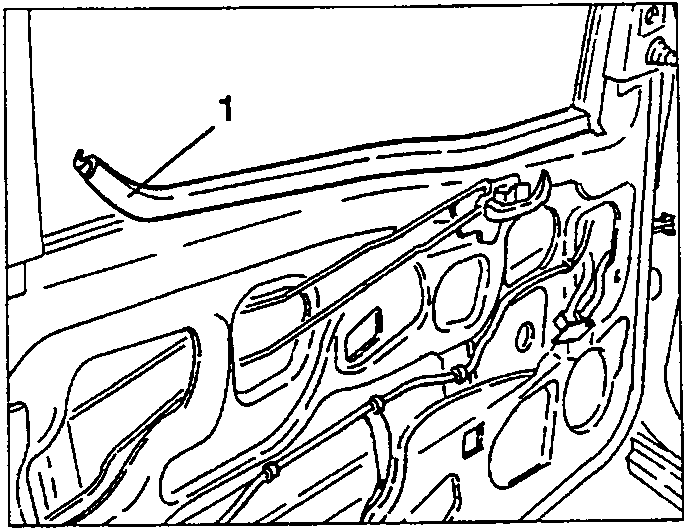

1. Remove the door window weatherstrip.

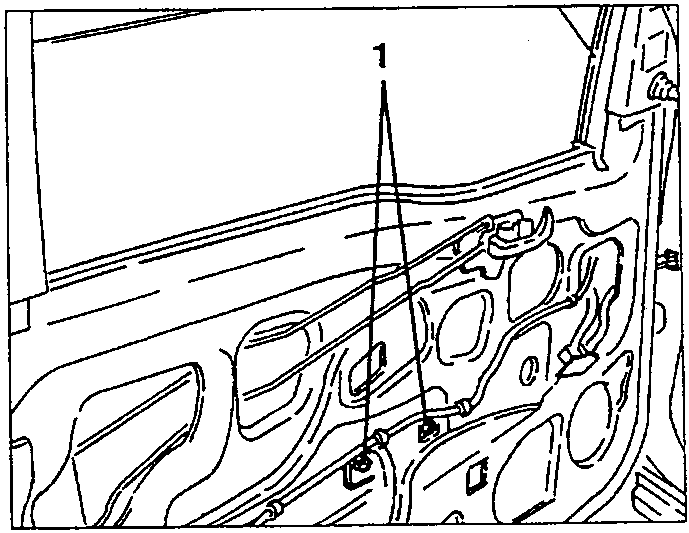

1. Momentarily connect the battery and the power window buttons and position the window so that access can be gained to the retaining screws as shown in the diagram.

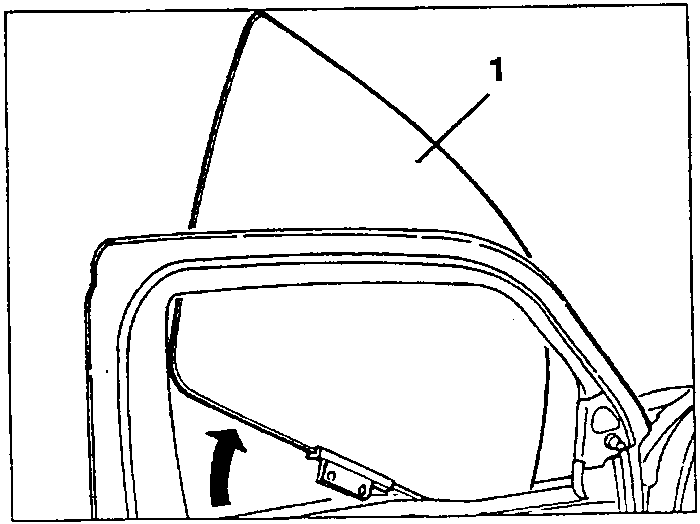

1. Remove the glass by pulling it upwards and mount it to facilitate removal.
