DOOR CHECK-STRAP

REMOVAL AND REFITTING

  • Remove the panel (see specific paragraph).

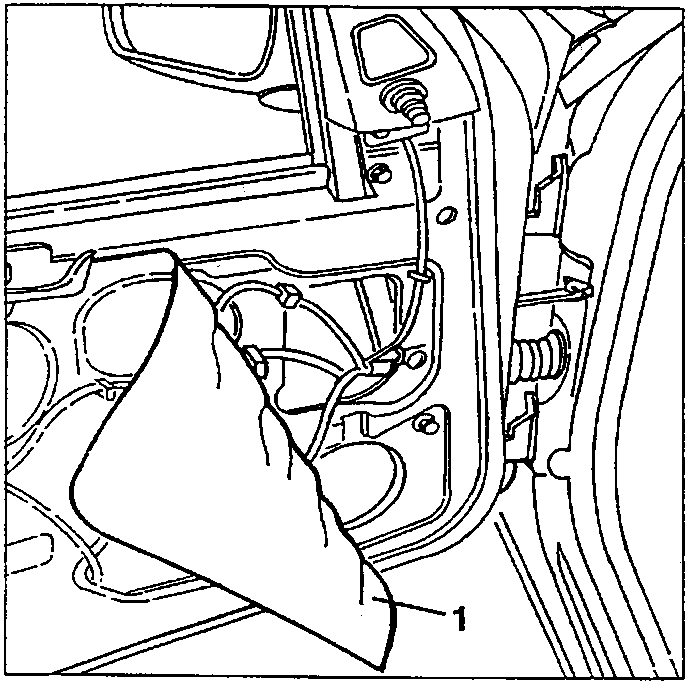

  1. Partially detach the opaline without damaging it.
Diagram showing partial detachment of opaline from door check-strap area

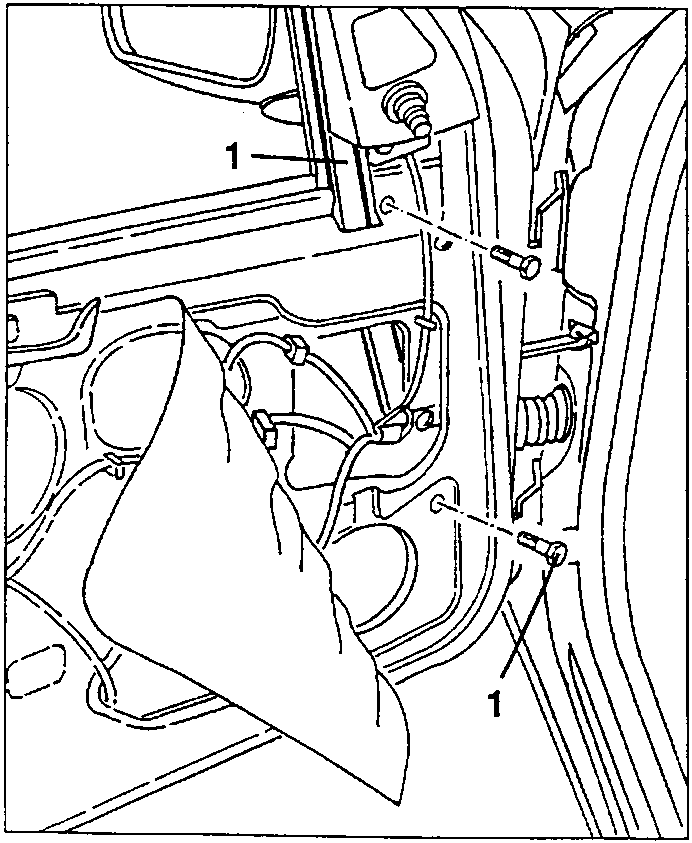

  1. Loosen the two screws securing the door window runner and move it as required.
Diagram showing loosening screws on door window runner

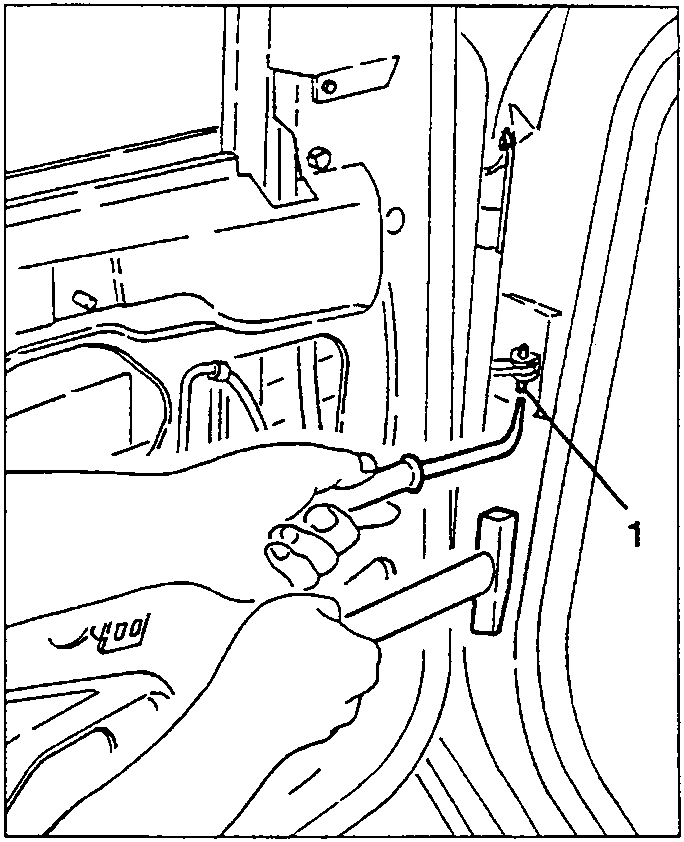

  1. Using a suitable tool, withdraw and remove the pin from the door check strap, half-close the door to back-off the rod and then open the door once again.
Diagram showing removal of pin from door check-strap using tool

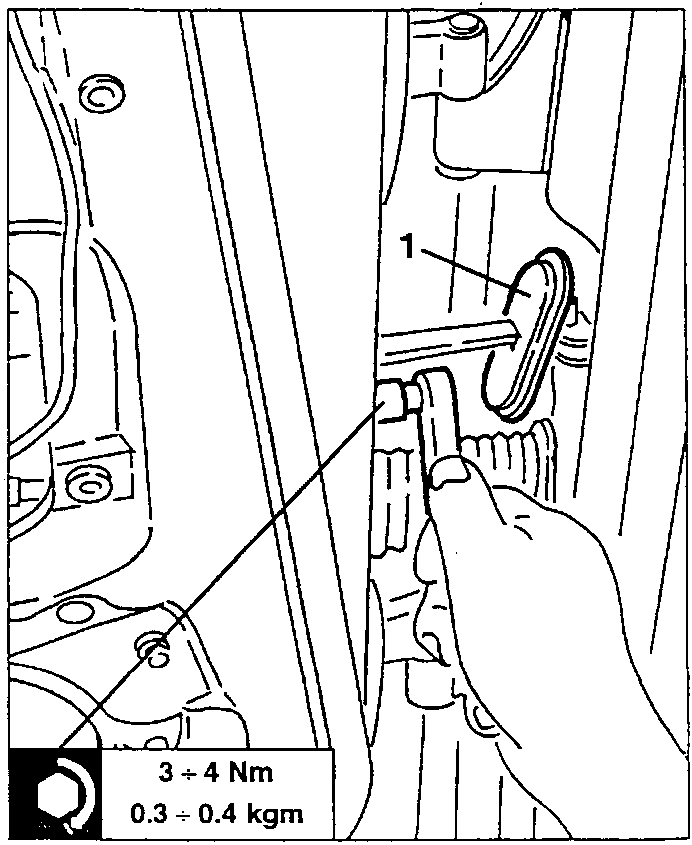

  1. 1. Pull off the rubber protection and loosen the two screws securing the tie-rod.
Diagram showing pulling off rubber protection and loosening tie-rod screws

3 ÷ 4 Nm
0.3 ÷ 0.4 kgm
