Alfa Romeo 145/146 Factory Service Manual (1994-1999)11 · Bodywork
11 · Body & interior

Lock unit

Make
Alfa Romeo
Model
145/146 Factory Service Manual
Year
1994–1999
Section
Doors › Lock unit
BodyworkLock unit

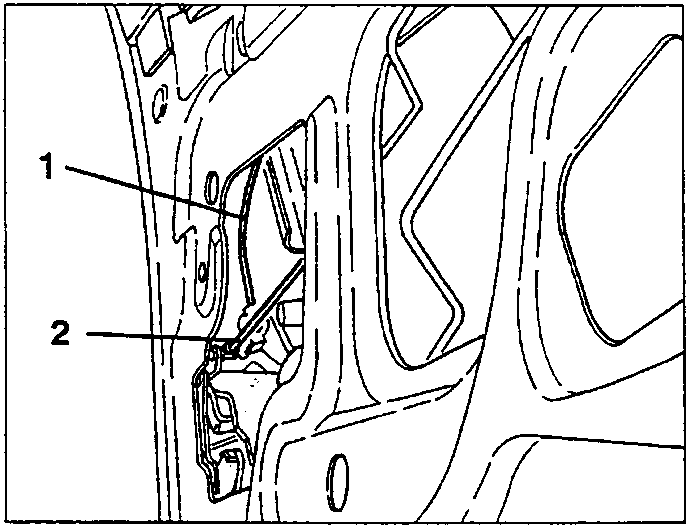

  1. Disconnect the lock device from the external handle tie-rod.
  2. Disconnect the opening block tie-rod from the lock device.
Diagram showing disconnection of lock device from external handle tie-rod and opening block tie-rod.

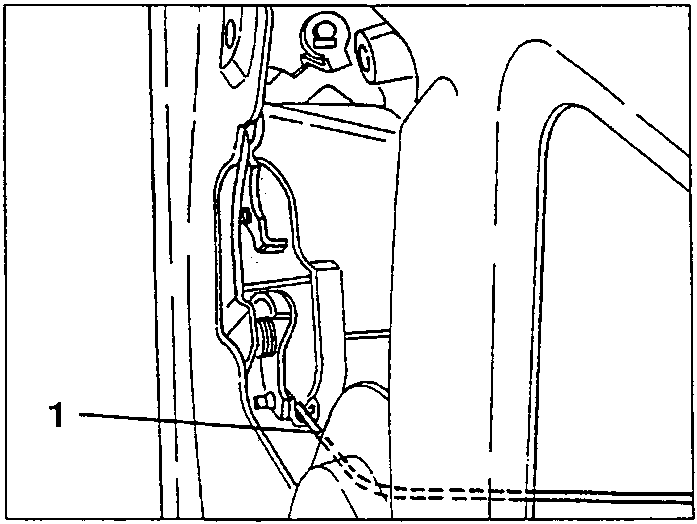

  1. Disconnect the tie-rod of the inner handle from the lock device and back-off the lock device to free the tie-rods.
Diagram showing disconnection of inner handle tie-rod from lock device.

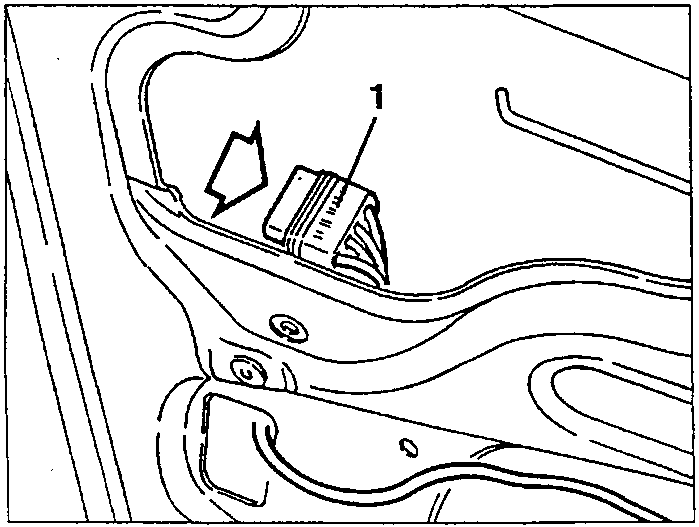

  1. Disconnect the electrical connection from the lock device.
Diagram showing electrical connection disconnection from lock device.

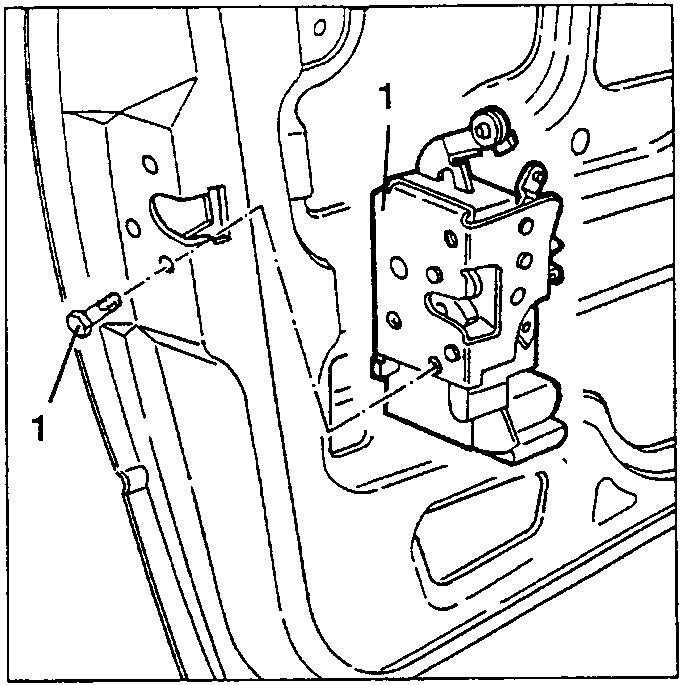

  1. Loosen the three screws securing the lock device and remove it by withdrawing it from inside the door.
Diagram showing removal of lock device by loosening screws and withdrawing it from inside the door.

LOCK UNIT

REMOVAL AND REFITTING

  • Remove the rear window guide pad (see specific paragraph).

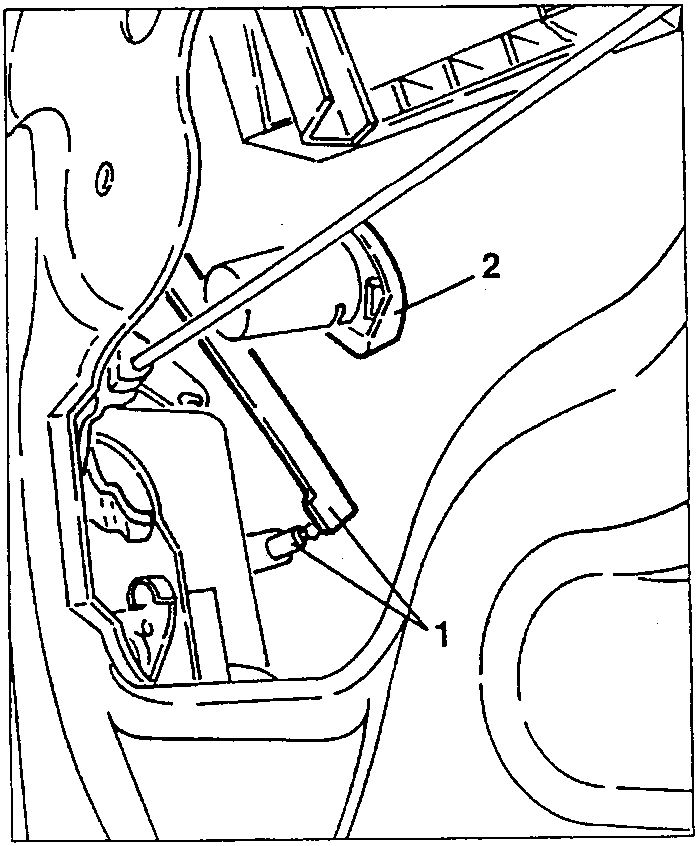

  1. Disconnect the tie-rod connecting the lock unit to the lock device.
  2. Using a screwdriver as a lever withdraw the clip securing the lock unit.
Diagram showing removal of lock unit by disconnecting tie-rod and withdrawing clip.
