WING MIRROR (electrically-operated)

WING MIRROR (electrically-operated)

REMOVAL/REFITTING

• Disconnect the battery (-) terminal.

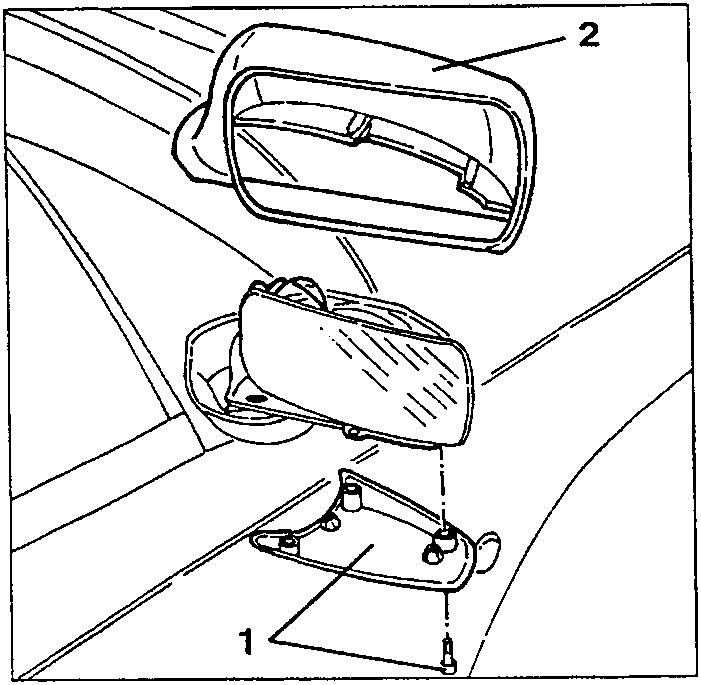

1. slacken the fastening screws and remove the lower trim.
2. With the mirror facing downwards, remove the outer casing.

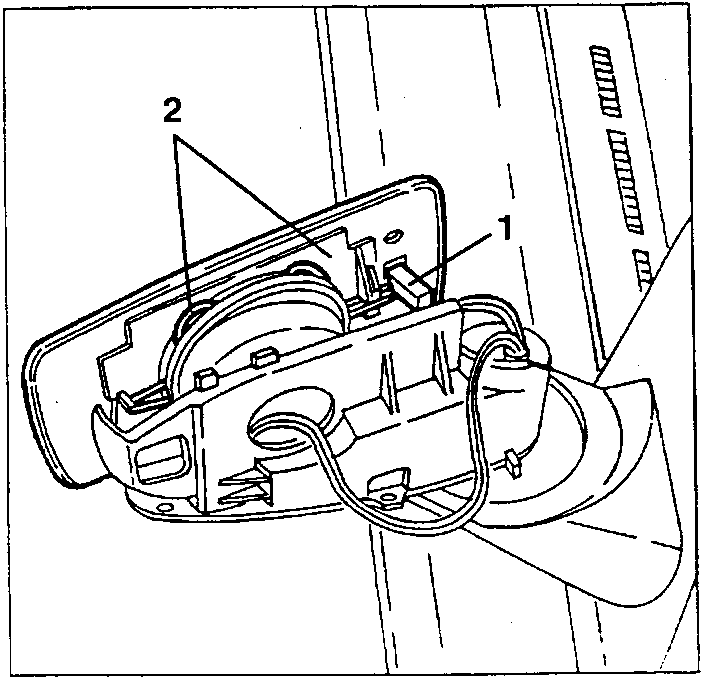

1. Disconnect the electrical connection for the mirror defrosting coil.
2. Release the fastening clip and remove the wing mirror glass.

WING MIRROR TRIM (electrically-operated)

REMOVAL/REFITTING

• Remove the complete wing mirror (see specific paragraph).

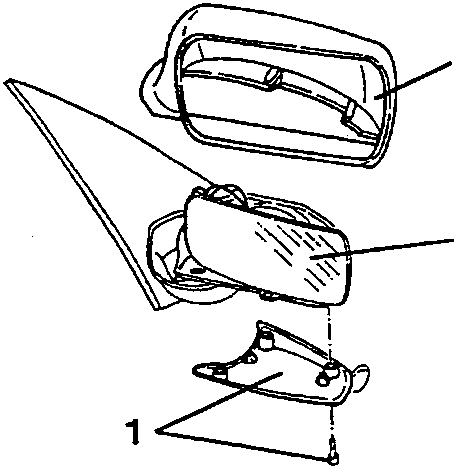

1. On the bench, slacken the fastening screws and remove the lower trim.
2. With the mirror facing downwards, remove the outer casing.
3. Release the fastening clip and remove the wing mirror glass after disconnecting the electric connection.

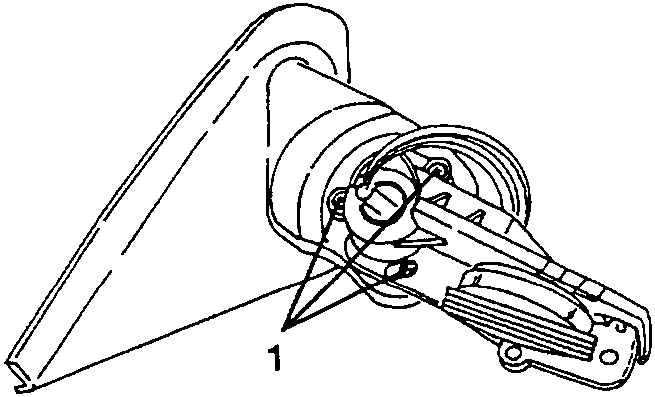

1. Working as shown in the figure, slacken the three screws fastening the wing mirror support.

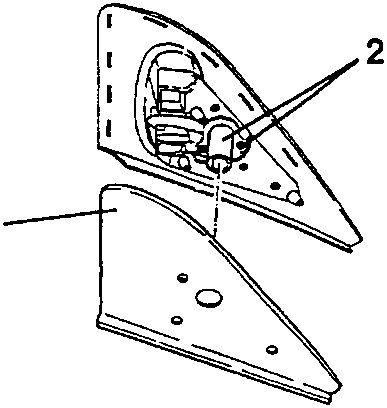

1. Remove the seal.
2. Slacken the two fastening screws and remove the tube housing the electrical connection.
