Outside door handle

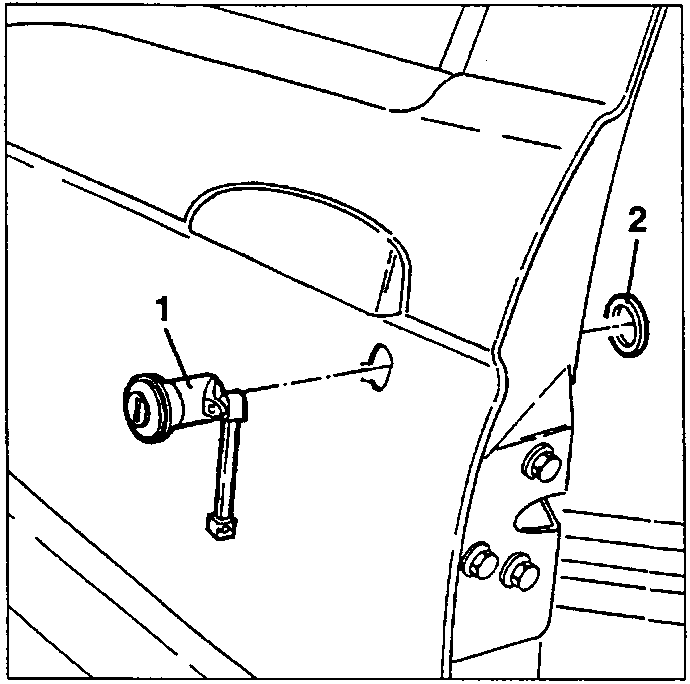

1. Remove the lock unit from the outside of the door.
2. Remove the spring abutting ring from inside the door.

• Working on a bench, of necessary disconnect the tie-rod from the lock unit.

OUTSIDE DOOR HANDLE

REMOVAL AND REFITTING

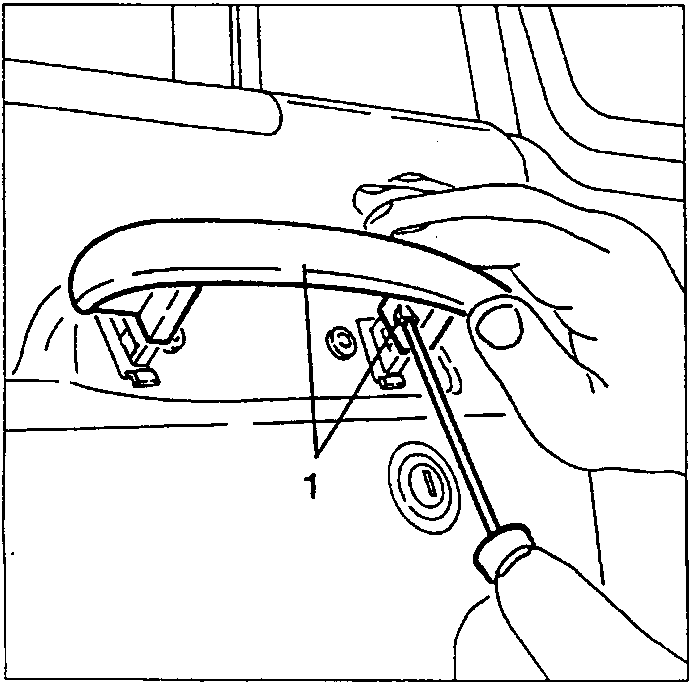

1. Using a screwdriver, free the two clips and remove the outer handle.

• Remove the rear window guide pad (see specific paragraph).

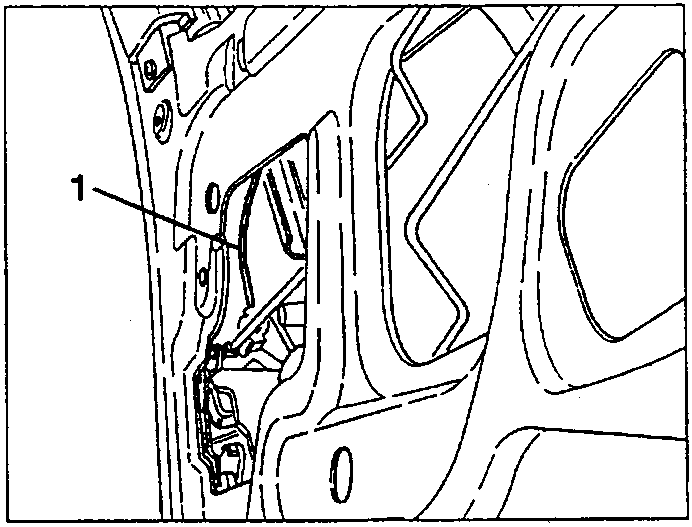

1. Disconnect the outside door handle tie-rod fro the lock device.

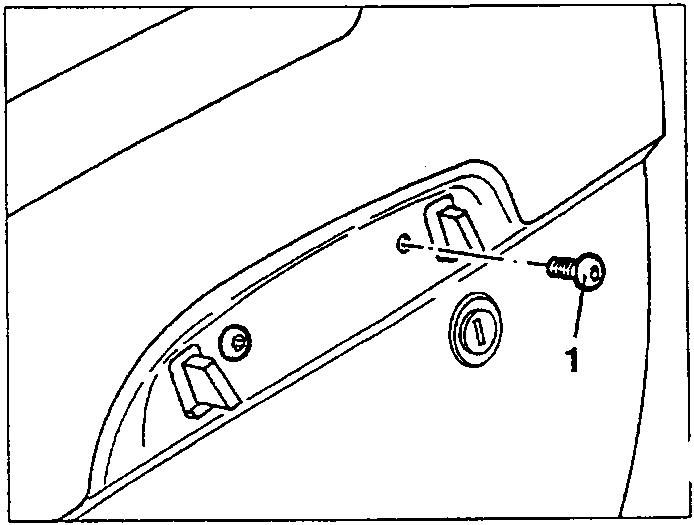

1. Loosen the two outer screws securing the outside door handle device.

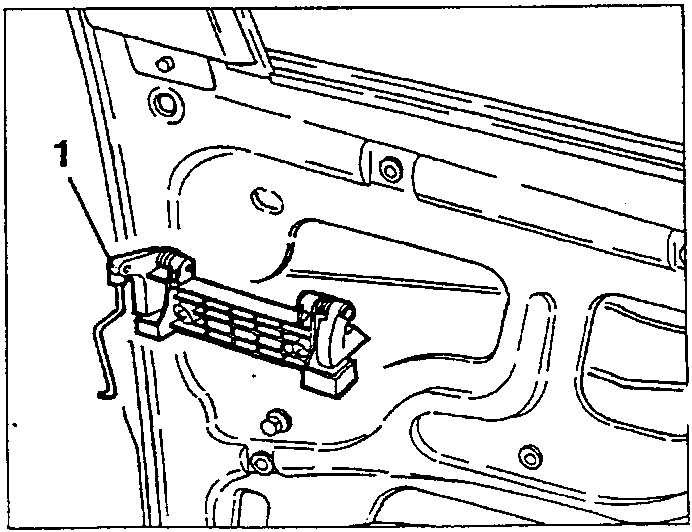

1. Remove the outside door handle device by withdrawing it from inside the door.
