WING MIRROR (manually-operated)

REMOVAL/REFITTING

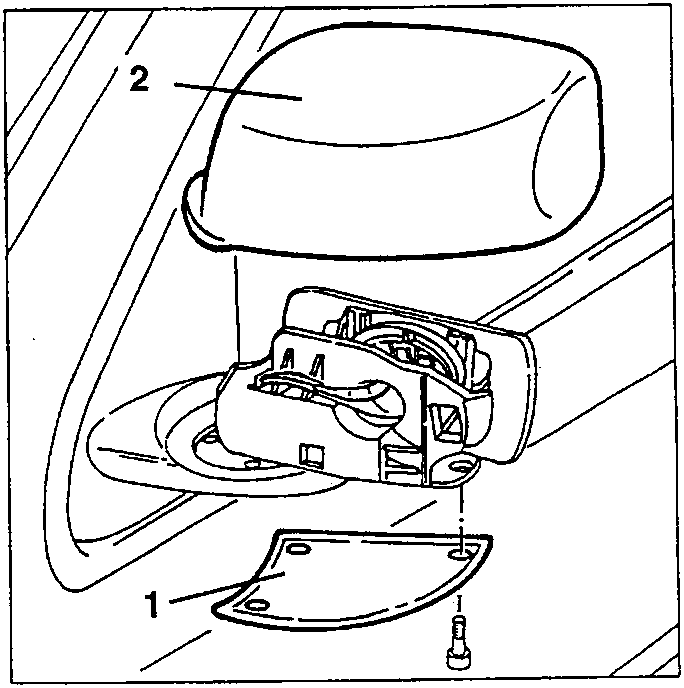

  1. Slacken the fastening screws and remove the lower trim.
  2. With the mirror facing downwards, remove the outer casing.
Wing mirror removal diagram showing outer casing and lower trim

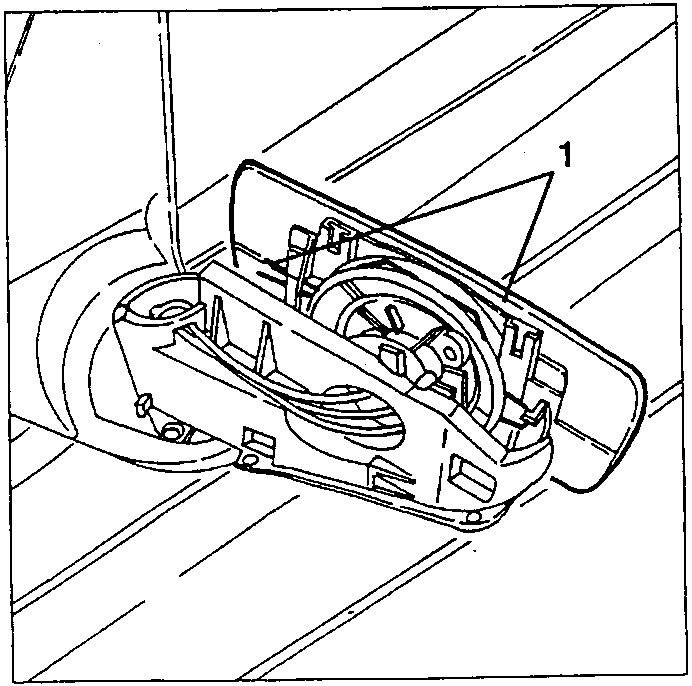

  1. Release the fastening clip and remove the wing mirror glass.
Wing mirror glass removal diagram showing fastening clip

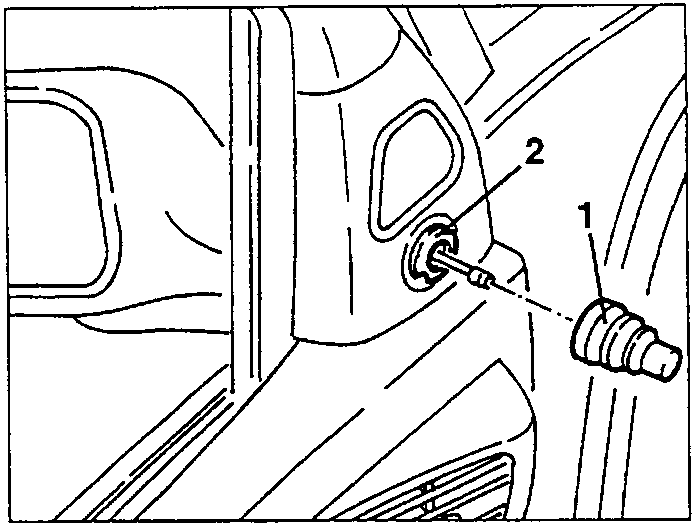

  1. Remove the protective bellows.
  2. Loosen the ring nut securing the moulding.
Door moulding and ring nut removal diagram

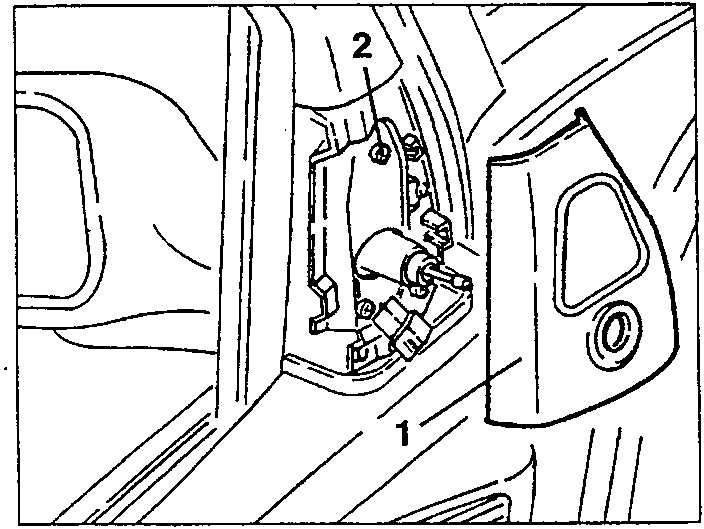

  1. Remove the door mirror inner moulding.
  2. Loosen the three screws securing the door mirror.
Door mirror inner moulding and screw removal diagram

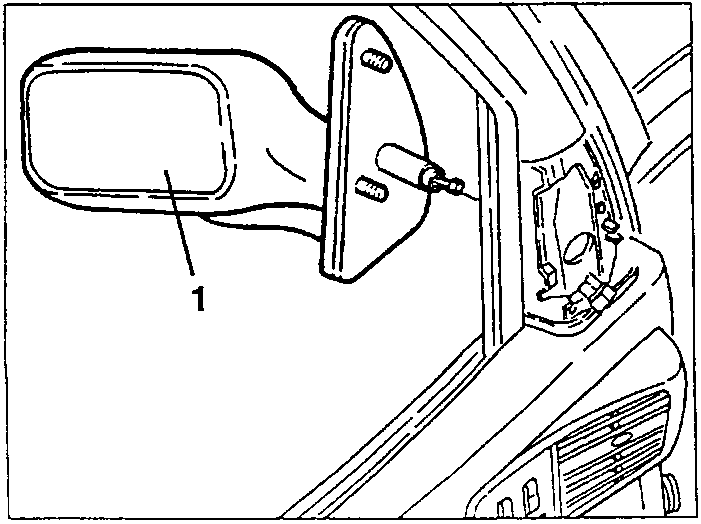

  1. Remove the door mirror and relative gasket.
Door mirror and gasket removal diagram
