WING MIRROR TRIM (manually-operated mirror)

WING MIRROR TRIM (manually-operated mirror)

REMOVAL/REFITTING

• Remove thye complete wing mirror (see specific paragraph).

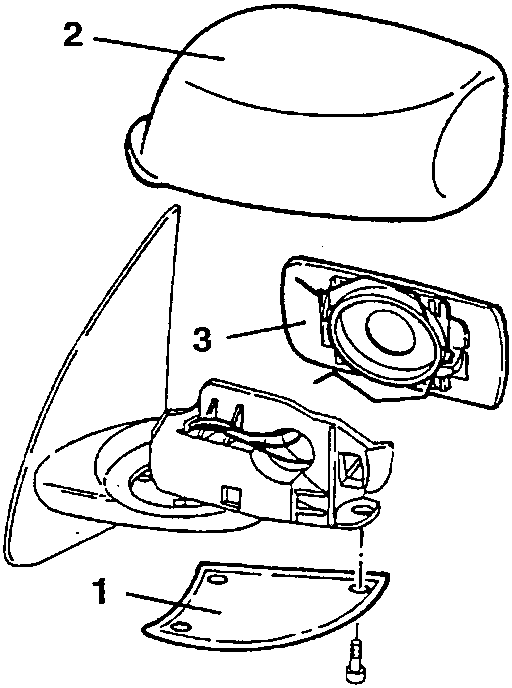

1. On the bench, slacken the fastening screws and remove the lower trim.
2. With the mirror facing downwards, remove the outer casing.
3. Release the fastening clip and remove the wing mirror glass.

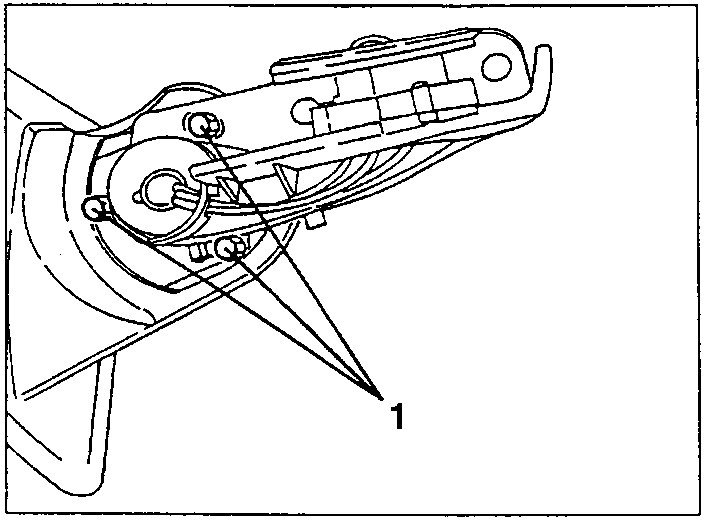

1. Working as shown in the figure, slacken the three screws fastening the wing mirror support.

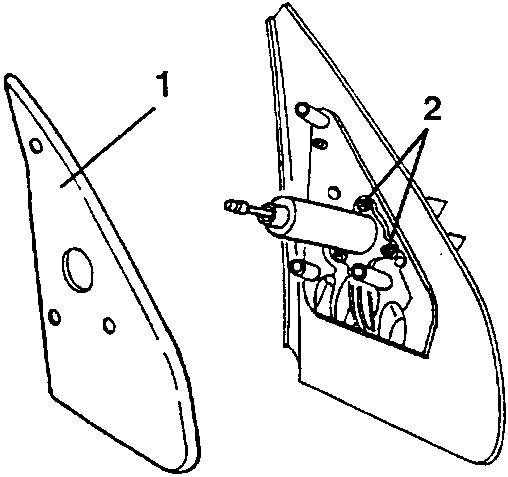

1. Remove the seal.
2. Slacken the three fastening screws and remove the wing mirror adjustment device support.

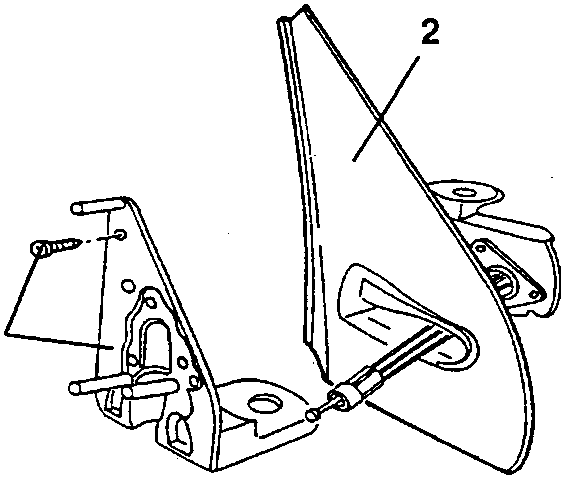

1. Slacken the remianing fastening screws and remove the wing mirror support.
2. Retrieve the wing mirror outer trim.

WING MIRROR (electrically-operated)

REMOVAL/REFITTING

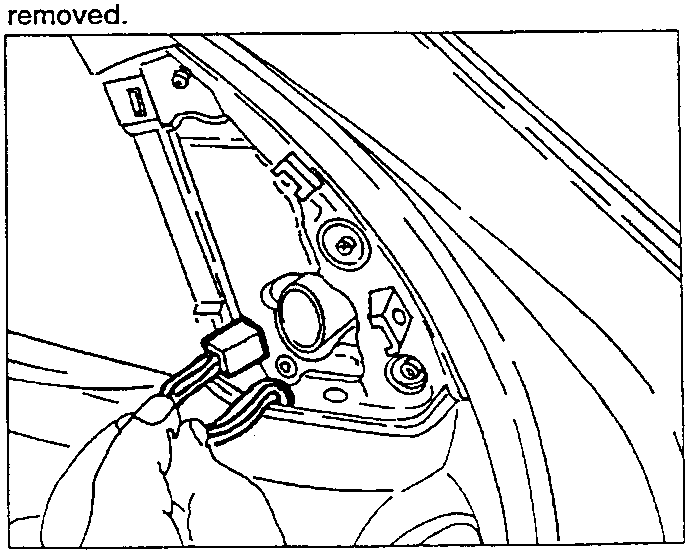

• Proceed as described for removal/refitting the manually-operated wing mirror remembering that instead of removing the yellows and ringnut the electrical connection shown in the figure below needs to be removed.
