WING MIRROR MOTOR (electrically-operated)

WING MIRROR MOTOR (electrically-operated)

REMOVAL/REFITTING

• Proceed as described in the first two steps described in the "WING MIRROR (electrically.operated) paragraph.

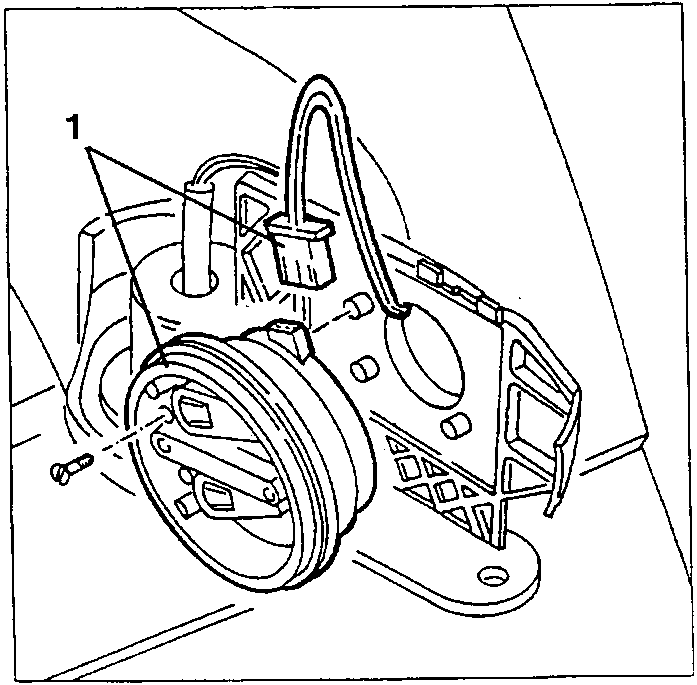

1. Slacken the fastening screws and remove the electric motors, after disconnecting the electrical connection.

TRIM MOULDINGS

REMOVAL AND REFITTING

• Remove the panel (see specific paragraph).

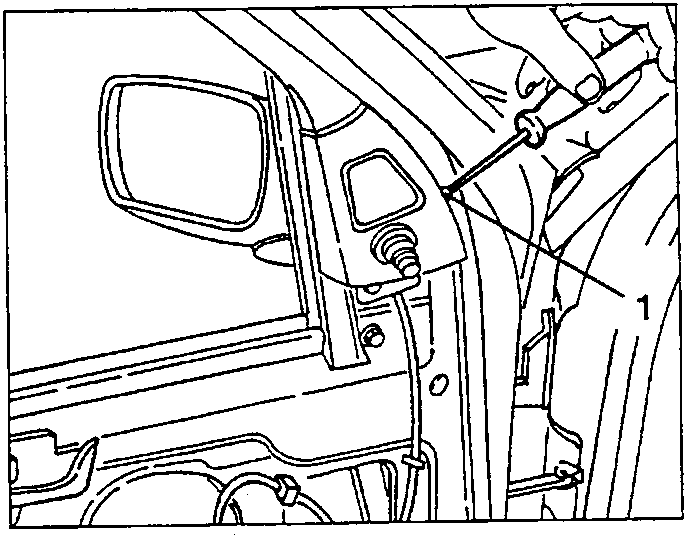

1. Loosen the screw securing the door mirror inner moulding.

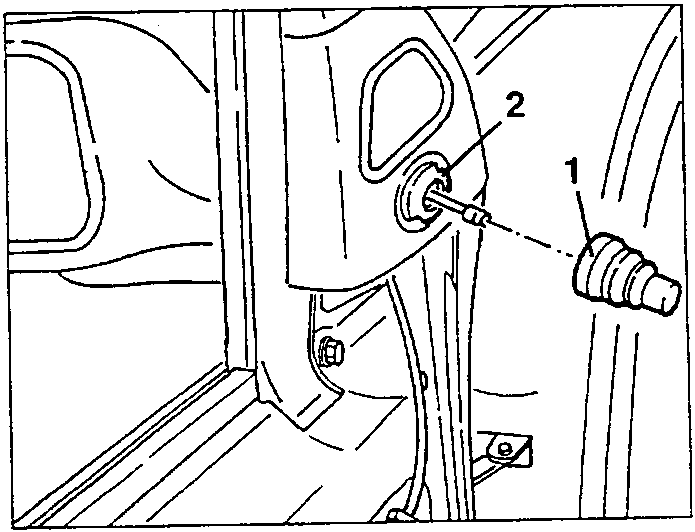

1. Remove the protective bellows.
2. Loosen the ring nut securing the moulding.

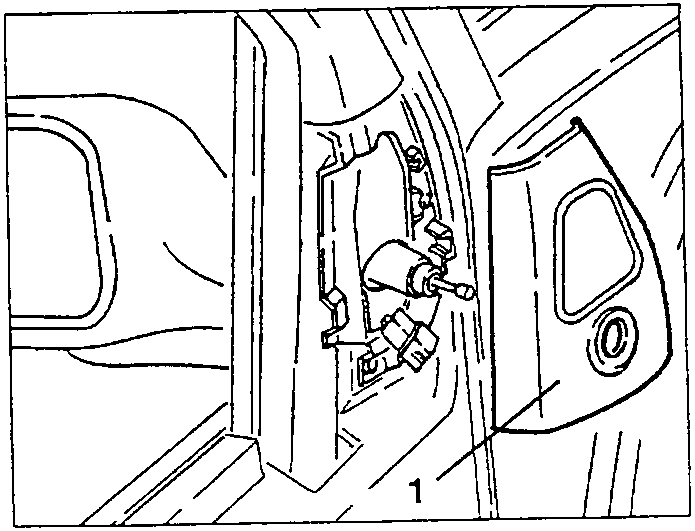

1. Remove the door mirror internal moulding.

1. Slacken the remaining fastening screws and remove the wing mirror support.
2. Retrieve the wing mirror outer trim.
