WINDOW RAISING DEVICE

REMOVAL AND REFITTING

  • Remove the window (see specific paragraph).

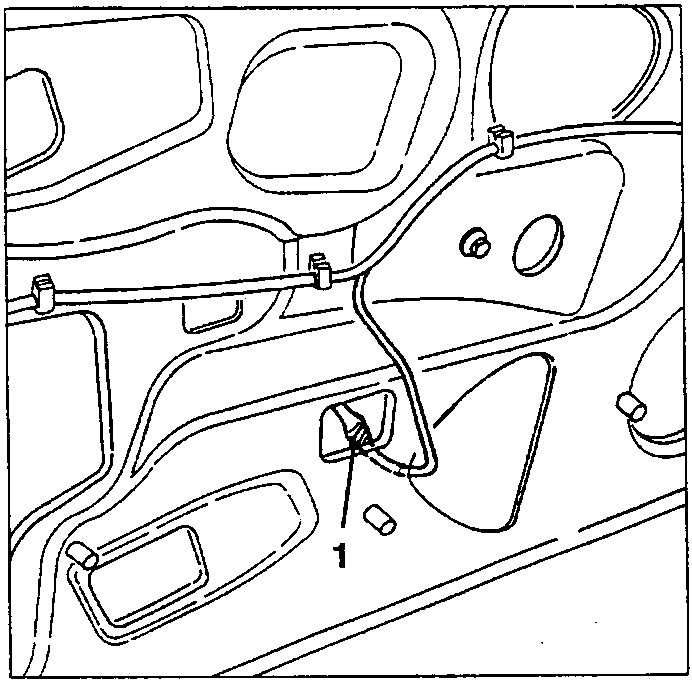

  1. Disconnect the electrical connection from the window raising device.
Diagram showing electrical connection disconnection point marked as 1.

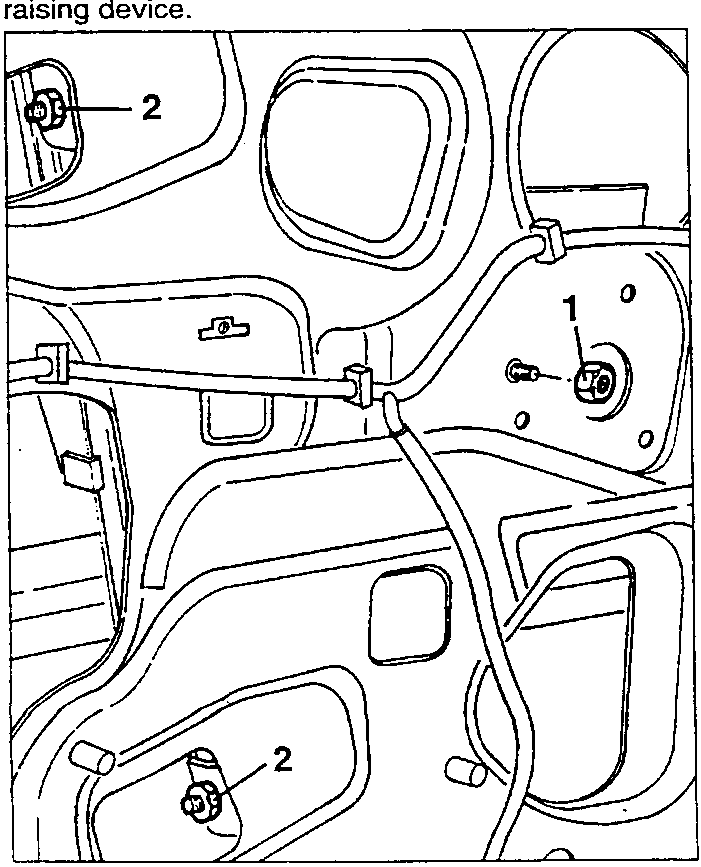

  1. Loosen the front nut securing the window raising device.
  2. Loosen the two rear nuts securing the window raising device.
Diagram showing nuts 1 and 2 for window raising device.

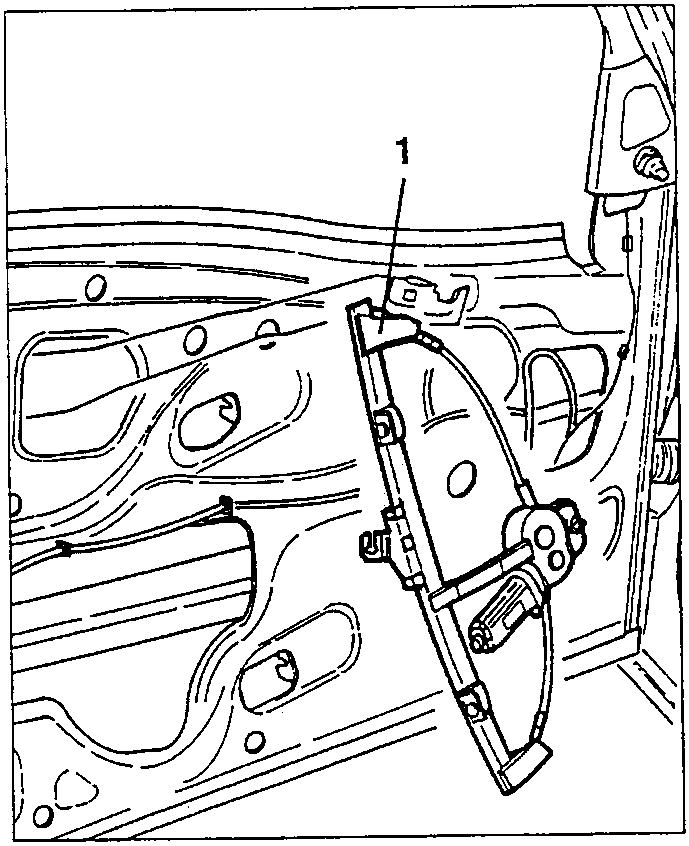

  1. Withdraw and remove the window raising device from inside the door.
Diagram showing window raising device being withdrawn from inside the door, marked as 1.

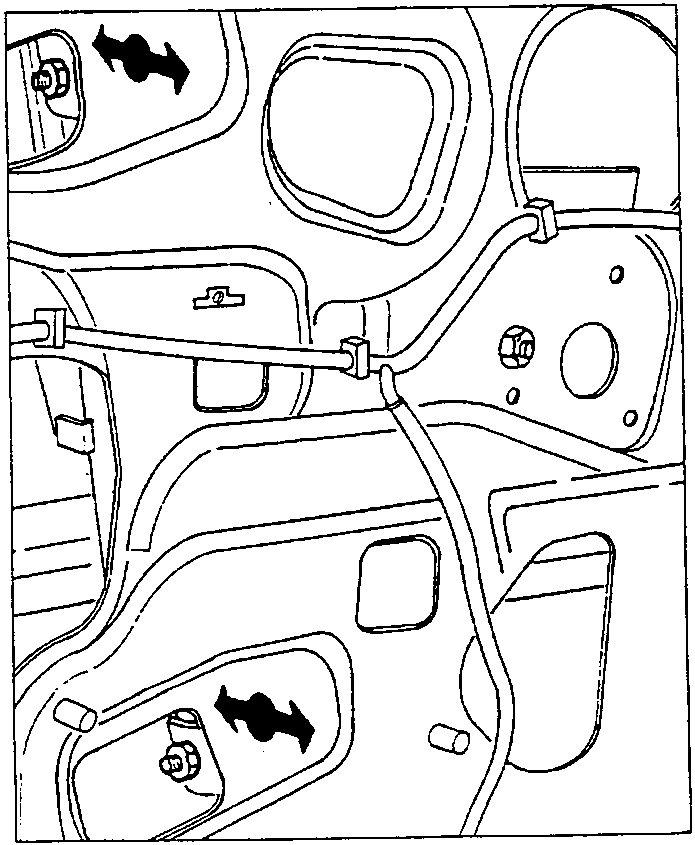

Refit the window raising device by reversing the procedure followed for removal ensuring that its position is adjusted as shown in the diagram.

Diagram showing refitting of window raising device with arrows indicating adjustment direction.
Diagram showing refitting of window raising device with arrows indicating adjustment direction.
