BodyworkInside door handle

INSIDE DOOR HANDLE

REMOVAL AND REFITTING

  • Remove the panel (see specific paragraph).
  1. Loosen the three screws securing the inside door handle.

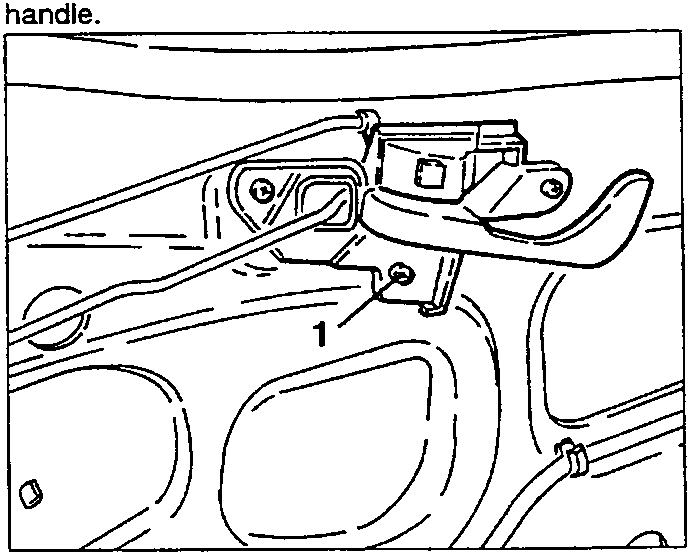

Illustrates door handle assembly attachment point

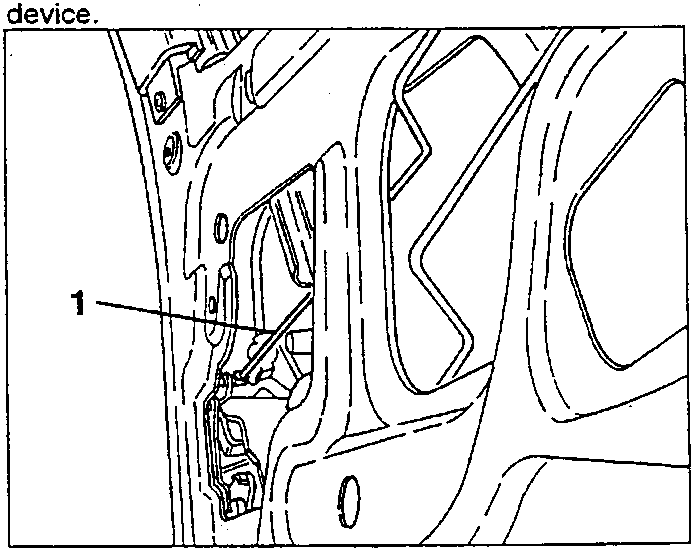

Shows door latch mechanism assembly location

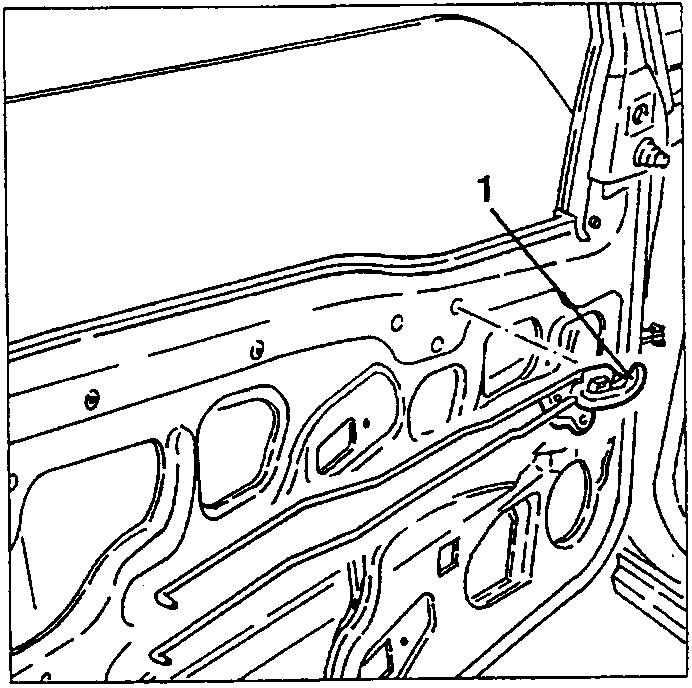

Inside door handle with tie-rods and clamps
  1. If necessary, working on a bench, separate the inside handle from the tie-rods.

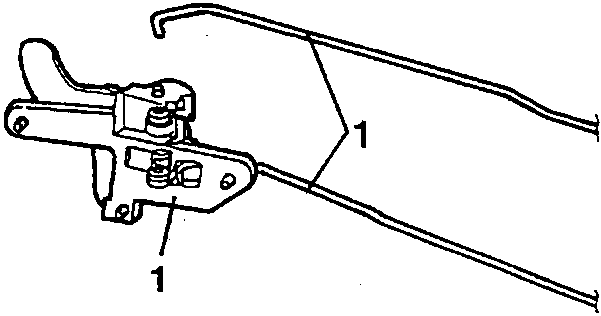

Inside door handle separated from tie-rods
  • Pull off the plastic buttons and partially detach the opaline.
  1. Disconnect the opening unit tie-rod from the lock device.

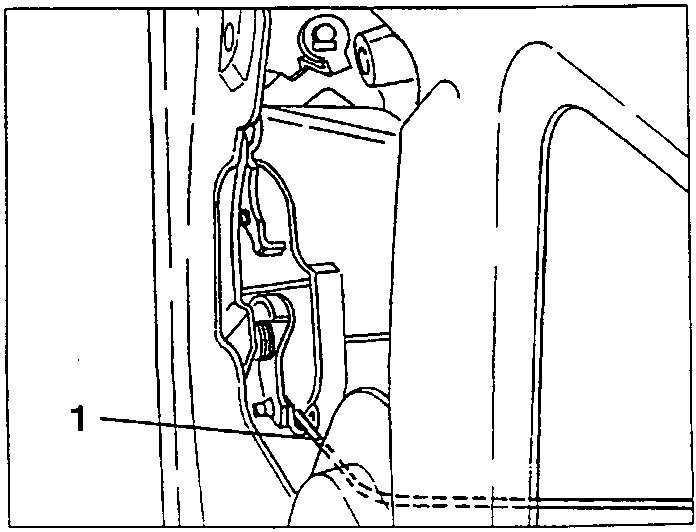

Inside door handle with lock device and tie-rod
  1. Disconnect the inside door handle tie-rod from the lock device.

DOOR MIRROR (manually operated)

REMOVAL AND REFITTING

  1. Loosen the screw securing the door mirror internal moulding.
Door mirror with screw securing internal moulding

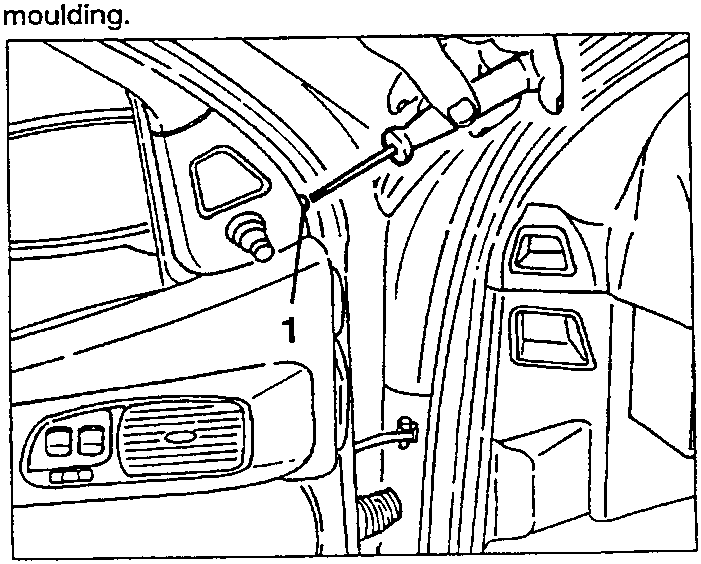

Illustrates removal of door molding using screwdriver
