Disassembly (page 2 of 2)
- Make
- Alfa Romeo
- Model
- 145/146 Factory Service Manual
- Year
- 1994–1999
- Section
- Doors
BodyworkDisassembly · page 2 of 2

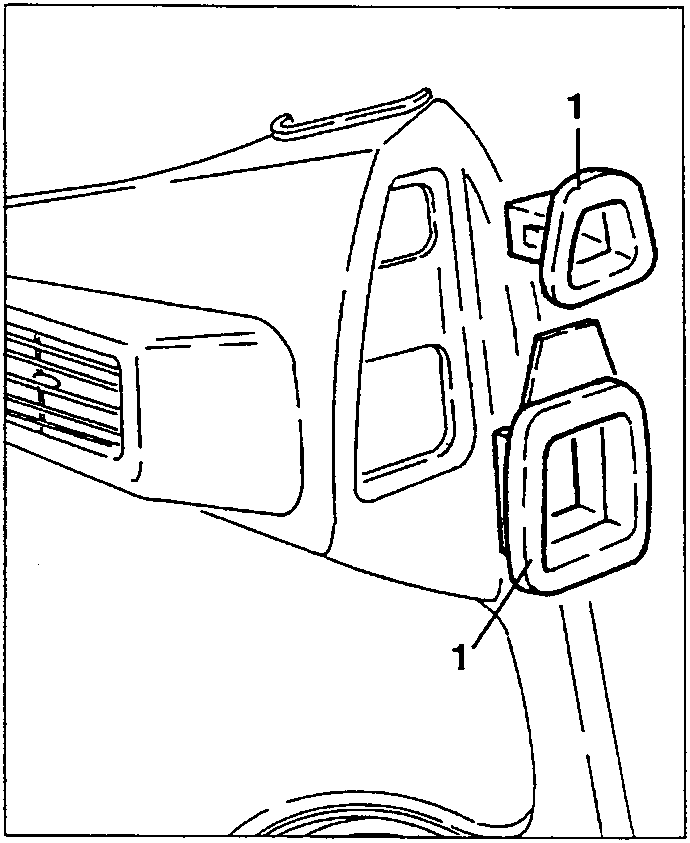

- Remove the two gaskets from the air vents (these can be removed even if the panel is still installed).

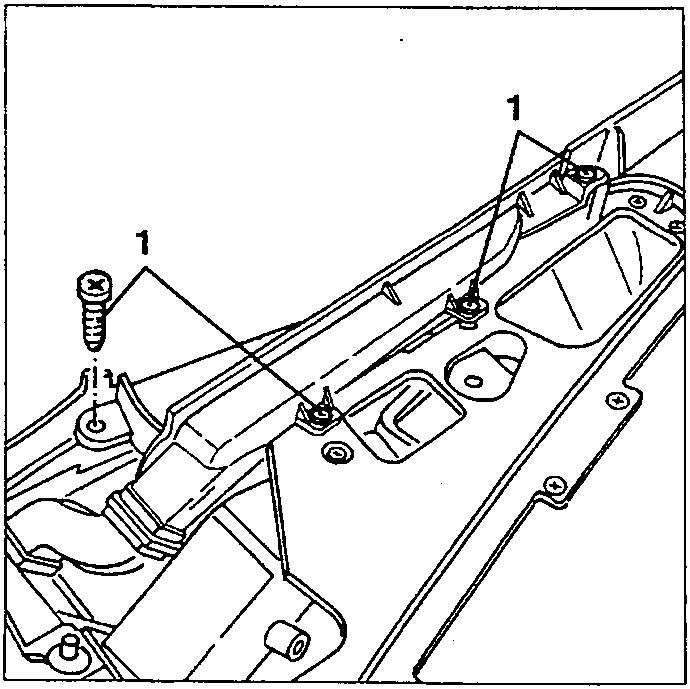

- Loosen the four screws securing the door window defrosting vent.
- Remove the door window defrosting vent.
- If necessary disassemble the door window defrosting vent.

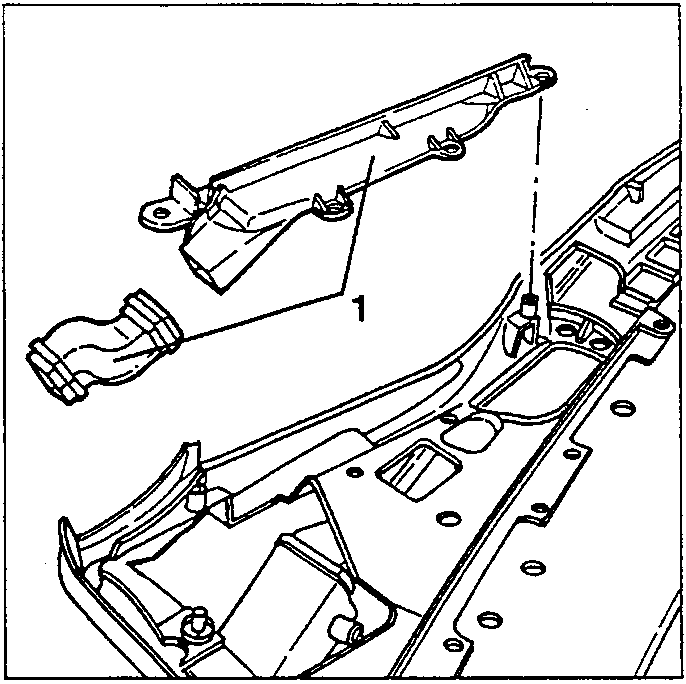

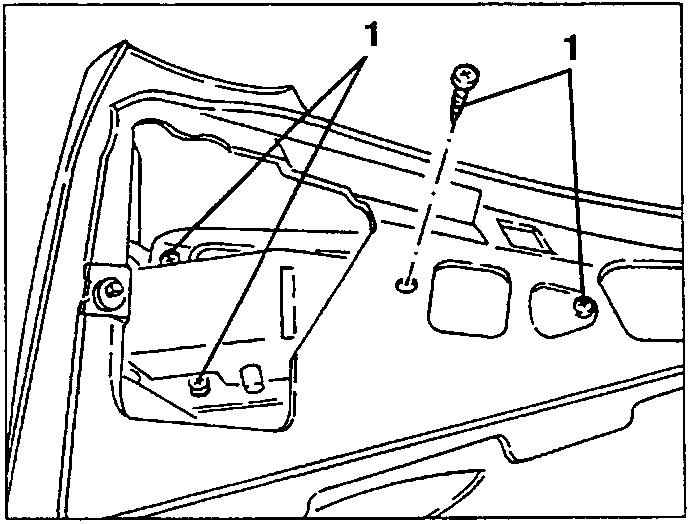

- Loosen the four screws securing driver’s air delivery vent.

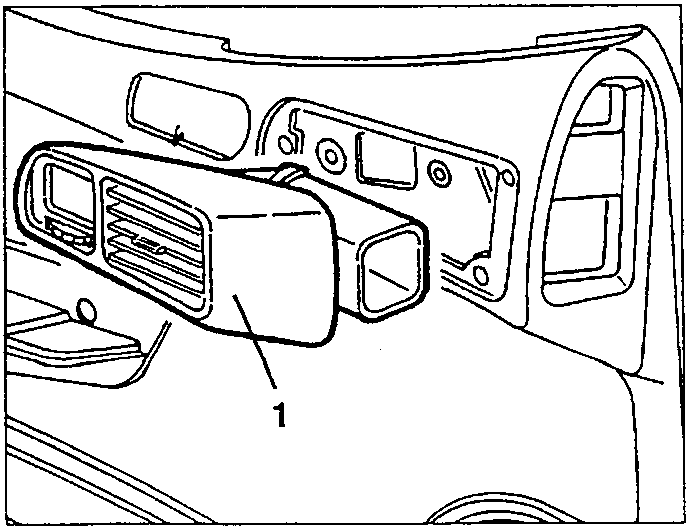

- Remove the driver’s air delivery vent.
