Adjustment (page 2 of 2)

Make

Alfa Romeo

Model

145/146 Factory Service Manual

Year

1994–1999

Section

Doors

BodyworkAdjustment · page 2 of 2

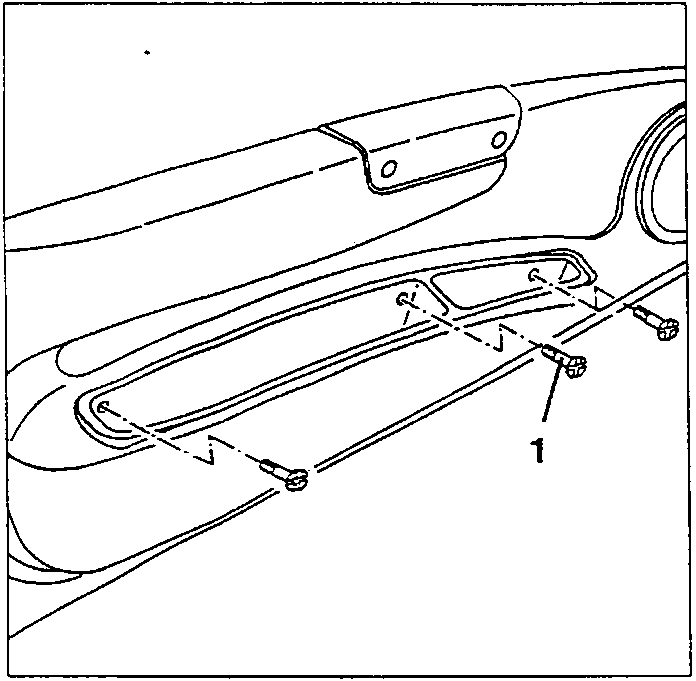

1. Slacken the three upper screws fastening the utility pocket.

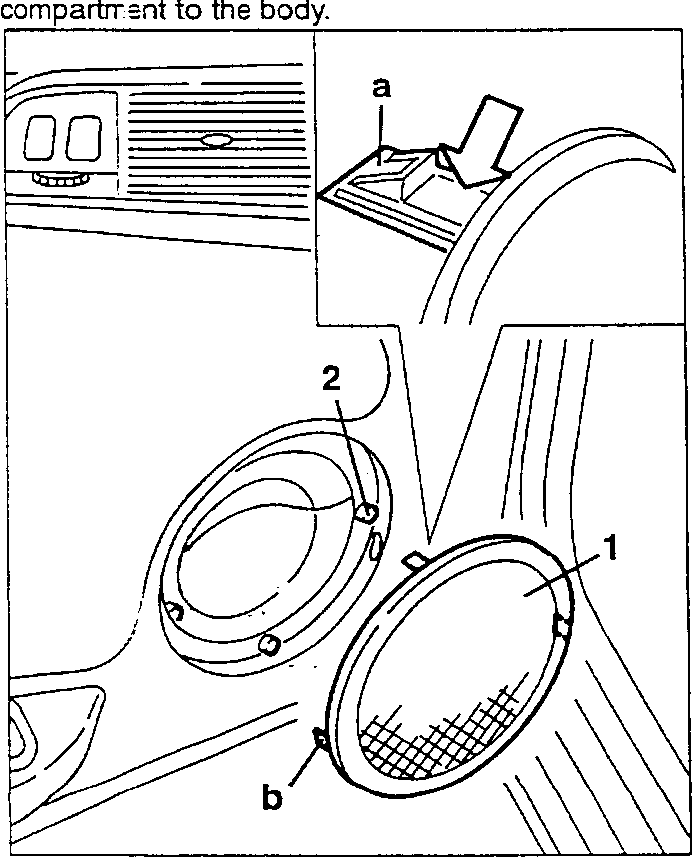

1. Remove the speaker protection grille proceeding as follows:

• using a suitable tool (eg. small, flat screwdriver) press on the upper catch (a) hooking the grille to the door panel;
• proceed as described for the previous step on the rear catch (b);
• remove the grille.

2. Slacken the three screws fastening the speaker compartment to the body.

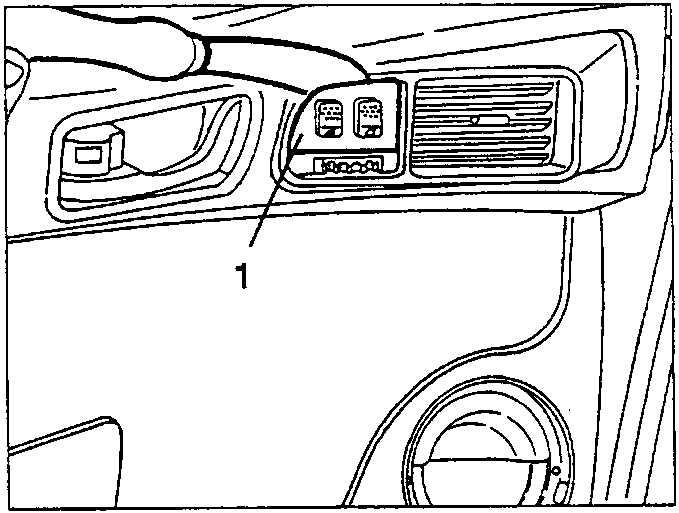

1. Remove the power window switches complete with plate from their housing.

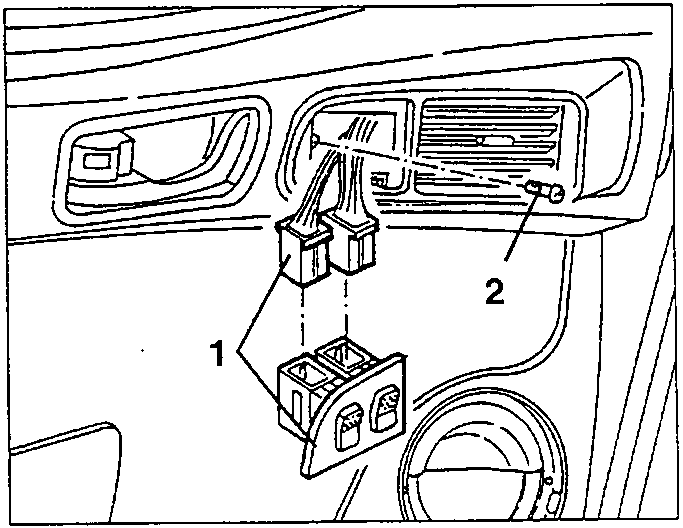

1. Disconnect the electrical connections from the power window switches and remove the switches.
2. Slacken the fastening screw in the switch compartment.

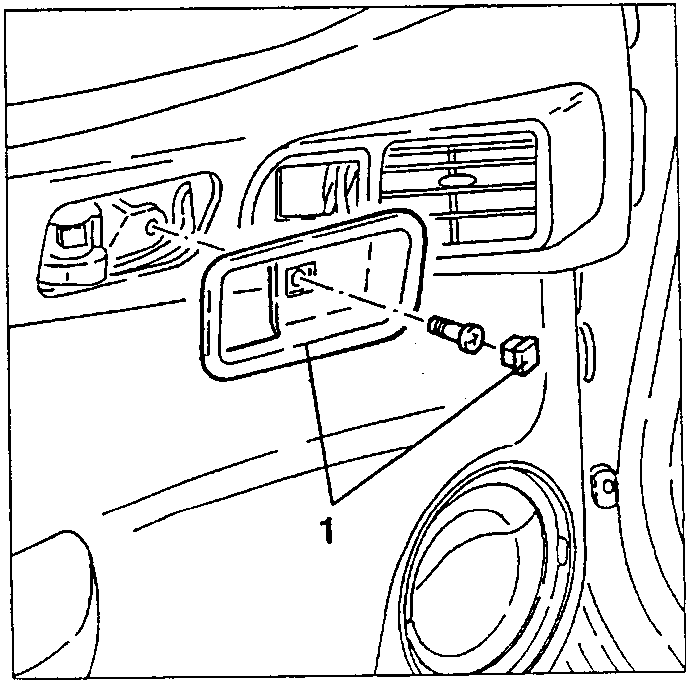

1. Remove the plastic cap, slacken the fastening screw and remove the door opening handle plate.

11 Body & interior
