FRONT BUMPER

REMOVING/REFITTING

  • Disconnect the battery (-) terminal.
  • Remove the radiator grille (see specific paragraph).
  1. Using tool no. 1.823.025.000 release the catches of the centre part from the plastic rivets fastening the side bumper to the gravel guard.
  2. Remove the above-mentioned rivets using the special tool.

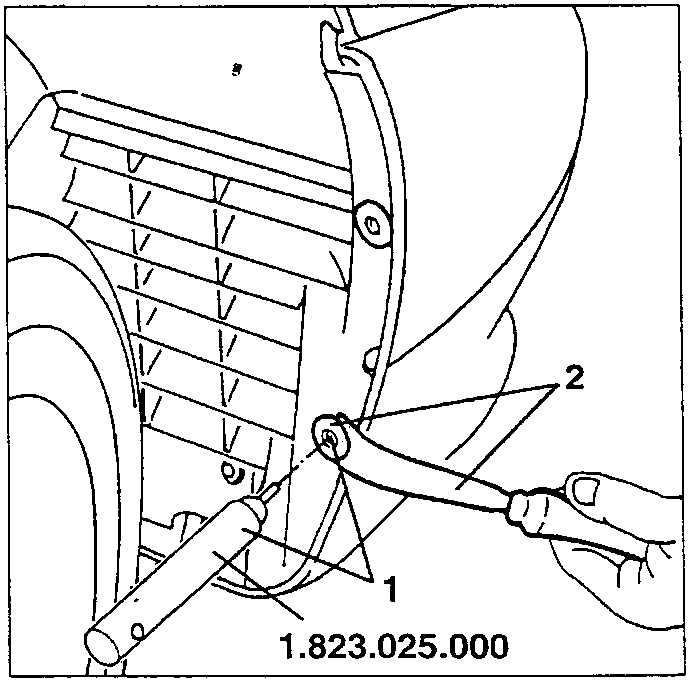

Tool 1.823.025.000 releasing catches on side bumper
  1. Slacken the two upper bumper fastening screws.

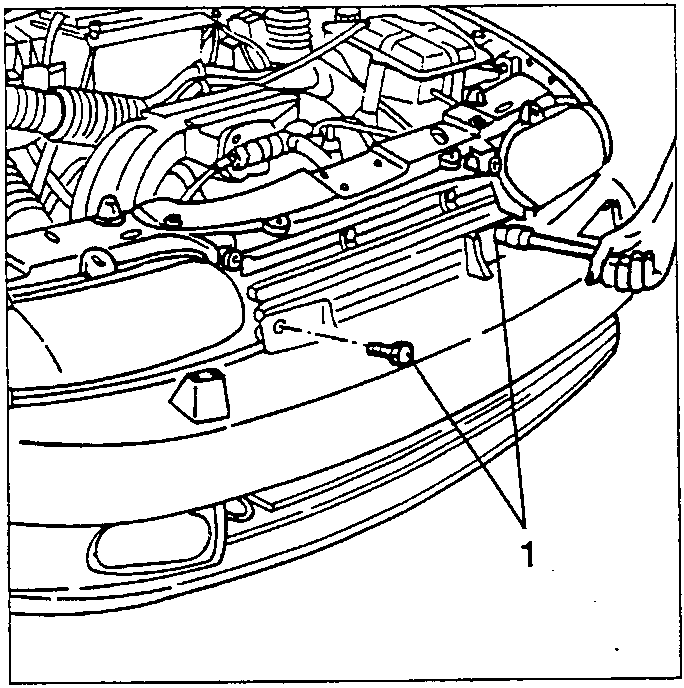

Slacking upper bumper fastening screws
  1. Move away the bumper just enough to disconnect the headlamp washer pipe connection.

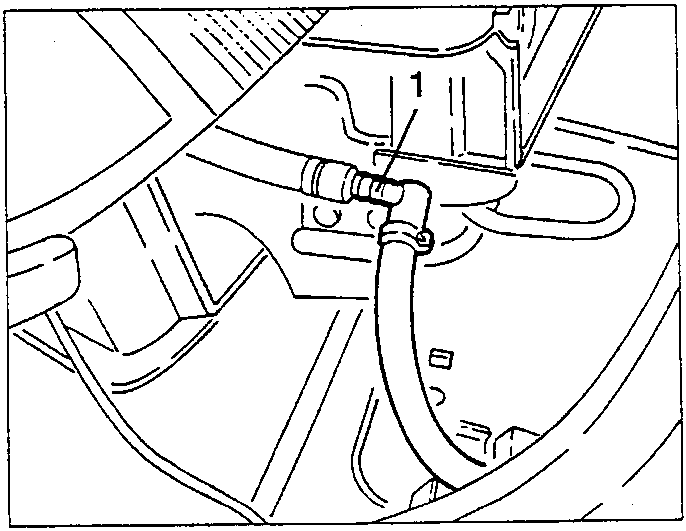

Disconnecting headlamp washer pipe connection
  1. Slacken the two lower fastening screws illustrated.
  2. Slacken the two lower bumper fastening screws illustrated.

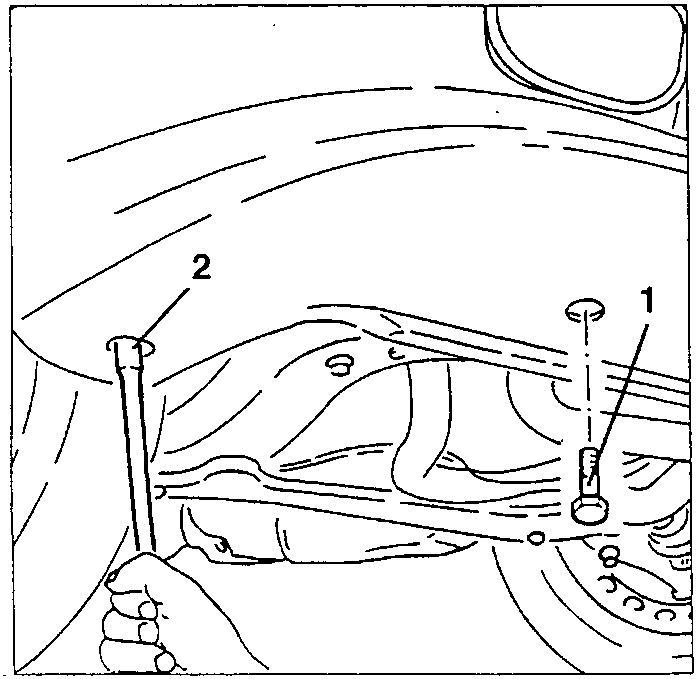

Slacking lower bumper fastening screws
  1. Disconnect the electrical connections from the fog lamps.

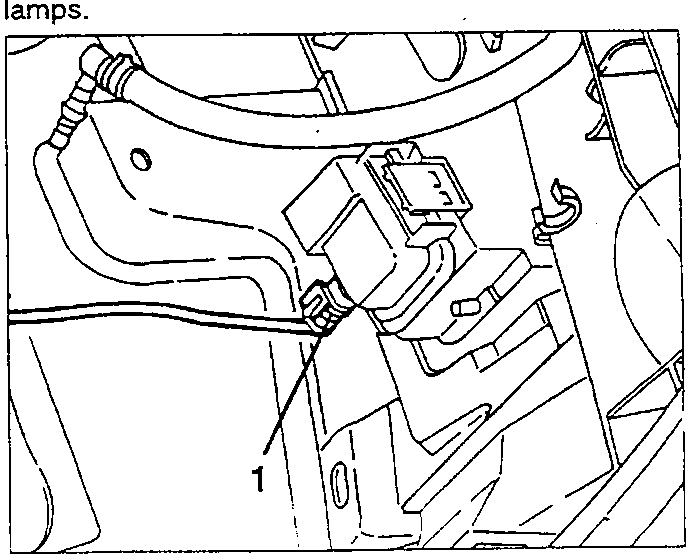

Disconnecting electrical connections from fog lamps
