DASHBOARD

REMOVING/REFITTING

  • Disconnect the battery (-) terminal.
  • Remove the centre console (see specific paragraph).
  • Remove the fusebox cover trim (see specific paragraph).
  • Remove the climate control system controls module (see GROUP 50).
  1. Slacken the two fastening screws, prise the plastic rivet, then remove the foot level air vent trims.

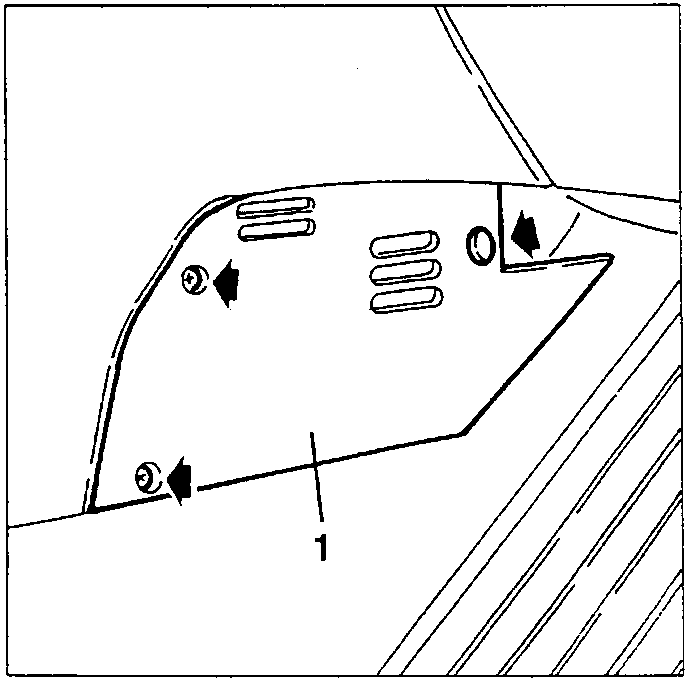

Foot level air vent trims with arrows indicating removal
  • Slacken the screws fastening the lower part of the dashboard.

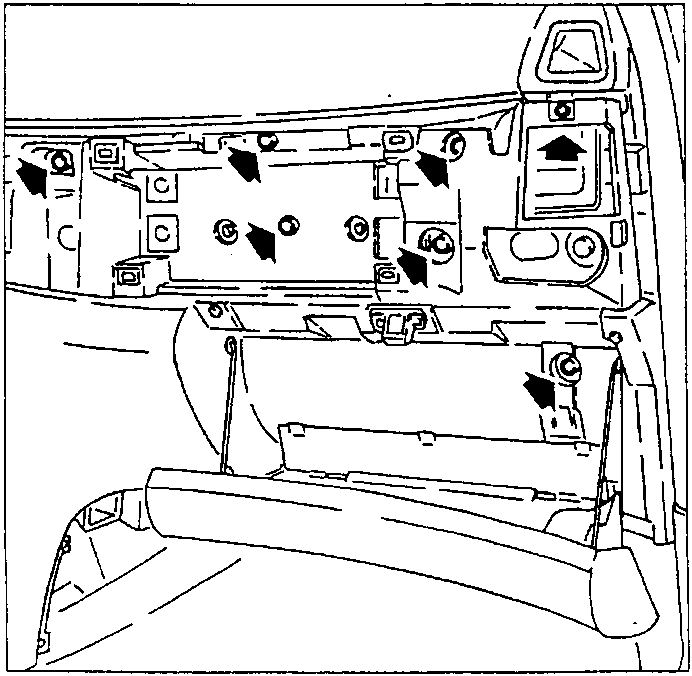

Lower part of dashboard with screws and clips shown

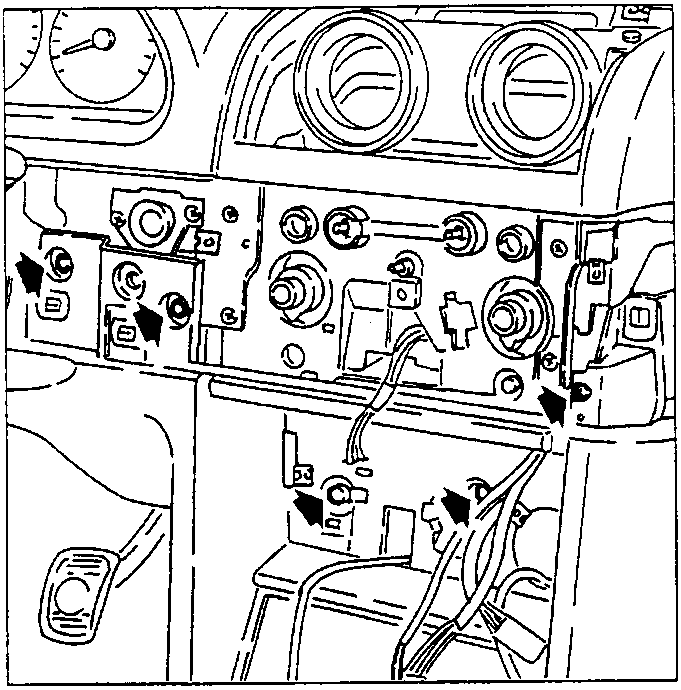

Dashboard control panel with various knobs and switches
  1. Remove the lower part of the dashboard.

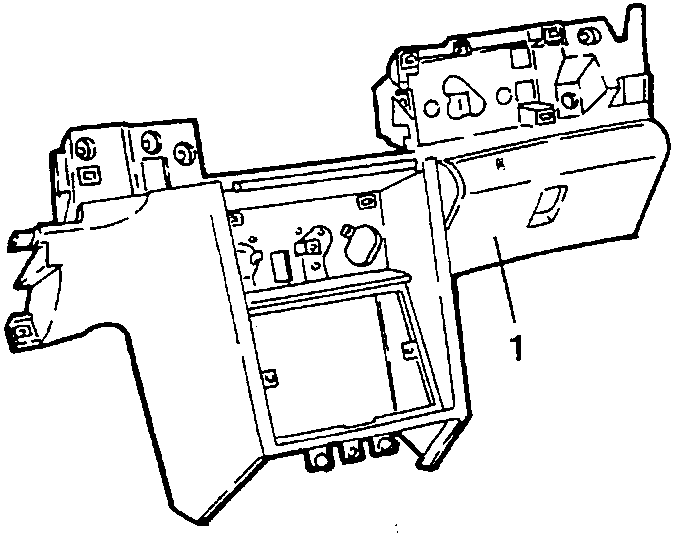

Dashboard lower part disassembled showing internal components

Complete removal of the dashboard (upper part), proceeding as described in the procedure "DASHBOARD - Removing/Refitting" for the previous versions.
