BodyworkSun visors
  • For vehicles with air conditioning remove the vents delivering air to the floor of the rear part of the passenger compartment (see specific paragraph).

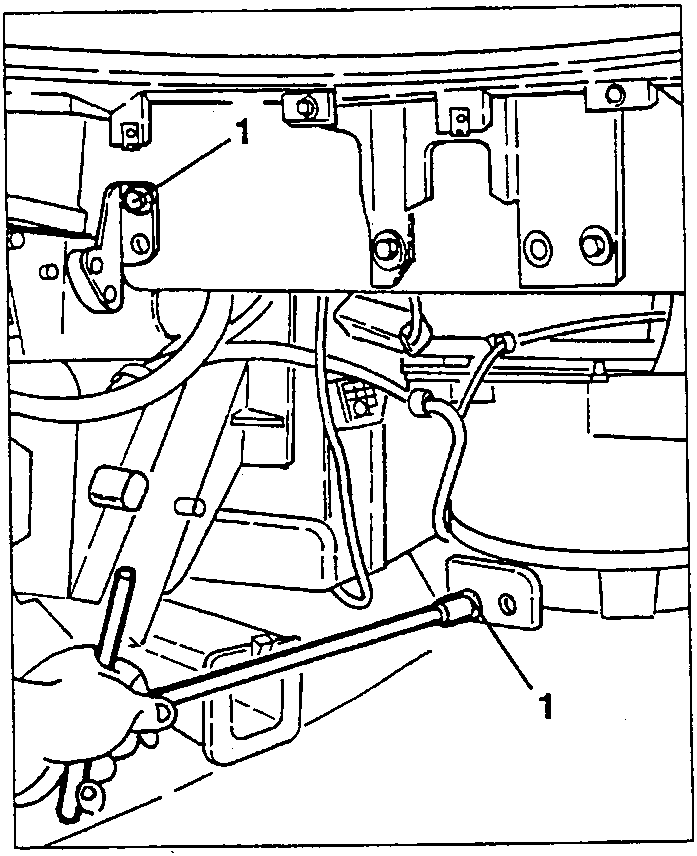

  1. Loosen of the four screws securing the heating-ventilation group right side.
Diagram showing loosening screws on the right side of the heating-ventilation group

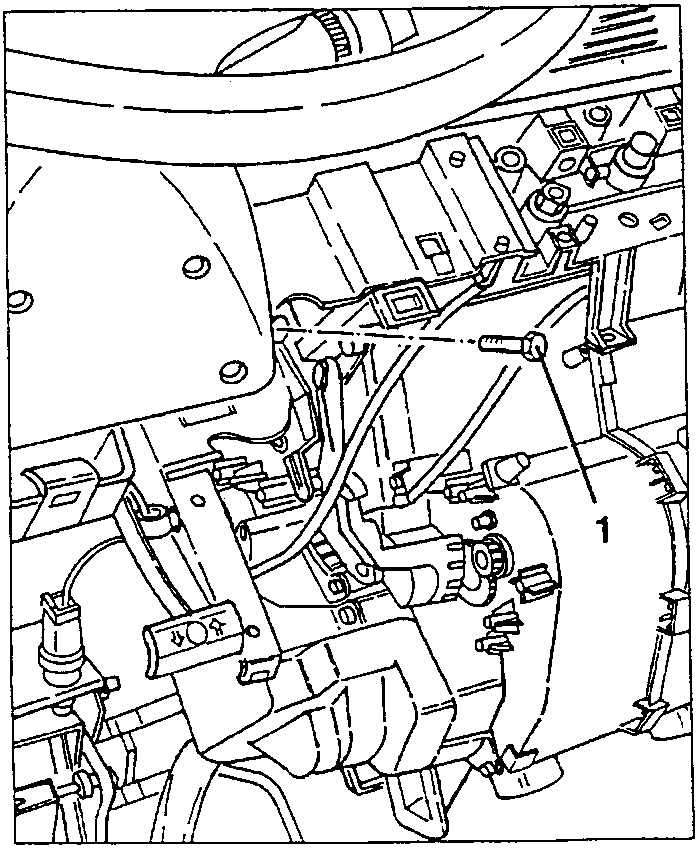

  1. Loosen the screw securing the heating-ventilation group left side.
Diagram showing loosening a screw on the left side of the heating-ventilation group

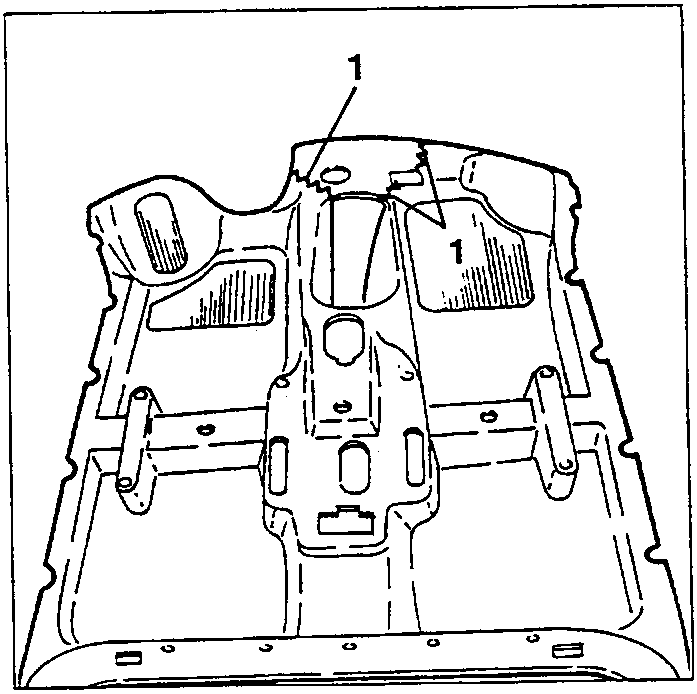

  1. Cut the front part of the floor trim as shown in the diagram and then remove it together with the cut part from behind the heating- ventilation group.
Diagram showing cutting the front part of the floor trim

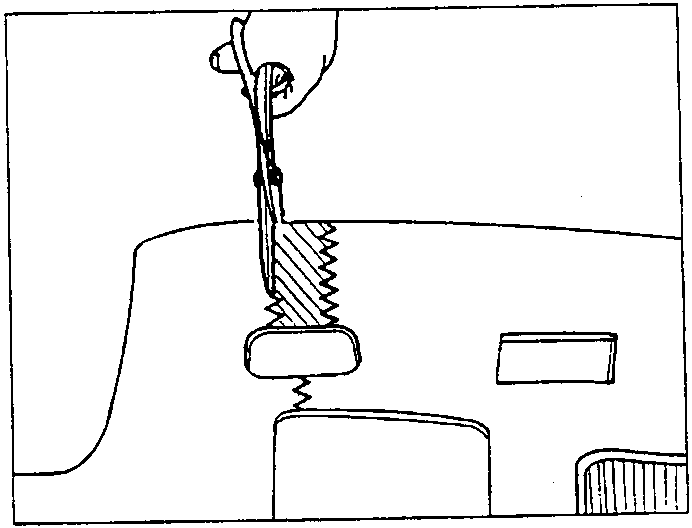

Cut the new floor trim as shown in the diagram and fit it on behind the heating-ventilation group and then refit by reversing the procedure followed for removal.

Diagram showing fitting the new floor trim

SUN VISORS

REMOVAL/REFITTING

  • Tip the sun visor down to gain access to the relative screws.
Diagram showing tipping down the sun visor to access screws
