BONNET TRIM

REMOVAL/REFITTING

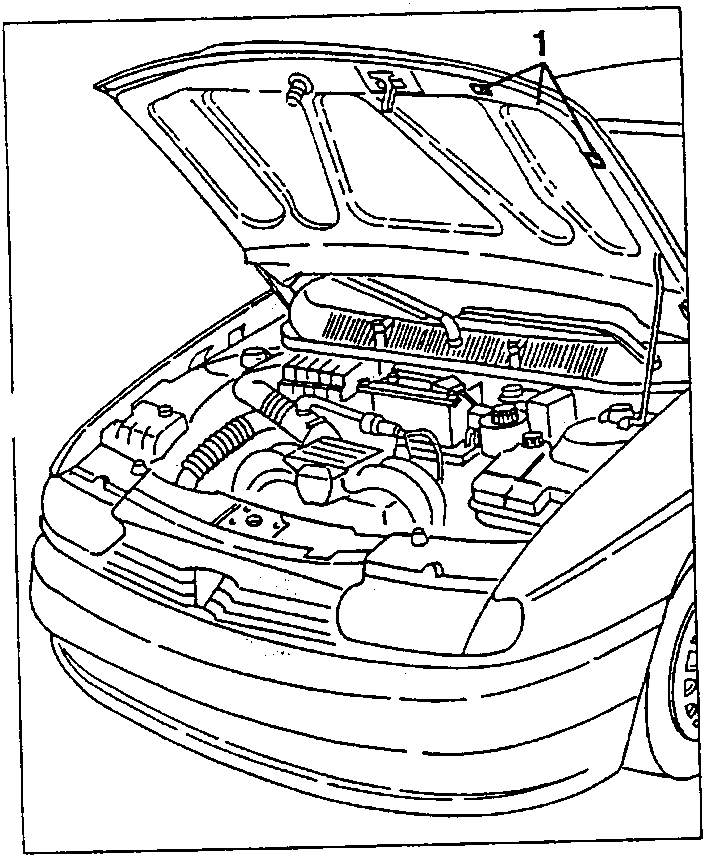

  1. Working from the engine bay, pull off the plastic buttons and remove the bonnet trim.
Bonnet trim removal with hood open showing plastic button attachments

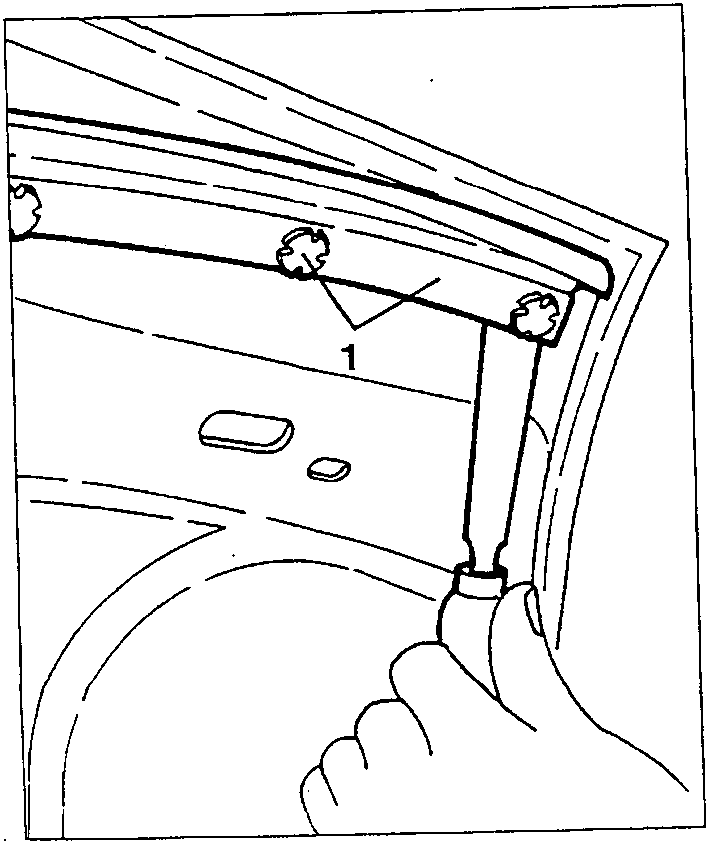

  1. If necessary, pull off the plastic buttons and remove the front seal strip.
Hand using tool to remove plastic button from door trim

HAT SHELF

REMOVAL/REFITTING

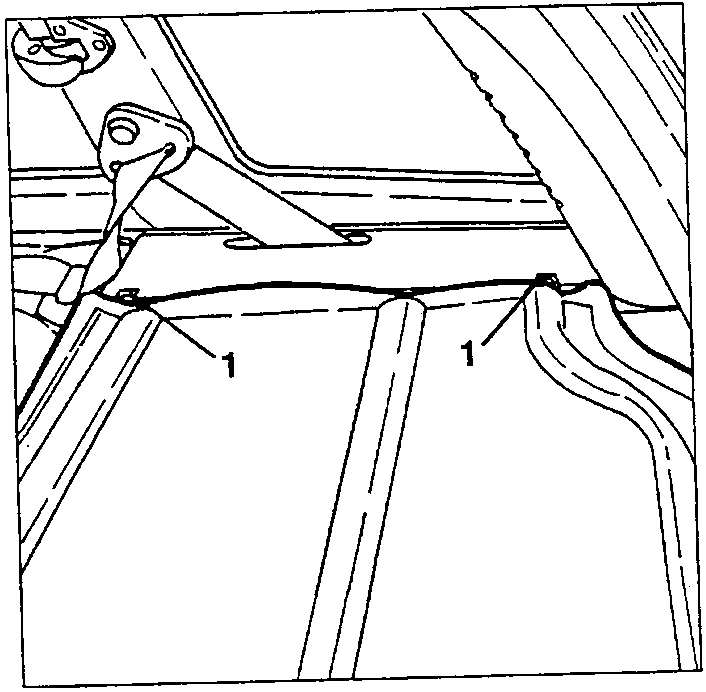

  1. Working from the luggage compartment, free the two side hatshelf attachments, wind it up and remove it.
Hatshelf removal showing side attachments

LUGGAGE COMPARTMENT LOWER TRIM

REMOVAL/REFITTING

  • Tip the rear seat back-rest forward.

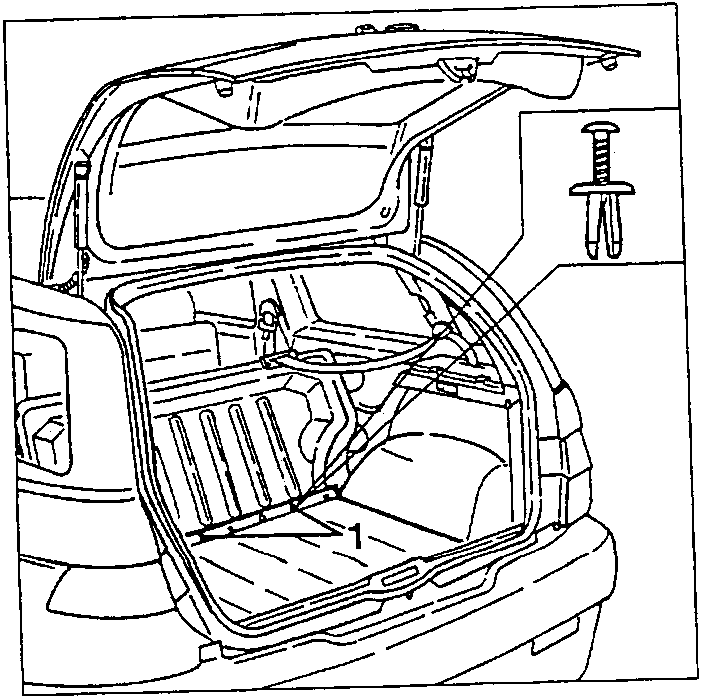

  1. Loosen the plastic screws and pull off the buttons the luggage compartment lower trim.
Luggage compartment lower trim removal with rear seat tipped forward
